Coolant pipe 865817

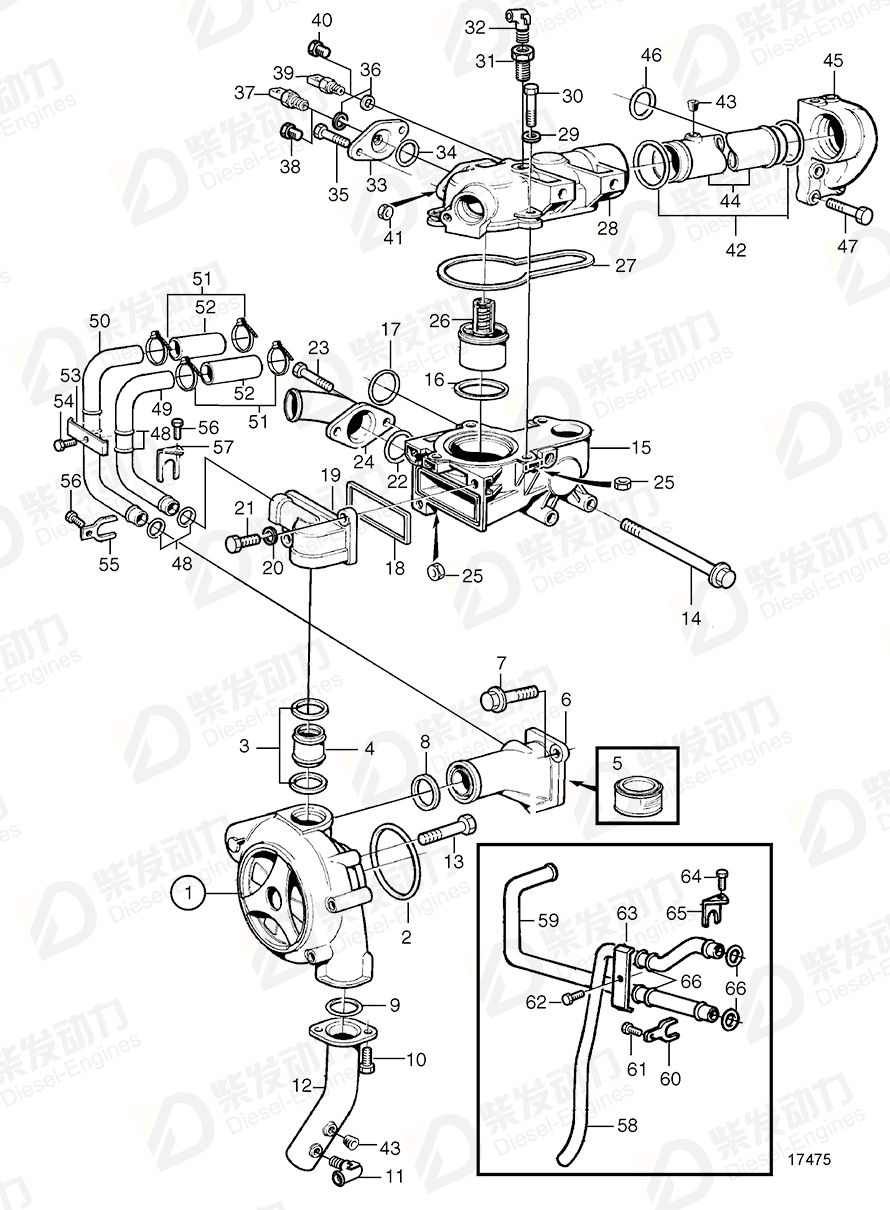

| No. | Part Name | Part Number | Qty | Description |
| 1 | Coolant pump | 3183908 | 1 | |
| 1 | Coolant pump | 3803839 | 1 | |
| 1 | Coolant pump | 20575653 | 1 | |
| 2 | O-ring | 967344 | 1 | |
| 3 | Sealing ring | 469982 | 2 | |
| 4 | Pipe | 465886 | 1 | |
| 5 | Sealant | 1161231 | 1 | 304ml |
| 5 | Sealant | 1161277 | 1 | 20g |
| 6 | Spacer | 465851 | 1 | |
| 7 | Flange screw | 945444 | 2 | |
| 8 | Sealing ring | 471629 | 1 | |
| 9 | O-ring | 925092 | 1 | |
| 10 | Flange screw | 945444 | 2 | |
| 11 | Elbow nipple | 942649 | 1 | |
| 12 | Coolant pipe | 848143 | 1 | |
| 12 | Coolant pipe | 849645 | 1 | Is used when crankshaft mounted fan is mounted. |
| 13 | Flange screw | 965190 | 4 | |
| 14 | Flange screw | 965189 | 3 | |
| 15 | Thermostat housing | 876628 | 1 | Anodic treatment., (471780) |
| 16 | Sealing ring | 1544710 | 1 | |
| 17 | O-ring | 477059 | 1 | |
| 18 | Sealing ring | 471816 | 1 | |
| 19 | Housing | 471822 | 1 | |
| 20 | Spring washer | 941907 | 2 | |
| 21 | Flange screw | 945444 | 2 | |
| 22 | O-ring | 925092 | 1 | |
| 23 | Flange screw | 945444 | 2 | |
| 24 | Water pipe | 848381 | 1 | |
| 25 | Hexagon nut | 955782 | 7 | |
| 26 | Thermostat | 3839110 | 1 | 75°C |
| 27 | Sealing ring | 471788 | 1 | |
| 28 | Cover | 420968 | 1 | |
| 28 | Cover | 477905 | 1 | |
| 29 | Spring washer | 941907 | 4 | |
| 30 | Flange screw | 946470 | 4 | |
| 31 | Nipple | 862109 | 1 | |
| 32 | Elbow nipple | 479953 | 1 | |
| 33 | Flange | 3830530 | 1 | |
| 34 | Sealing ring | 469477 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type (424345) |
| 35 | Flange screw | 945444 | 2 | |
| 36 | Gasket | 11998 | 2 | |
| 38 | Plug | 960632 | 1 | |
| 40 | Plug | 960632 | 1 | |
| 41 | Hexagon nut | 955782 | 2 | |
| 42 | Sealing ring | 469982 | 2 | |
| 43 | Plug | 479977 | 2 | |
| 44 | Tube | 848655 | 1 | |
| 45 | Connecting pipe | 465911 | 1 | |
| 46 | O-ring | 477059 | 1 | |
| 47 | Flange screw | 965186 | 1 | |
| 47 | Flange screw | 965220 | 2 | |
| 48 | Rubber moulding | 471626 | 4 | |
| 49 | Tube | 847867 | 1 | Themostat housing-charger air cooler. |
| 49 | Coolant pipe | 865817 | 1 | Themostat housing-charger air cooler., Is used when compressor is mounted. |
| 50 | Coolant pipe | 862617 | 1 | Water pump-charge air cooler., TWD610G |
| 50 | Coolant pipe | 865815 | 1 | Water pump-charge air cooler., Is used when compressor is mounted. |
| 51 | Hose clamp | 943473 | 4 | |
| 52 | Hose | 952969 | 2 | (943368) L=600mm |
| 53 | Attaching clamp | 849059 | 1 | |
| 54 | Flange screw | 965194 | 1 | |
| 55 | Brace | 849110 | 1 | |
| 56 | Flange screw | 967949 | 2 | |
| 57 | Bracket | 849397 | 1 | |
| 58 | Coolant pipe | 862545 | 1 | Thermostat housing-oil cooler. |
| 59 | Coolant pipe | 862617 | 1 | Water pump-charge air cooler., TWD610G |
| 60 | Clamp | 421654 | 1 | |
| 61 | Flange screw | 967949 | 1 | |
| 62 | Flange screw | 965194 | 1 | |
| 63 | Attaching clamp | 849059 | 1 | |
| 64 | Flange screw | 946470 | 1 | |
| 65 | Bracket | 849397 | 1 | |
| 66 | Rubber moulding | 471626 | 6 |
| Item | Part Name | Part No. |
| 49 | Coolant pipe 865817 | 865817 |
| Details | |
| Engine model | TWD610P TWD610V, TWD630VE TWD630ME |
| Application | Water Pump and Thermostat Housing Water Pump and Thermostat Housing: A |
| Specification | |
| Descriptions | Themostat housing-charger air cooler., Is used when compressor is mounted. |
