Cooling hose 3809212

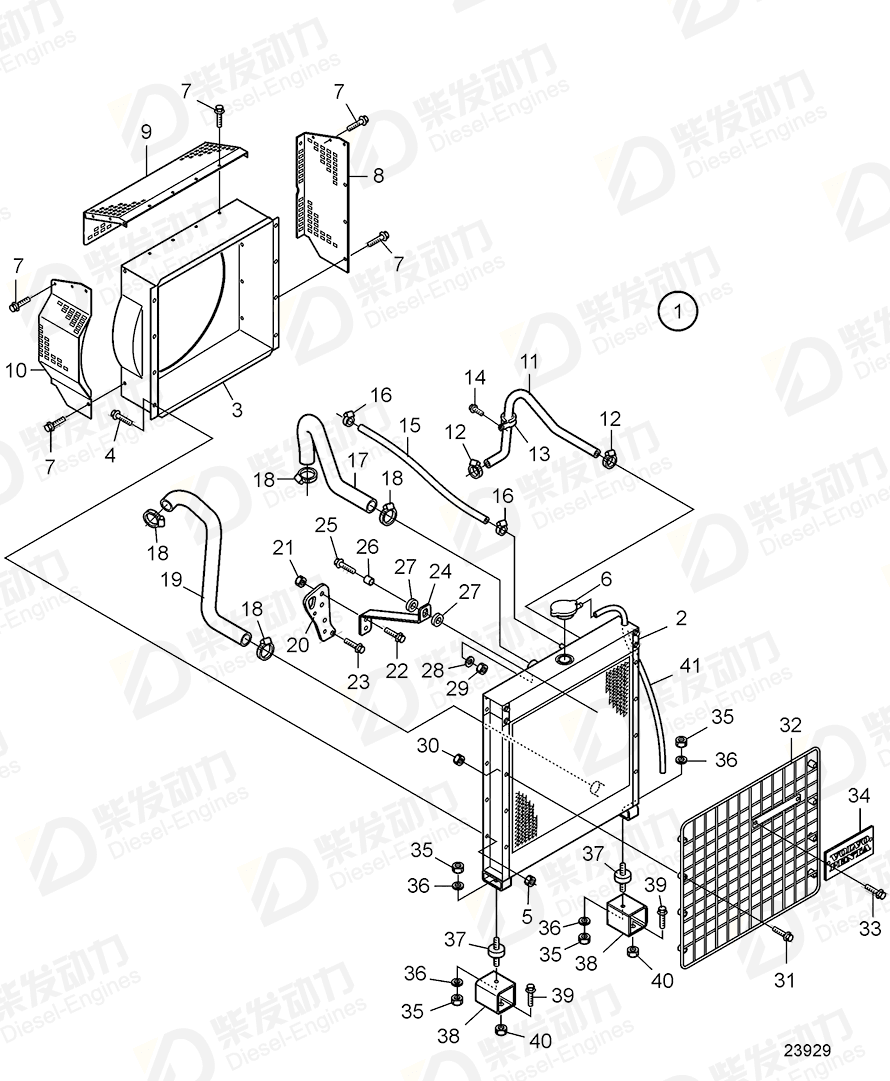

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 3812978 | 1 | |
| 2 | Radiator | 3808951 | 1 | |
| 4 | Flange screw | 984734 | 2 | |
| 5 | Flange nut | 990940 | 2 | |
| 6 | Filler cap | 21115452 | 1 | |
| 7 | Flange screw | 967949 | 15 | |
| 8 | Belt protector, left | 3809299 | 1 | |
| 9 | Belt protector, upper | 3809253 | 1 | |
| 10 | Belt protector, right | 3809251 | 1 | |
| 11 | Hose | 3809214 | 1 | |
| 12 | Hose clamp | 994559 | 2 | |
| 13 | Clamp | 949997 | 1 | |
| 14 | Flange screw | 984725 | 1 | |
| 15 | Rubber hose | 949564 | 1 | |
| 16 | Hose clamp | 943471 | 2 | (951787) |
| 17 | Cooling hose | 3809209 | 1 | |
| 18 | Hose clamp | 943479 | 4 | |
| 19 | Cooling hose | 3809212 | 1 | |
| 20 | Bracket | 3809306 | 1 | |
| 21 | Flange nut | 990941 | 2 | |
| 22 | Flange screw | 984753 | 2 | |
| 23 | Hexagon screw | 970947 | 3 | M10X25 |
| 24 | Stay | 3809219 | 1 | |
| 25 | Flange screw | 968297 | 1 | M16X60 |
| 26 | Bushing | 3812681 | 1 | |
| 27 | Rubber bushing | 866857 | 2 | |
| 28 | Washer | 191940 | 1 | |
| 29 | Flange nut | 966818 | 1 | Alt |
| 30 | Flange nut | 990940 | 8 | |
| 31 | Flange screw | 994385 | 8 | L=45mm |
| 32 | Radiator protector | 3812282 | 1 | |
| 33 | Screw | 941651 | 2 | |
| 34 | Emblem | 846118 | 1 | |
| 35 | Flange nut | 990941 | 4 | |
| 37 | Vibration damper | 20405749 | 2 | |
| 38 | Support | 3808972 | 2 | |
| 39 | Flange screw | 968435 | 4 | |
| 40 | Flange nut | 966818 | 4 | Alt |
| Item | Part Name | Part No. |
| 19 | Cooling hose 3809212 | 3809212 |
| Details | |
| Engine model | TAD720GE TD720GE |
| Application | Cooling System, Motor Specification Number: 869337 Cooling System, Motor Specification Number: 869338 |
Related Products
Tags: Cooling hose, Volvo Penta, 3809212
