Cover 15007006

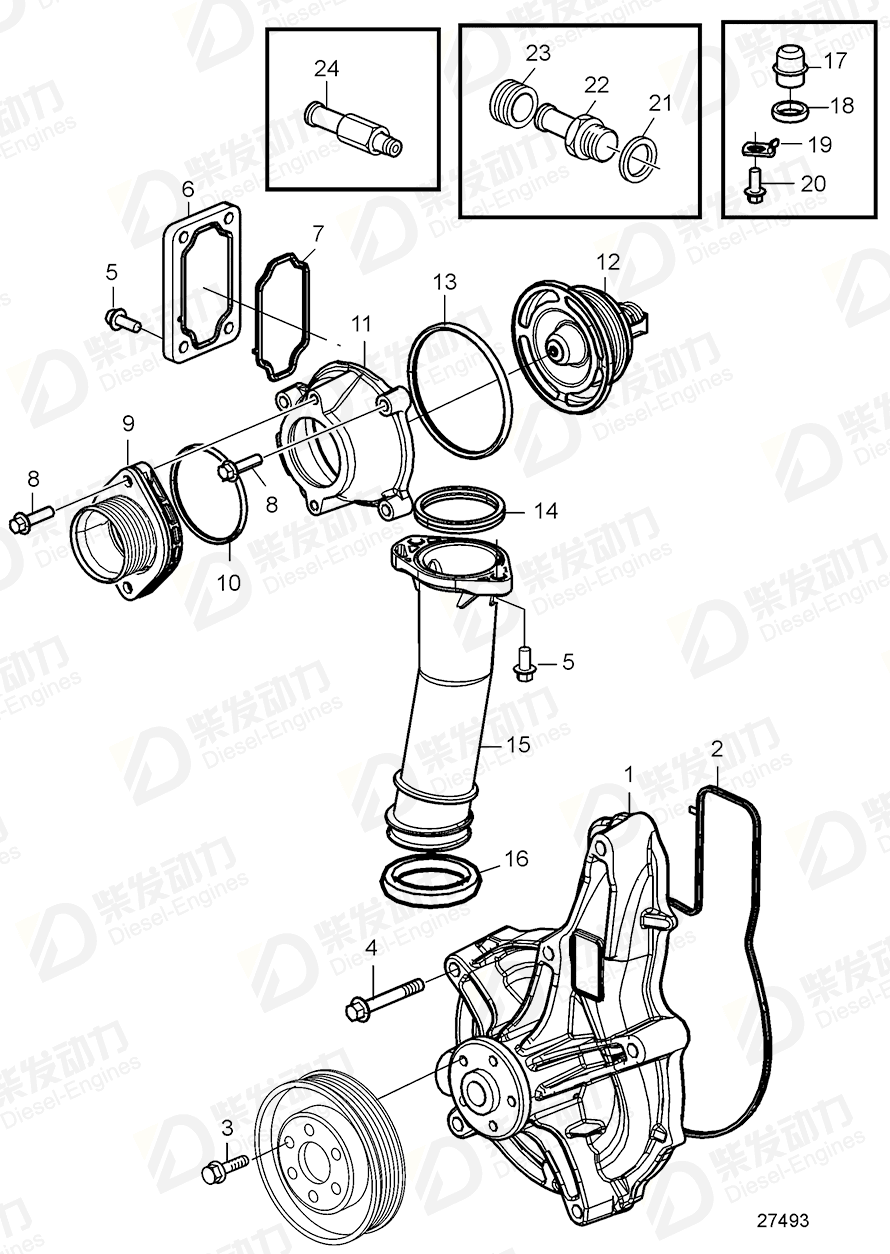

| No. | Part Name | Part Number | Qty | Description |
| 1 | Coolant pump | 3801418 | 1 | |
| 1 | Coolant pump, exch | 3801741 | 1 | |
| 1 | Pump unit | 22195450 | 1 | |
| 1 | Pump unit | 22902431 | 1 | |
| 2 | Rubber moulding | 21103569 | 1 | |
| 3 | Flange screw | 984732 | 5 | |
| 4 | Flange screw | 994386 | 6 | |
| 5 | Flange screw | 984734 | 6 | |
| 6 | Cover | 15007006 | 1 | |
| 7 | Seal | 8131154 | 1 | |
| 8 | Flange screw | 984736 | 6 | |
| 9 | Coolant pipe | 21843564 | 1 | |
| 10 | O-ring | 975675 | 1 | |
| 11 | Cover | 3838404 | 1 | |
| 12 | Thermostat | 21412639 | 1 | 82°C |
| 12 | Thermostat | 21613426 | 1 | |
| 13 | Sealing ring | 21503575 | 1 | |
| 14 | Sealing ring | 21423788 | 1 | For pipe 21420336 |
| 15 | Connection pipe | 21420336 | 1 | |
| 16 | Sealing ring | 20799996 | 1 | (425137) |
| 17 | Plug | 20845995 | 1 | |
| 18 | Sealing ring | 1547252 | 1 | |
| 19 | Lock brace | 1546531 | 1 | |
| 20 | Flange screw | 984733 | 1 | |
| 21 | Nipple | 862109 | 1 | |
| 22 | Nipple | 1676622 | 1 | |
| 23 | Protecting cap | 476279 | 1 | |
| 24 | Hose nipple | 996429 | 1 |
| Item | Part Name | Part No. |
| 6 | Cover 15007006 | 15007006 |
| Details | |
| Engine model | TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TWD1644GE, TWD1645GE TWD1672GE, TWD1673GE |
| Application | Water Pump and Thermostat Water Pump and Thermostat. SN2016080036- |
