Cover 22063304

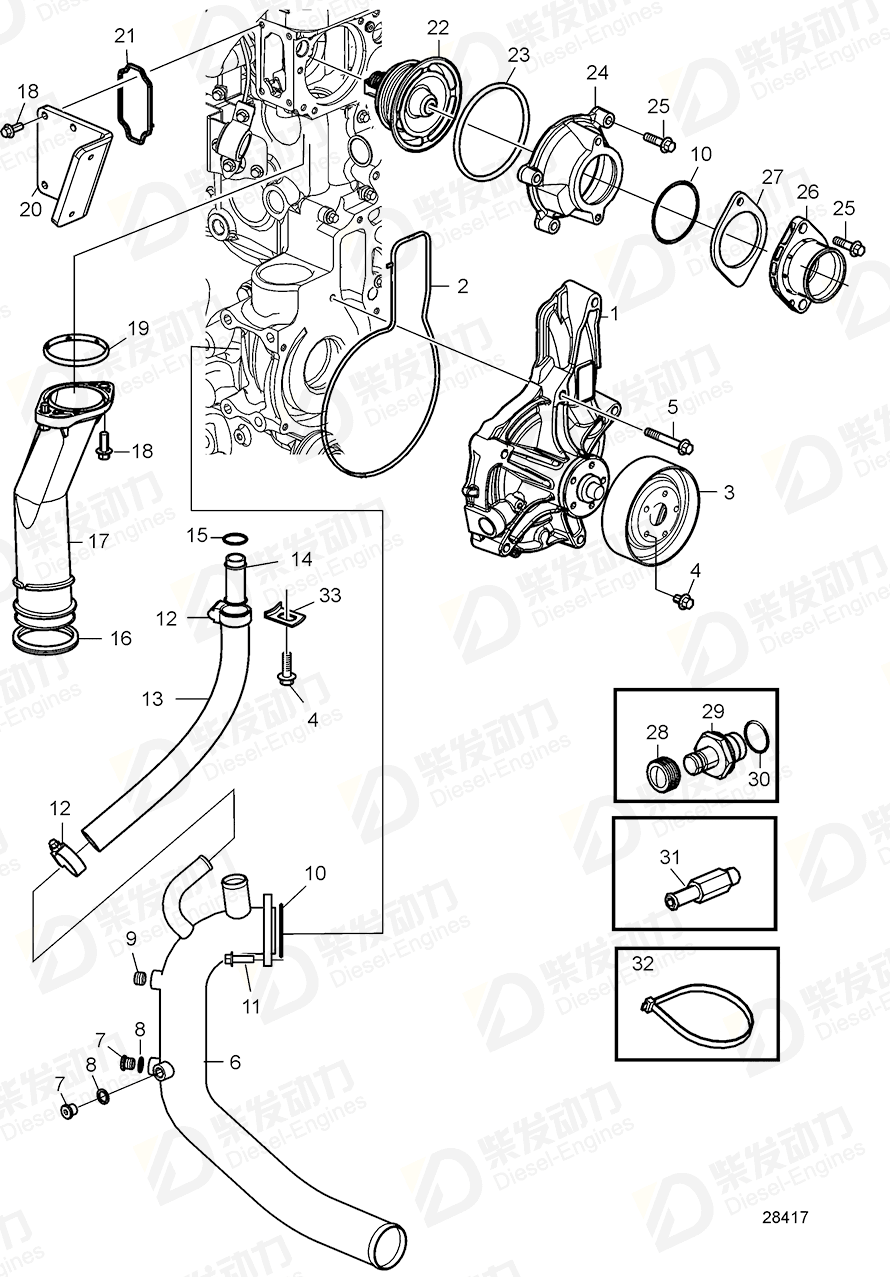

| No. | Part Name | Part Number | Qty | Description |
| 1 | Coolant pump | 3801418 | 1 | |
| 1 | Coolant pump, exch | 3801741 | 1 | |
| 1 | Pump unit | 22195450 | 1 | |
| 1 | Pump unit | 22902431 | 1 | |
| 2 | Rubber moulding | 21103569 | 1 | |
| 3 | Pulley | 20538853 | 1 | For water pump 20744939 |
| 4 | Flange screw | 984732 | 5 | |
| 5 | Flange screw | 994386 | 6 | |
| 6 | Coolant pipe | 21418790 | 1 | TAD1643VE without bracket and screw 984734 |
| 7 | Plug | 945065 | 2 | |
| 8 | Gasket | 969011 | 2 | |
| 9 | Plug | 968063 | 1 | |
| 10 | O-ring | 975675 | 2 | |
| 11 | Flange screw | 984735 | 2 | |
| 12 | Hose clamp | 21078879 | 2 | |
| 13 | Rubber hose | 969033 | 1 | L=75mm |
| 14 | Connection pipe | 3838735 | 1 | |
| 15 | Sealing ring | 1547252 | 1 | |
| 16 | Sealing ring | 20799996 | 1 | (425137) |
| 17 | Connection pipe | 21420336 | 1 | |
| 18 | Flange screw | 984734 | 6 | |
| 19 | Sealing ring | 21423788 | 1 | For pipe 21420336 |
| 20 | Cover | 22063304 | 1 | |
| 21 | Seal | 8131154 | 1 | |
| 22 | Thermostat | 21412639 | 1 | 82°C |
| 22 | Thermostat | 21613426 | 1 | |
| 23 | Sealing ring | 21503575 | 1 | |
| 24 | Cover | 3838404 | 1 | |
| 25 | Flange screw | 984736 | 6 | |
| 26 | Coolant pipe | 21843564 | 1 | |
| 28 | Protecting cap | 476279 | 1 | |
| 29 | Nipple | 1676622 | 1 | |
| 30 | Gasket | 979099 | 1 | |
| 31 | Hose nipple | 996429 | 1 | |
| 32 | Cable tie | 980464 | 1 | |
| 33 | Lock brace | 1546531 | 1 |
| Item | Part Name | Part No. |
| 20 | Cover 22063304 | 22063304 |
| Details | |
| Engine model | TAD1643VE-B TAD1650VE-B, TAD1651VE TAD1670VE, TAD1671VE, TAD1672VE |
| Application | Cooling Water Pump and Thermostat Housing |
