Cover 244678

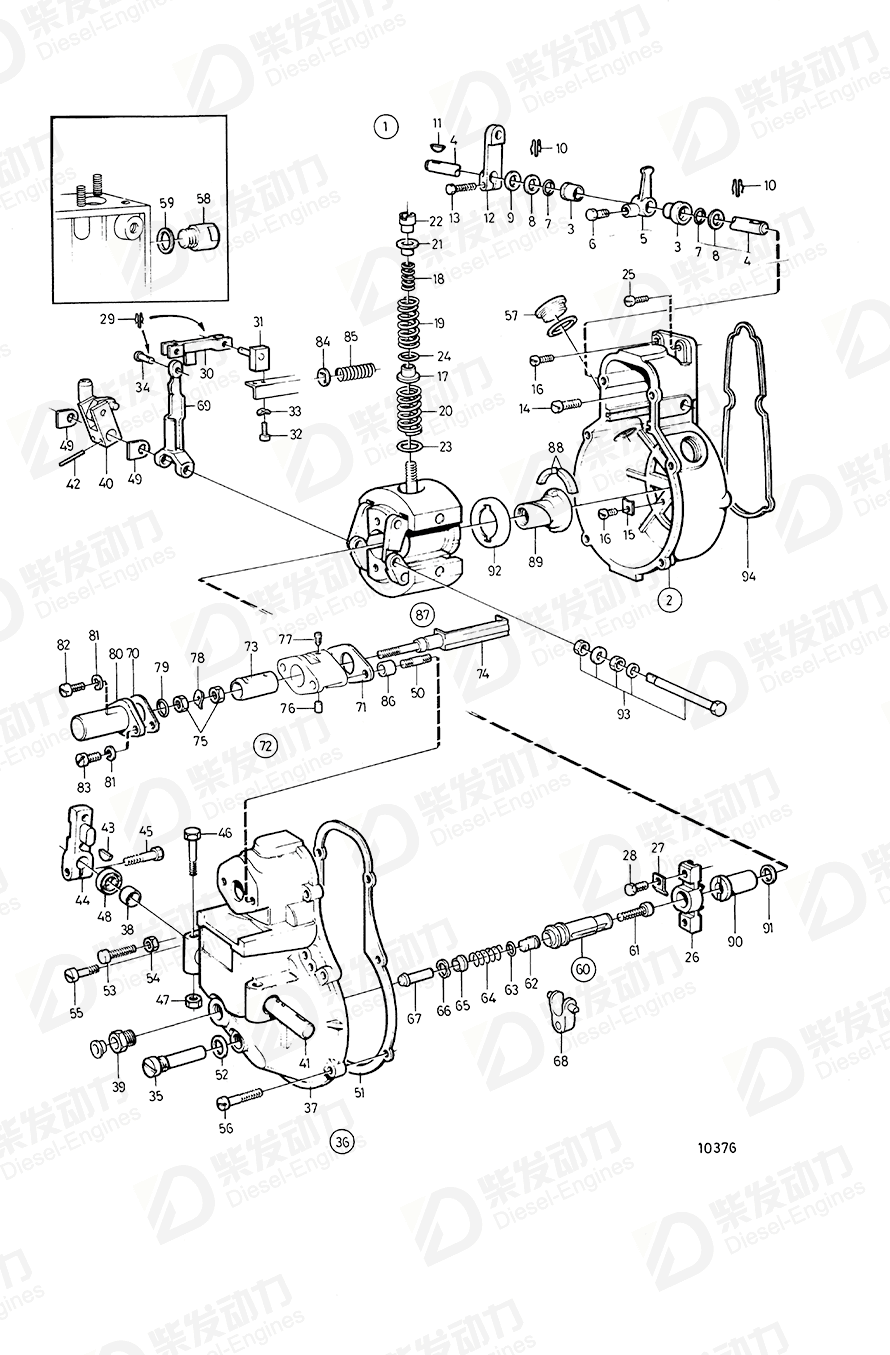

| No. | Part Name | Part Number | Qty | Description |
| 1 | Governor | 3825116 | 1 | |
| 3 | Bushing | 240059 | 2 | |
| 4 | Shaft | 233404 | 1 | |
| 5 | Lever | 240060 | 1 | |
| 6 | Screw | 241102 | 1 | |
| 7 | Gasket | 239908 | 2 | |
| 8 | Washer | 6212642 | 2 | |
| 9 | Washer | 233372 | 1 | |
| 10 | Lock pin | 244979 | 2 | |
| 11 | Key | 77582 | 1 | |
| 13 | Six point socket scr | 969407 | 1 | |
| 14 | Screw | 849468 | 2 | |
| 15 | Washer | 862427 | 4 | |
| 18 | Regulator spring | 847909 | 2 | Std 1800 rpm |
| 19 | Regulator spring | 847533 | 2 | Std 1800 rpm |
| 20 | Compression spring | 848304 | 2 | Std |
| 21 | Spring disc | 244622 | 2 | |
| 22 | Nut | 244623 | 2 | |
| 27 | Striker plate | 240565 | 2 | |
| 28 | Hexagon screw | 955271 | 2 | |
| 30 | Fork | 238173 | 1 | |
| 31 | Guide lug | 244986 | 1 | |
| 34 | Bolt | 244851 | 1 | |
| 38 | Bushing | 862440 | 2 | |
| 40 | Lever | 848305 | 1 | |
| 41 | Shaft | 862441 | 1 | |
| 42 | Pin | 244983 | 2 | |
| 43 | Woodruff key | 910112 | 1 | |
| 44 | Intermediate lever | 239316 | 1 | |
| 45 | Screw | 240570 | 1 | |
| 46 | Screw | 241988 | 1 | |
| 47 | Hexagon nut | 955781 | 1 | |
| 48 | Gasket | 18836 | 2 | |
| 50 | Stud | 848306 | 2 | |
| 52 | Gasket | 18836 | 1 | |
| 54 | Nut | 243844 | 1 | |
| 56 | Screw | 862448 | 5 | |
| 57 | Plug | 240688 | 2 | |
| 58 | Lock screw | 240016 | 1 | |
| 59 | Gasket | 240017 | 1 | Spec.867473 alt |
| 60 | Bearing bolt | 244480 | 1 | |
| 68 | Link | 240682 | 1 | |
| 69 | Arm | 240683 | 1 | |
| 72 | Stop | 240864 | 1 | |
| 75 | Nut | 847519 | 2 | |
| 80 | Cover | 244678 | 1 | |
| 81 | Spring washer | 949607 | 2 | |
| 82 | Screw | 830798 | 1 | |
| 83 | Screw | 241779 | 1 | |
| 84 | Washer | 1698169 | 1 | |
| 85 | Spring | 244719 | 1 | |
| 86 | Nut | 240704 | 2 | |
| 91 | Adjusting washer | 244753 | 1 | TH=1,60mm |
| 91 | Adjusting washer | 244754 | 1 | TH=1,63mm |
| 91 | Adjusting washer | 244755 | 1 | TH=1,66mm |
| 91 | Adjusting washer | 244756 | 1 | TH=1,69mm |
| 91 | Adjusting washer | 244757 | 1 | TH=1,72mm |
| 91 | Adjusting washer | 244758 | 1 | TH=1,75mm |
| 91 | Adjusting washer | 244759 | 1 | TH=1,78mm |
| 91 | Adjusting washer | 244760 | 1 | TH=1,81mm |
| 91 | Adjusting washer | 244761 | 1 | TH=1,84mm |
| 91 | Adjusting washer | 244762 | 1 | TH=1,87mm |
| 91 | Adjusting washer | 244763 | 1 | TH=1,90mm |
| 91 | Adjusting washer | 244764 | 1 | TH=1,93mm |
| 91 | Adjusting washer | 244765 | 1 | TH=1,96mm |
| 91 | Adjusting washer | 244766 | 1 | TH=1,99mm |
| 91 | Adjusting washer | 244767 | 1 | TH=2,02mm |
| 91 | Adjusting washer | 244768 | 1 | TH=2.05mm |
| 91 | Adjusting washer | 244769 | 1 | TH=2,08mm |
| 91 | Adjusting washer | 244770 | 1 | TH=2,11mm |
| 91 | Adjusting washer | 244771 | 1 | TH=2,14mm |
| 94 | Sealing ring | 862443 | 1 |
| Item | Part Name | Part No. |
| 80 | Cover 244678 | 244678 |
| Details | |
| Engine model | TWD1620G, TWD1630G |
| Application | Centrifugal Governor Centrifugal Governor, Components Smoke Eliminator: 862468 Smoke Eliminator: 862469 |
