Cover 471854

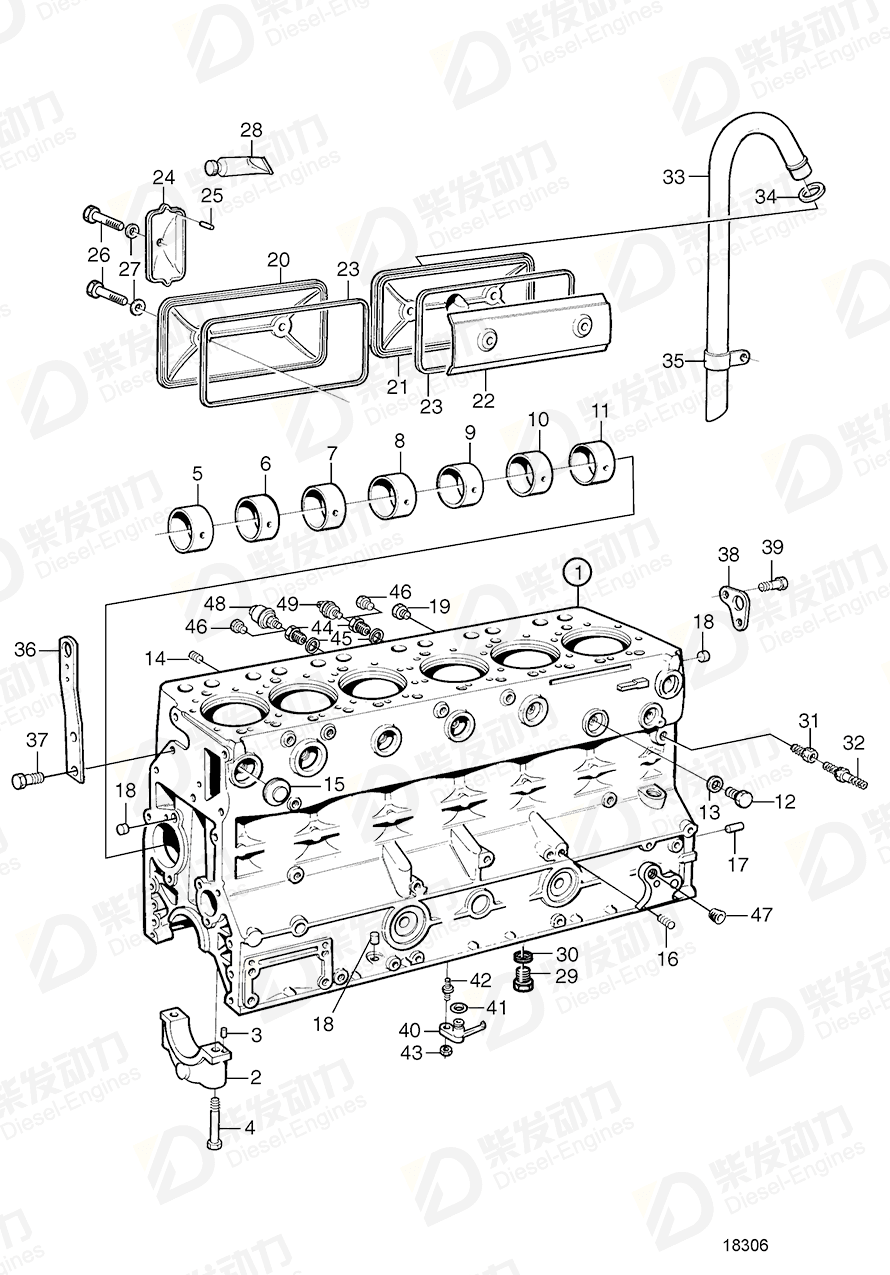

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 8192730 | 1 | |
| 3 | Pin | 422426 | 1 | |
| 4 | Flange screw | 8192738 | 14 | |
| 5 | Bushing | 422076 | 1 | |
| 6 | Bushing | 8192676 | 1 | |
| 7 | Bushing | 8192677 | 1 | |
| 8 | Bushing | 8192678 | 1 | |
| 9 | Bushing | 422080 | 1 | |
| 10 | Bushing | 8192679 | 1 | |
| 11 | Bushing | 422082 | 1 | |
| 14 | Plug | 422369 | 2 | |
| 15 | Expansion plug | 968955 | 6 | (941256) |
| 16 | Plug | 968145 | 1 | (952357) |
| 17 | Pin | 191171 | 2 | |
| 18 | Cap plug | 955082 | 6 | |
| 19 | Plug | 479976 | 1 | (946559) |
| 20 | Inspection cover | 420120 | 1 | |
| 21 | Inspection cover | 420121 | 1 | |
| 22 | Splash plate | 3978045 | 1 | (471858) |
| 23 | Gasket | 20591544 | 2 | |
| 24 | Cover | 471854 | 1 | |
| 25 | Spring pin | 951973 | 1 | |
| 26 | Shoulder screw | 471855 | 5 | |
| 27 | Sealing ring | 471856 | 5 | |
| 28 | Sealant | 1161231 | 1 | 304ml |
| 29 | Plug | 966146 | 1 | |
| 30 | Gasket | 947629 | 1 | |
| 31 | Nipple | 479954 | 1 | (190130) |
| 32 | Shut-off cock | 949918 | 1 | (82745) |
| 33 | Tube | 471857 | 1 | |
| 34 | Sealing ring | 421158 | 1 | |
| 35 | Clamp | 968124 | 1 | |
| 37 | Flange screw | 965191 | 2 | |
| 40 | Piston cooling jet | 420628 | 6 | |
| 41 | Sealing ring | 466874 | 6 | |
| 42 | Stud | 471596 | 6 | |
| 43 | Lock nut | 948570 | 6 | |
| 44 | Nipple, oil | 421528 | 2 | |
| 45 | Gasket | 947622 | 2 | |
| 46 | Plug | 479979 | 5 | |
| 47 | Plug | 968062 | 1 |
| Item | Part Name | Part No. |
| 24 | Cover 471854 | 471854 |
| Details | |
| Engine model | TAD730G TAD730P TAD730V TD610G, TWD610G TD610M TD610V TD61A, TD61AW, TD61ACE, TD61AG, TD61AP TD630ME TD630VE TD640VE TD710G, TWD710G TD71A, TD71AW, TD71ACE, TD71AG, TD71AP TD71A, TID71A, TWD710V TD730ME, TWD731ME TD730VE, TWD731VE TID61AG TID71A, TID71AG, TID71AP TWD610P TWD610V TWD630ME TWD630VE TWD710P TWD730ME TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Cylinder Block Cylinder Block and Related Parts Cylinder Block SN-2071097292: A Cylinder Block SN-2071097292: B Cylinder Block SN2071097293-: A Cylinder Block SN2071097293-: B Cylinder Block: A Cylinder Block: B Cylinder Block: SN-2071097292 Cylinder Block: SN2071097293- |
