Cover 8131657

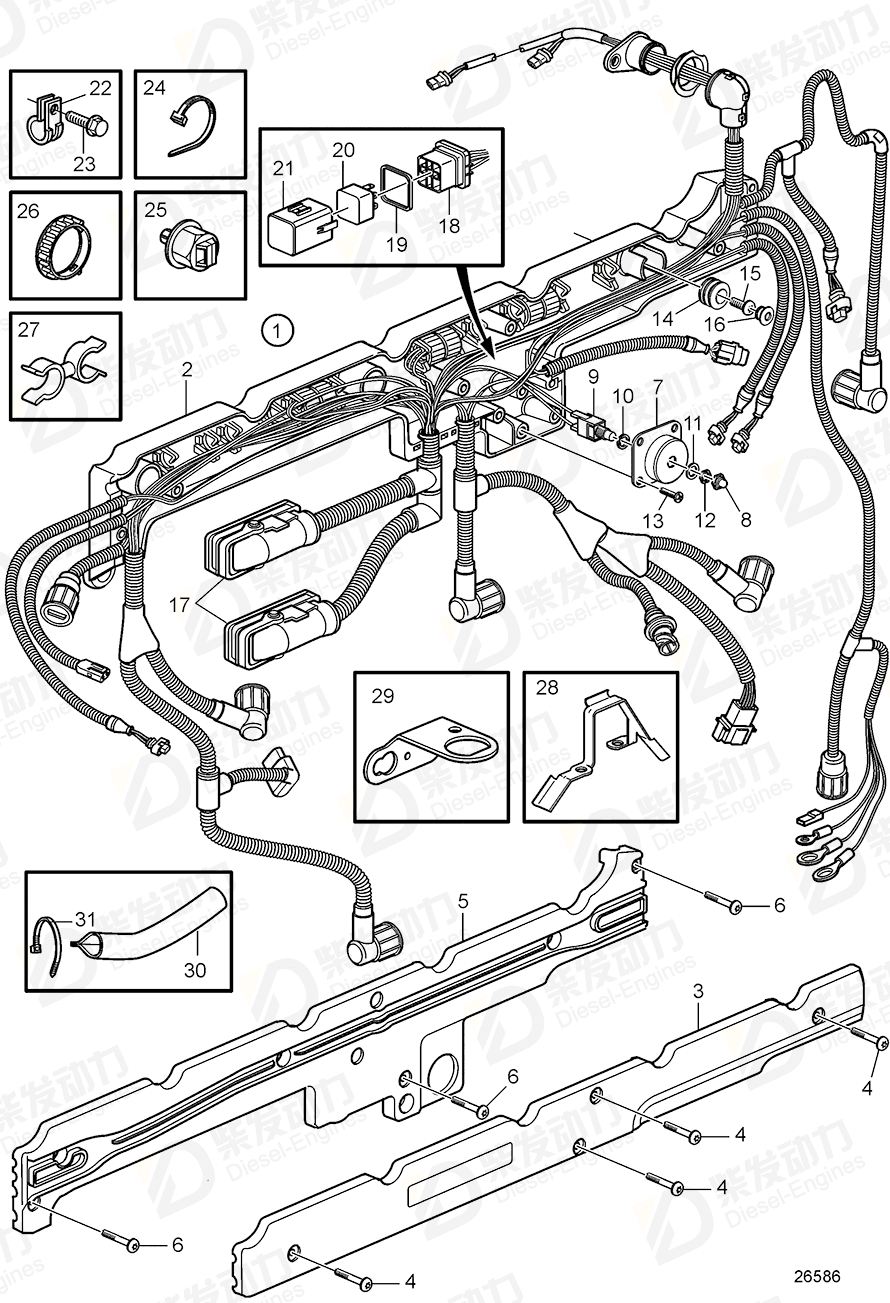

| No. | Part Name | Part Number | Qty | Description |
| 1 | Wiring harness | 21345091 | 1 | (3843030) |
| 2 | Box | 8131655 | 1 | SN-2016008533,If needed the old parts! all three new parts have to been bougt |
| 2 | Box | 20782686 | 1 | SN2016008534- |
| 3 | Cover | 8131657 | 1 | SN-2016008533,If needed the old parts! all three new parts have to been boug |
| 3 | Cover | 20785240 | 1 | SN2016008534- |
| 4 | Six point socket scr | 3985652 | 4 | |
| 5 | Box | 8131656 | 1 | SN-2016008533,If needed the old parts! all three new parts have to been bougt |
| 5 | Intermediate section | 20784842 | 1 | SN2016008534- |
| 6 | Six point socket scr | 3985652 | 3 | |
| 7 | Cap | 3838949 | 1 | |
| 8 | Nut | 828586 | 1 | |
| 9 | Breaker | 873959 | 1 | Stop |
| 13 | Six point socket scr | 969408 | 4 | |
| 14 | Rubber cushion | 1079687 | 5 | |
| 15 | Plug | 1079677 | 5 | |
| 16 | Six point socket scr | 969598 | 5 | |
| 18 | Relay socket | 3587172 | 1 | |
| 20 | Relay | 3171420 | 1 | |
| 21 | Relay box | 3587173 | 1 | Replaced by 21494263 |
| 22 | Clamp | 949746 | 2 | |
| 22 | Clamp | 949997 | 1 | |
| 23 | Flange screw | 984733 | 1 | |
| 24 | Cable tie | 948211 | 1 | |
| 24 | Cable tie | 983472 | 1 | For cable to unit injectors. |
| 25 | Retainer | 8131393 | 1 | For cable to unit injectors. |
| 26 | Ring | 3963413 | 1 | |
| 27 | Retainer | 3121512 | 2 | |
| 28 | Bracket | 20563691 | 1 | |
| 29 | Bracket | 3988328 | 1 | |
| 30 | Tube | 20711293 | 1 | |
| 31 | Cable tie | 862832 | 1 |
| Item | Part Name | Part No. |
| 3 | Cover 8131657 | 8131657 |
| Details | |
| Engine model | TAD1640GE, TAD1641GE, TAD1642GE TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1641VE, TAD1642VE, TAD1643VE |
| Application | Electrical System |
| Specification | |
| Descriptions | SN-2016008533,If needed the old parts! all three new parts have to been boug SN-2016008533,If needed the old parts! all three new parts have to been bought |
