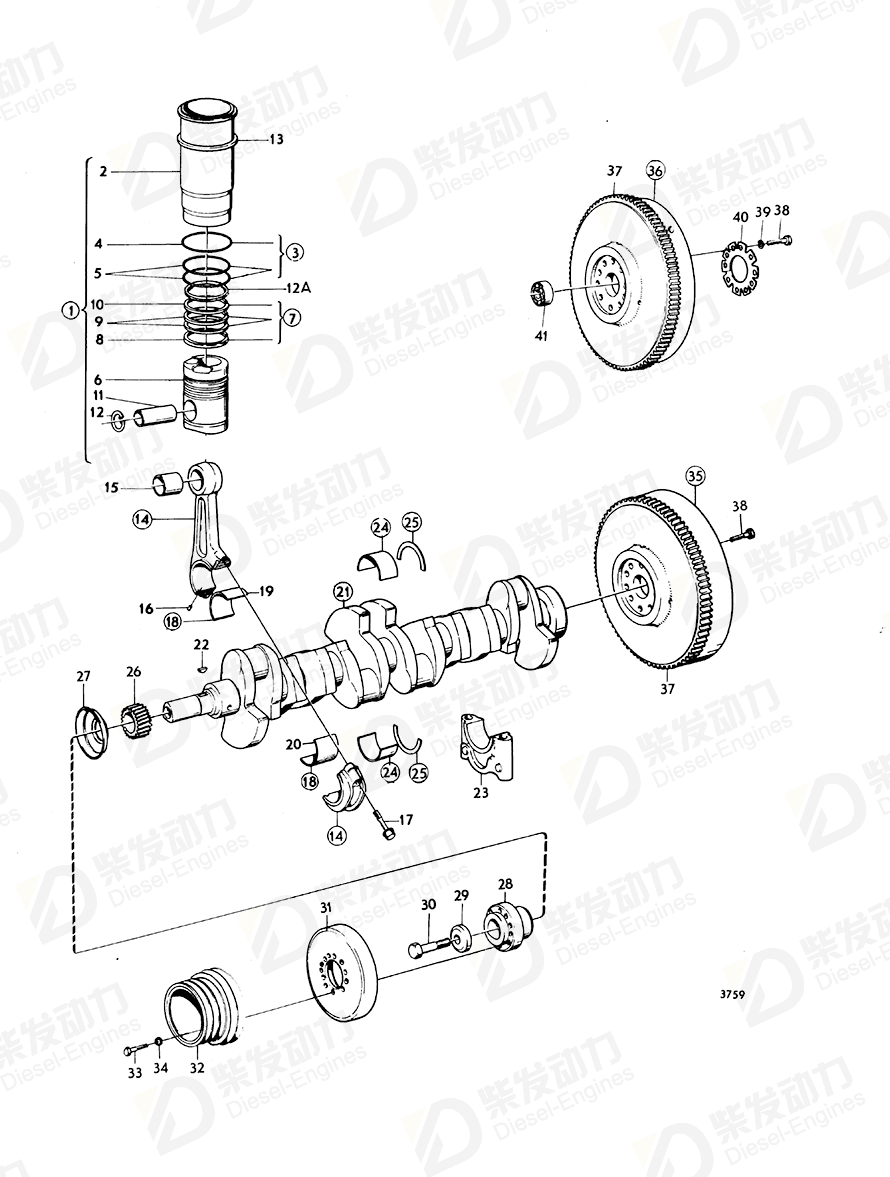

Crankshaft 837641
| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 275060 | 6 | |
| 3 | Gasket kit | 275729 | 6 | MO-12308/XXXX |
| 3 | Sealing ring kit | 275730 | 6 | MO12309/XXXXX- |
| 7 | Piston ring kit | 275309 | 6 | |
| 7 | Piston ring kit | 275321 | 6 | MO33407/XXXXX- |
| 11 | Gudgeon pin | 423342 | 6 | |
| 12 | Snap ring | 423124 | 12 | |
| 13 | Adjusting washer | 468271 | 1 | TH=0.20mm |
| 13 | Adjusting washer | 468272 | 1 | TH=0.30mm |
| 13 | Adjusting washer | 468273 | 1 | TH=0.50mm |
| 14 | Connecting rod | 822530 | 6 | |
| 15 | Bushing | 423147 | 6 | |
| 16 | Pin | 131205 | 12 | |
| 17 | Screw | 417464 | 12 | |
| 18 | Big-end bearing kit | 270105 | 6 | Std |
| 18 | Big-end bearing kit | 270106 | 6 | 0.25mm u.s |
| 18 | Big-end bearing kit | 270107 | 6 | 0.50mm u.s |
| 18 | Big-end bearing kit | 270108 | 6 | 0.75mm u.s |
| 21 | Crankshaft | 837641 | 1 | |
| 22 | Woodruff key | 422253 | 1 | |
| 24 | Main bearing kit | 270449 | 7 | Std |
| 24 | Main bearing kit | 270450 | 7 | 0.25mm u.s |
| 24 | Main bearing kit | 270451 | 7 | 0.50mm u.s |
| 24 | Main bearing kit | 270452 | 7 | 0.75mm u.s |
| 25 | Thrust washer kit | 276791 | 1 | Std D |
| 25 | Thrust washer kit | 276792 | 1 | 0,1mm o.s |
| 25 | Thrust washer kit | 276793 | 1 | 0,2mm o.s |
| 25 | Thrust washer | 423288 | 1 | (276794) 0,3mm over size |
| 26 | Gear | 423080 | 1 | |
| 27 | Oil deflector | 423177 | 1 | |
| 28 | Hub | 422123 | 1 | |
| 29 | Washer | 422124 | 1 | |
| 30 | Hexagon screw | 941494 | 1 | |
| 31 | Vibration damper | 823027 | 1 | Early type |
| 32 | Pulley | 822709 | 1 | |
| 32 | Pulley | 823028 | 1 | MO 3119298/XXXX-3130871/216681. |
| 33 | Hexagon screw | 955549 | 12 | AQ170B MOXXXX/87713-., L=45mm |
| 33 | Hexagon screw | 955550 | 12 | BB170B MOXXXX/89353-., L=51mm |
| 33 | Hex. socket screw | 956601 | 12 | Repl by 1pc 829856 4PCS 829857 4PCS 829858 4PCS 941905 4PCS 955780., L=32mm |
| 34 | Spring washer | 941909 | 12 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 35 | Flywheel | 814746 | 1 | For BB115 with BorgWarner reverse gear., Std |
| 35 | Flywheel | 837040 | 1 | BB115B, AQ130C MO-15301/XXXX. BB115A MO-1400/XXXX. |
| 36 | Flywheel | 821353 | 1 | AQ130C compression 8,4:1. |
| 37 | Gear ring | 423082 | 1 | |
| 37 | Gear ring | 822020 | 1 | BB115B, AQ130C MO-15301/XXXX. BB115A MO-1400/XXXX. |
| 38 | Hexagon screw | 941570 | 10 | |
| 39 | Washer | 467773 | 10 | |
| 40 | Lock washer | 422427 | 1 | AQ130C compression 8,4:1., MB20C, MB20A MO1401/XXXX-., AQ140A excl USA MO-7263/XXXX. AQ120B excl USA MO 903/XXXX. AQ140A USA MO-1400/XXXX. AQ120B USA MO-1705/XXXX., +truck |
| 41 | Ball bearing | 1526189 | 1 | AQ130C compression 8,4:1., MB20C, MB20A MO1401/XXXX-., AQ140A excl USA MO-7263/XXXX. AQ120B excl USA MO 903/XXXX. AQ140A USA MO-1400/XXXX. AQ120B USA MO-1705/XXXX., +truck |
| 12A | Protecting ring | 468582 | 6 |
| Item | Part Name | Part No. |
| 21 | Crankshaft 837641 | 837641 |
| Details | |
| Engine model | D120A TD120A TD120C |
| Application | Crankshaft and Related Parts Crankshaft and Related Parts: A Crankshaft and Related Parts: B |
