Crankshaft seal 20459115

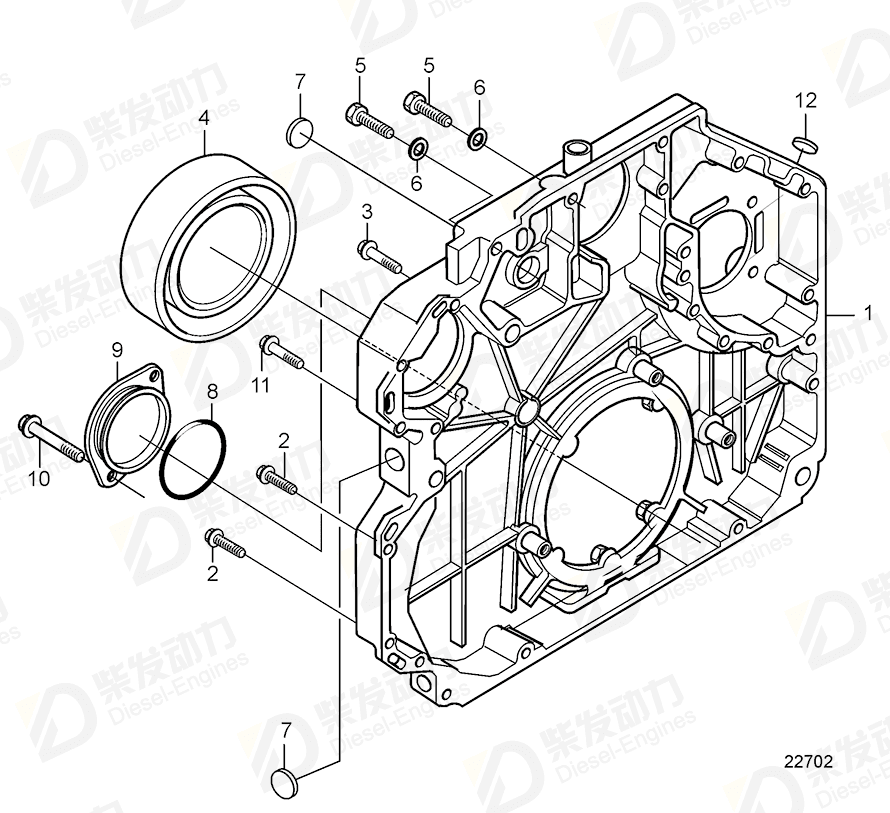

| No. | Part Name | Part Number | Qty | Description |
| 1 | Gear housing | 20841195 | 1 | Replaced by 22036389 |
| 1 | Flywheel housing | 22036389 | 1 | SN-11694715, Replaced by 22444773 |
| 1 | Timing gear casing | 22444773 | 1 | SN11694716- |
| 2 | Flange screw | 20412324 | 12 | |
| 3 | Flange screw | 20450801 | 3 | |
| 4 | Crankshaft seal | 20459115 | 1 | |
| 5 | Screw | 20405653 | 2 | |
| 6 | Washer | 976944 | 2 | |
| 7 | Plug | 20798056 | 1 | Use locking fluid 1161075 |
| 8 | Sealant | 22618325 | 1 | |
| 9 | Cover | 20706651 | 1 | SN-01099468 |
| 9 | Cover | 20950063 | 1 | SN01099469-, Replaced by 22610639 |
| 9 | Cover | 22610639 | 1 | SN11830770-, Use Sealant 22618325 |
| 10 | Flange screw | 20450802 | 2 | L=60mm |
| 11 | Flange screw | 994386 | 1 | |
| 12 | Cover | 20405605 | 1 |
| Item | Part Name | Part No. |
| 4 | Crankshaft seal 20459115 | 20459115 |
| Details | |
| Engine model | TAD650VE, TAD660VE TD420VE, TAD420VE TD420VE, TAD420VE, TAD620VE |
| Application | Crank Mechanism Timing Gear Casing and Gears |
