Cross recessed screw 956065

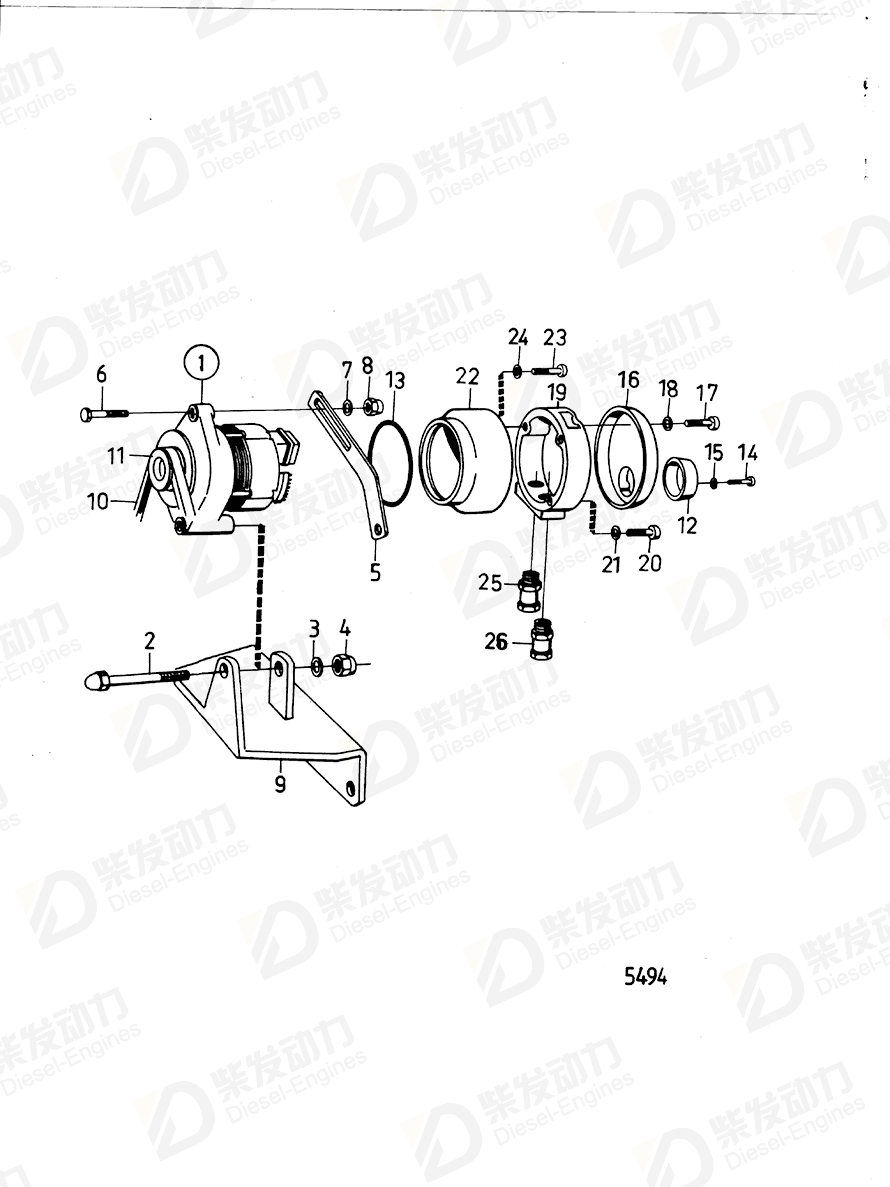

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 827349 | 1 | 28V 25A,later prod |
| 2 | Hexagon screw | 955555 | 1 | L=83mm |
| 3 | Spring washer | 941909 | 1 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 4 | Lock nut | 950355 | 1 | |
| 5 | Tensioner | 837189 | 1 | |
| 6 | Hexagon screw | 940186 | 1 | |
| 7 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 8 | Lock nut | 950353 | 1 | |
| 9 | Bracket | 837210 | 1 | |
| 10 | V-belt | 958301 | 1 | Replaced by 837000 and 1pc 898683., L=775mm |
| 11 | Pulley | 820459 | 1 | Replaced by 1pc 841768. |
| 13 | Sealing ring | 837724 | 1 | |
| 14 | Cross recessed screw | 956061 | 1 | D70B spec. 867055, 867060. TD70B spec. 867066. |
| 15 | Spring washer | 941904 | 3 | |
| 16 | Cover | 836132 | 1 | |
| 17 | Cross recessed screw | 956065 | 3 | |
| 18 | Spring washer | 941904 | 3 | |
| 19 | Housing | 836138 | 1 | |
| 20 | Hex. socket screw | 940326 | 3 | |
| 21 | Spring washer | 941906 | 3 | |
| 22 | Attaching ring | 836477 | 1 | |
| 23 | Hexagon screw | 955253 | 2 | |
| 24 | Spring washer | 941905 | 2 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 25 | Grommet | 822327 | 1 | |
| 26 | Grommet | 881520 | 1 |
| Item | Part Name | Part No. |
| 17 | Cross recessed screw 956065 | 956065 |
| Details | |
| Engine model | D100B, TD100A D70B TAD1240GE, TAD1241GE, TAD1242GE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TWD1240VE, TAD1241VE, TAD1242VE |
| Application | Alternator and Installation Components, Spec 867108, 867153 Alternator and Installation Components, Spec.867117 Alt Instrument Panel and Control |
