Cross recessed screw 956094

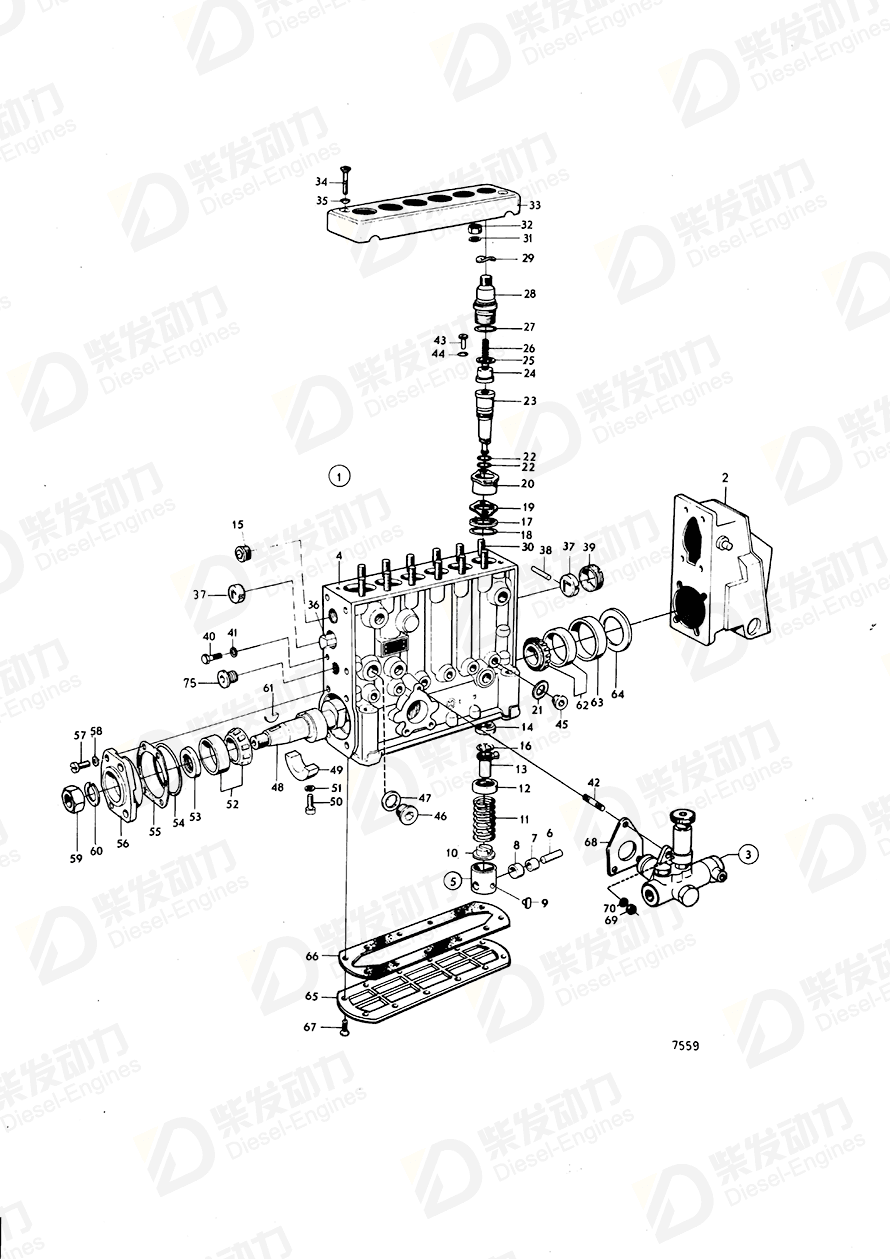

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 846929 | 1 | |
| 2 | Governor | 845214 | 1 | Early type |
| 3 | Feed pump | 244391 | 1 | Repl by 1699140 |
| 5 | Push rod | 244404 | 6 | |
| 6 | Bearing bolt | 240779 | 6 | |
| 7 | Bushing | 240780 | 6 | |
| 8 | Bearing | 846577 | 6 | |
| 9 | Plate | 238379 | 6 | |
| 10 | Spring disc | 244685 | 6 | (6211952) |
| 11 | Compression spring | 244402 | 6 | |
| 12 | Spring disc | 239984 | 6 | |
| 13 | Control sleeve | 240782 | 6 | |
| 14 | Cover | 239991 | 6 | |
| 15 | Plug | 844988 | 1 | |
| 16 | Retaining ring | 848299 | 6 | Included in small parts kit |
| 17 | Washer | 241677 | 6 | |
| 18 | O-ring | 846937 | 6 | |
| 19 | Shim | 244381 | 1 | TH=1,50mm |
| 19 | Shim | 244382 | 1 | TH=1,60mm |
| 19 | Shim | 244383 | 1 | TH=1,70mm |
| 19 | Shim | 244384 | 1 | TH=1,80mm |
| 19 | Shim | 244385 | 1 | TH=1,90mm |
| 19 | Shim | 244386 | 1 | TH=2,00mm |
| 19 | Shim | 244633 | 1 | TH=1,2mm |
| 19 | Shim | 244634 | 1 | TH=1,3mm |
| 19 | Shim | 244635 | 1 | TH=1,4mm |
| 19 | Adjusting washer | 844990 | 1 | TH=0.40mm |
| 19 | Adjusting washer | 844991 | 1 | TH=0.50mm |
| 19 | Adjusting washer | 844992 | 1 | TH=0.70mm |
| 19 | Adjusting washer | 844993 | 1 | TH=0.80mm |
| 19 | Adjusting washer | 844994 | 1 | TH=1.00mm |
| 19 | Adjusting washer | 844995 | 1 | TH=1.10mm |
| 19 | Adjusting washer | 844996 | 1 | TH=1,30mm |
| 19 | Washer | 845238 | 1 | TH=0.9mm |
| 19 | Adjusting plate | 847428 | 1 | TH=0.45mm |
| 19 | Adjusting plate | 847429 | 1 | TH=0.6mm |
| 19 | Adjusting plate | 847430 | 1 | TH=0,85mm |
| 19 | Adjusting plate | 847431 | 1 | TH=1,35mm |
| 19 | Adjusting plate | 847432 | 1 | TH=1,45mm |
| 19 | Adjusting plate | 847433 | 1 | TH=2,1mm |
| 20 | Bushing | 244733 | 6 | |
| 21 | Gasket | 18836 | 6 | |
| 22 | O-ring | 240422 | 12 | |
| 23 | Pump element | 846576 | 6 | |
| 24 | Delivery valve | 846188 | 6 | (240423) |
| 25 | Sealing washer | 239993 | 6 | |
| 26 | Compression spring | 240969 | 6 | |
| 27 | O-ring | 240001 | 6 | |
| 28 | Retainer | 244636 | 6 | |
| 29 | Washer | 243743 | 12 | |
| 30 | Stud | 244380 | 12 | |
| 31 | Spring washer | 941908 | 12 | |
| 32 | Hexagon nut | 943927 | 12 | |
| 33 | Cover | 240011 | 1 | |
| 34 | Cross recessed screw | 956209 | 2 | |
| 35 | Lock washer | 18891 | 2 | |
| 36 | Control rod | 240907 | 1 | |
| 37 | Bushing | 240014 | 2 | |
| 38 | Spring pin | 244008 | 1 | (131015) |
| 39 | Bushing | 240015 | 1 | |
| 40 | Lock screw | 6642955 | 1 | |
| 41 | Gasket | 947620 | 1 | (233321) |
| 42 | Stud | 130673 | 3 | |
| 43 | Peg | 240971 | 6 | |
| 44 | Washer | 240972 | 1 | TH=0.2mm |
| 44 | Washer | 240973 | 1 | TH=0.5mm |
| 45 | Plug | 180707 | 1 | |
| 46 | Sealing plug | 243263 | 1 | |
| 47 | Gasket | 240017 | 1 | Spec.867473 alt |
| 48 | Camshaft | 845454 | 1 | |
| 49 | Bearing | 244406 | 1 | |
| 50 | Screw | 240427 | 2 | |
| 51 | Spring washer | 941906 | 2 | |
| 52 | Roller bearing | 240023 | 1 | |
| 53 | Sealing ring | 240022 | 1 | |
| 54 | O-ring | 243299 | 1 | |
| 55 | Shim | 240024 | 1 | TH=0.15mm |
| 55 | Shim | 240025 | 1 | TH=0.12mm |
| 55 | Shim | 240026 | 1 | TH=0.14mm |
| 55 | Shim | 240027 | 1 | TH=0.16mm |
| 55 | Shim | 240028 | 1 | TH=0.18mm |
| 55 | Shim | 240029 | 1 | TH=0.30mm |
| 55 | Shim | 240030 | 1 | TH=0.50mm |
| 56 | Bearing cover | 240021 | 1 | |
| 57 | Cross recessed screw | 956094 | 4 | |
| 58 | Spring washer | 941906 | 4 | |
| 59 | Hexagon nut | 955806 | 1 | |
| 60 | Spring washer | 955927 | 1 | |
| 61 | Key | 35168 | 1 | |
| 62 | Roller bearing | 240023 | 1 | |
| 63 | Ring | 240032 | 1 | |
| 64 | Shim | 240033 | 1 | TH=1.2mm |
| 64 | Shim | 240034 | 1 | TH=1.5mm |
| 64 | Shim | 240035 | 1 | TH=1.8mm |
| 64 | Shim | 240036 | 1 | TH=2.0mm |
| 65 | Cover | 240947 | 1 | |
| 66 | Gasket | 240948 | 1 | |
| 67 | Cross recessed screw | 956205 | 12 | |
| 68 | Gasket | 239896 | 1 | |
| 69 | Hexagon nut | 940197 | 3 | |
| 70 | Repair kit | 845240 | 1 | See group 10A |
| 70 | Spring washer | 941906 | 3 |
| Item | Part Name | Part No. |
| 57 | Cross recessed screw 956094 | 956094 |
| Details | |
| Engine model | D120A, TD120A D42A D70B D70CRC, TD70CRC DH10A, DH10A 285, DH10A 360, DH10A Rail, THD102KD, THD102KB, THD102K-KB TAD1030GE, TAD1031GE, TAD1032GE TAD1030V TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TAD1630G, TAD1630GE TAD1630P TAD1630V TAD1631G, TAD1631GE TD100CRC TD100G-87 TD1010G, TWD1010G TD121G-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD121GP-87 TD164KAE TD45B TD610V, TWD610V, TD630VE, TWD630VE TD70B TD71A, TID71A, TWD731VE, TAD730V, TWD740VE TID100KGP-87 TID162AG, TID162AGP TID162AG, TID162AGP, TID162AP, TID162APB TID162AP, TID162APB TWD1210P TWD1210V TWD1211P TWD1211V TWD1620G TWD1630G TWD1630P TWD1630V TWD710V, TAD730V |
| Application | Control Motor Type ''Crouzet'' and Installation Comp, MOXXXXX/14584- Control Motor Type ''Crouzet'' and Installation Comp., MOXXXXX/14584-: A Control Motor Type ''Crouzet'' and Installation Comp., MOXXXXX/14584-: B Fan, Fan- and Belt Protection with Installation Comp., Early Pr Fan, Fan- and Belt Protection with Installation Comp., Late Pro Fan, Fan-and Belt Guard with Installation Components Fan-and Belt Protection with Installation COMP.MOXXXXX/33072-: A Fuel Injection Pump Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option. Fuel Injection Pump, Components Fuel Injection Pump, Components: 3828997 Fuel Injection Pump, Components: 864850,866208 Fuel Injection Pump: 240343 Fuel Injection Pump: 240406 Fuel Injection Pump: 240532 Fuel Injection Pump: 241510 Fuel Injection Pump: 241699 Fuel Injection Pump: 243440 Fuel Injection Pump: 243625 Fuel Injection Pump: 467466 FUEL INJECTION PUMP: 836908 Fuel Injection Pump: 836909 Fuel Injection Pump: 836910 Fuel Injection Pump: 836911 Fuel Injection Pump: 837046 Fuel Injection Pump: 837914 Fuel Injection Pump: 842287 FUEL INJECTION PUMP: 842738 Fuel Injection Pump: 843512 FUEL INJECTION PUMP: 843550 Fuel Injection Pump: 843569 Fuel Injection Pump: 843978 Fuel Injection Pump: 843979 Fuel Injection Pump: 844056 Fuel Injection Pump: 844442 Fuel Injection Pump: 845124 Fuel Injection Pump: 845275 FUEL INJECTION PUMP: 845369 Fuel Injection Pump: 845382 FUEL INJECTION PUMP: 845928 Fuel Injection Pump: 846359 Fuel Injection Pump: 846360 Fuel Injection Pump: 846605 Fuel Injection Pump: 846606 Fuel Injection Pump: 846607 Fuel Injection Pump: 846682 Fuel Injection Pump: 847261 Fuel Injection Pump: 847359 Fuel Injection Pump: 847437 Fuel Injection Pump: 847438 Fuel Injection Pump: 847612 Fuel Injection Pump: 847768 Fuel Injection Pump: 849261 Fuel Injection Pump: 870988 FUEL SYSTEM Fuel System, Standard Model Fuel System: A Fuel System: B Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: A Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: B Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: C Injectors, Pressure Pipes and Leak-off Line Injectors, Pressure Pipes and Leak-off Line: A Injectors, Pressure Pipes and Leak-off Line: B Injectors, Pressure Pipes and Leak-off Line: SN 2160018925- Injectors, Pressure Pipes and Leak-off Line: SN 2160023749- Injectors, Pressure Pipes and Leak-off Line: SN-2160018924 Injectors, Pressure Pipes and Leak-off Line: SN-2160023748 Radiator and Installation Comps. Starter Starter Motor, Components Starter Motor, Oil Proofed, Components STARTER MOTOR: 843510 STARTER MOTOR: 843511 STARTER: 240501 Starter: 4774617 STARTER: 842774 STARTER: 842775 Starter: 843510 Starter: 843511 |
| Specification | |
| Descriptions | (243714) Alt D42A PP SPEC. 16053, 867638. L=16mm |
