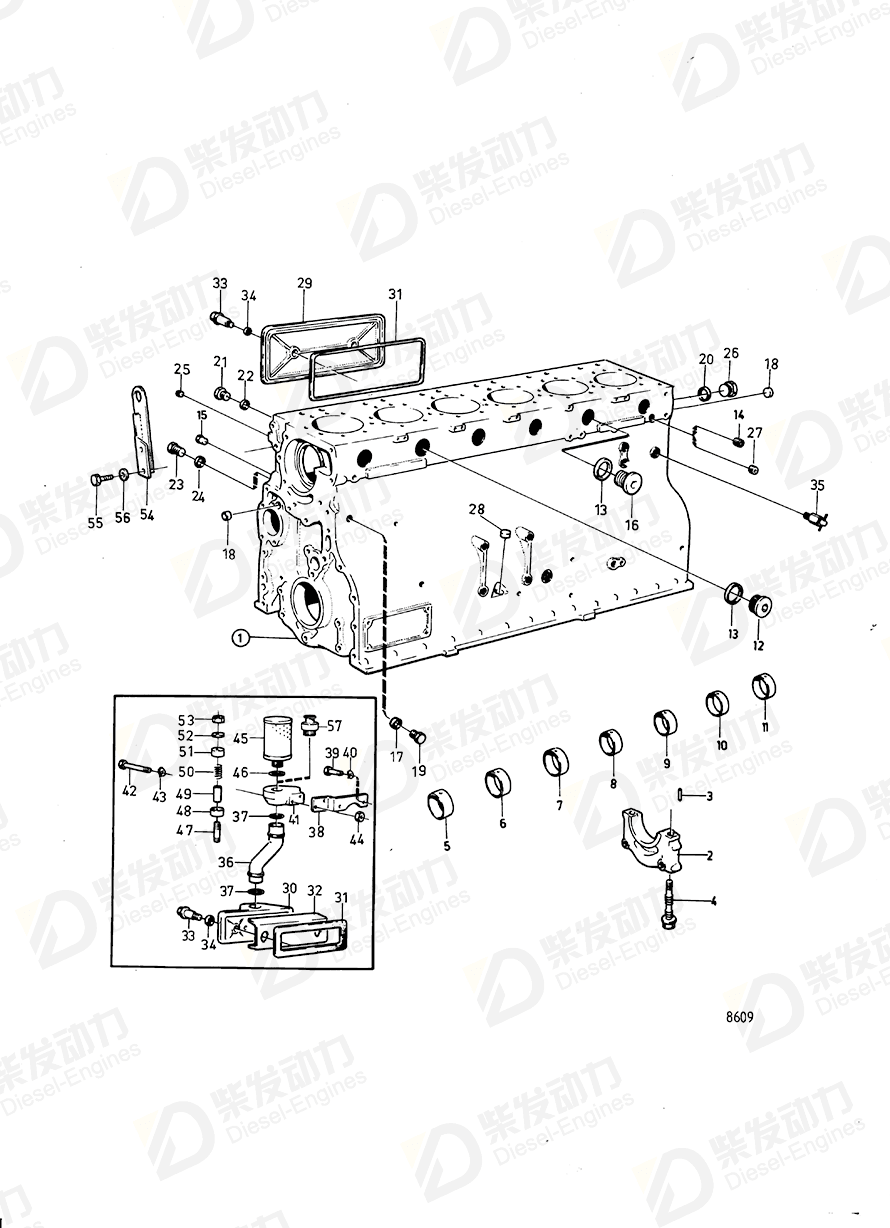

Cylinder block 422960
| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 422960 | 1 | Replaced by cylinder block 422960, 1pc pipe 422970 and 1pc union 466908. |
| 3 | Pin | 422426 | 1 | |
| 4 | Flange screw | 422067 | 14 | |
| 5 | Bushing | 422076 | 1 | |
| 6 | Bushing | 422077 | 1 | |
| 7 | Bushing | 422078 | 1 | |
| 8 | Bushing | 422079 | 1 | |
| 9 | Bushing | 422080 | 1 | |
| 10 | Bushing | 422081 | 1 | |
| 11 | Bushing | 422082 | 1 | |
| 12 | Plug | 467367 | 5 | |
| 12 | Plug | 821335 | 1 | |
| 13 | Gasket | 469328 | 6 | |
| 14 | Plug | 952075 | 1 | |
| 15 | Plug | 422369 | 7 | |
| 16 | Plug | 825815 | 1 | |
| 17 | Gasket | 11996 | 1 | |
| 18 | Cap plug | 955083 | 3 | |
| 19 | Plug | 180761 | 1 | |
| 20 | Gasket | 468463 | 1 | |
| 21 | Plug | 16318 | 3 | |
| 22 | Gasket | 907132 | 3 | |
| 23 | Plug, 3/4-UNF | 948187 | 2 | |
| 24 | Gasket | 18818 | 2 | |
| 25 | Plug | 952075 | 1 | |
| 26 | Plug | 467366 | 1 | |
| 27 | Plug | 952077 | 1 | |
| 28 | Cap plug | 955082 | 1 | |
| 29 | Inspection cover | 423120 | 2 | |
| 30 | Inspection cover | 423121 | 1 | |
| 31 | Gasket | 469823 | 3 | |
| 32 | Splash plate | 422542 | 1 | |
| 33 | Shoulder screw | 422541 | 6 | |
| 34 | Sealing ring | 469846 | 6 | |
| 35 | Shut-off cock | 949918 | 1 | (82745) |
| 36 | Breather pipe | 843433 | 1 | |
| 37 | Sealing ring | 421158 | 2 | |
| 38 | Bracket | 843370 | 1 | |
| 39 | Hexagon screw | 940114 | 2 | |
| 40 | Spring washer | 942336 | 2 | |
| 41 | Connector housing | 843356 | 1 | |
| 42 | Hexagon screw | 955529 | 2 | |
| 43 | Spring washer | 941907 | 2 | |
| 44 | Hexagon nut | 955826 | 2 | |
| 45 | Filter | 876069 | 1 | |
| 46 | Gasket | 843449 | 1 | |
| 47 | Stud | 924058 | 1 | |
| 48 | Valve disc | 842972 | 1 | |
| 49 | Spacer sleeve | 842974 | 1 | |
| 50 | Spring | 843301 | 1 | |
| 51 | Protecting casing | 842975 | 1 | |
| 52 | Sealing ring | 421158 | 1 | |
| 53 | Lock nut | 963105 | 1 | |
| 55 | Hexagon screw | 955561 | 2 | |
| 56 | Spring washer | 940280 | 2 | |
| 57 | Hose attachment | 845260 | 1 | Alt. |
| Item | Part Name | Part No. |
| 1 | Cylinder block 422960 | 422960 |
| Details | |
| Engine model | TD100CHC TD100CRC TD100G-87 |
| Application | Cylinder Block and Related Parts Cylinder Block: 422960 Cylinder Block: A Cylinder Block: B |
| Specification | |
| Descriptions | Repl by 479650 Replaced by cylinder block 422960, 1pc pipe 422970 and 1pc union 466908. Spare parts production |
