Volvo 479752 Cylinder block 479752 Engine spare parts-Generator engine parts Mall

Cylinder block 479752

0 reviews Write a review

Qty

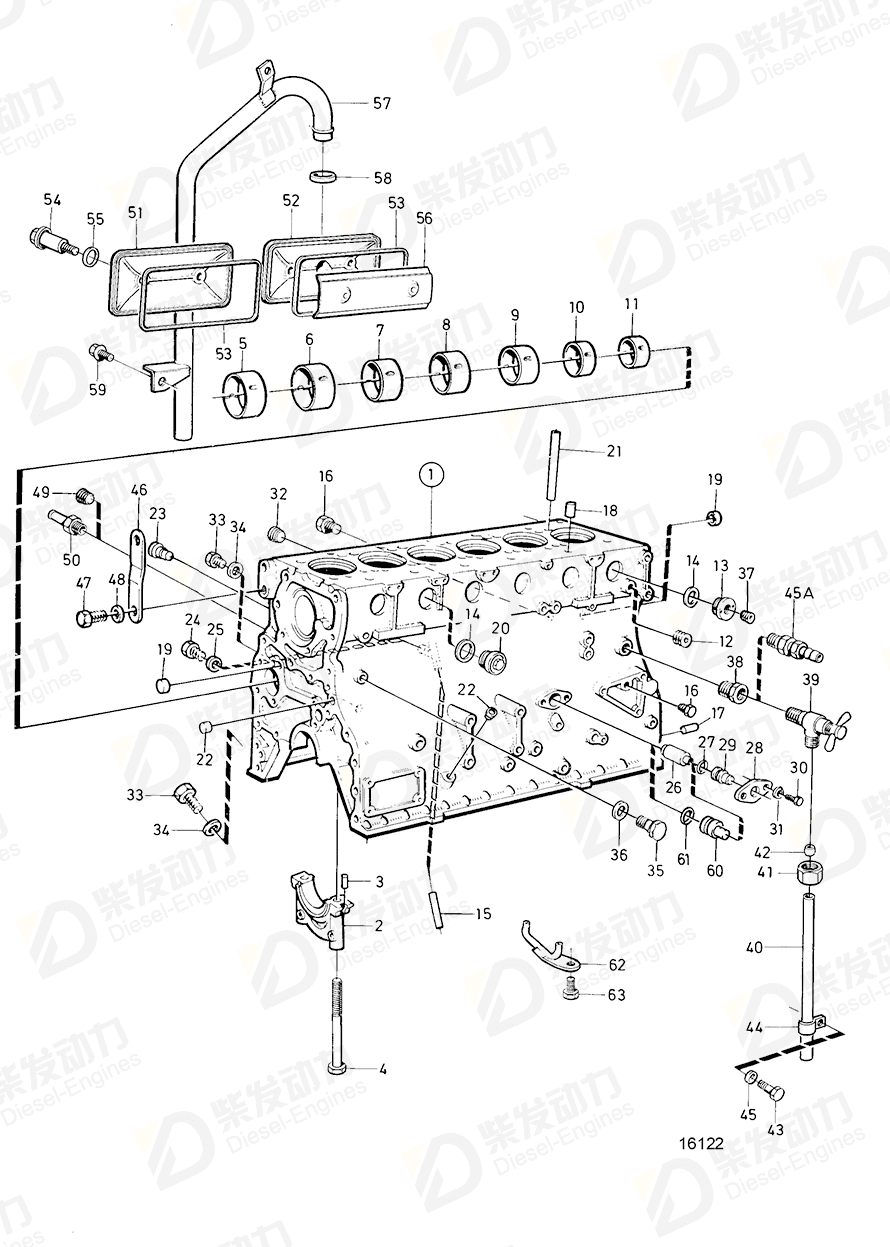

No.	Part Name	Part Number	Qty	Description
1	Cylinder block	479752	1	Spare part design., Repl by 479650
3	Pin	422426	1
4	Flange screw	422067	14
5	Bushing, camshaft	479680	1
6	Bushing, camshaft	479681	1
7	Bushing, camshaft	479682	1
8	Bushing, camshaft	479683	1
9	Bushing, camshaft	479684	1
10	Bushing, camshaft	479685	1
11	Bushing, camshaft	479686	1
12	Plug	952075	1
13	Plug	821335	1
14	Gasket	469328	7
15	Pipe	468563	1
16	Plug	479979	7
17	Pin	191171	2
18	Pin	950543	12
19	Cap plug	955083	2
20	Plug	467367	5
21	Pipe	421068	1
22	Cap plug	955082	4
23	Plug	422369	2
24	Plug	961892	1	D42A PP SPEC. 16053, 867638
25	Gasket	969011	1
26	Pipe	424801	1
27	O-ring	949657	1	(925060)
28	Flange	424714	1
29	Plug	424715	1
30	Hexagon screw	955513	2
31	Spring washer	941906	2
32	Plug	952075	1
33	Plug, 3/4-UNF	948187	2
34	Gasket	18818	2
35	Plug	180761	1
36	Gasket	11996	1
37	Plug	479977	1
38	Nipple	479954	1	(190130)
39	Faucet	479970	1	Earlier prod (820436)
40	Drain tube	821889	1
41	Fitting nut	954357	1
42	Fitting	954365	1
43	Hexagon screw	940133	1
44	Clamp	942400	1
45	Washer	940097	1
47	Hexagon screw	955561	2
48	Spring washer	940280	2
49	Plug	479977	1
50	Hose nipple	961654	1
51	Inspection cover	423120	2
52	Inspection cover	423121	1
53	Gasket	469823	3
54	Shoulder screw	422541	6
55	Sealing ring	471856	6
56	Splash plate	422542	1
57	Pipe	422757	1
57	Tube, oil sump for inclination	3825487	1	For heavy inclination
58	Sealing ring	421158	1
59	Flange screw	942402	2
45A	Shut-off cock	949918	1	(82745)

Item	Part Name	Part No.
1	Cylinder block 479752	479752
