Cylinder head 3801571

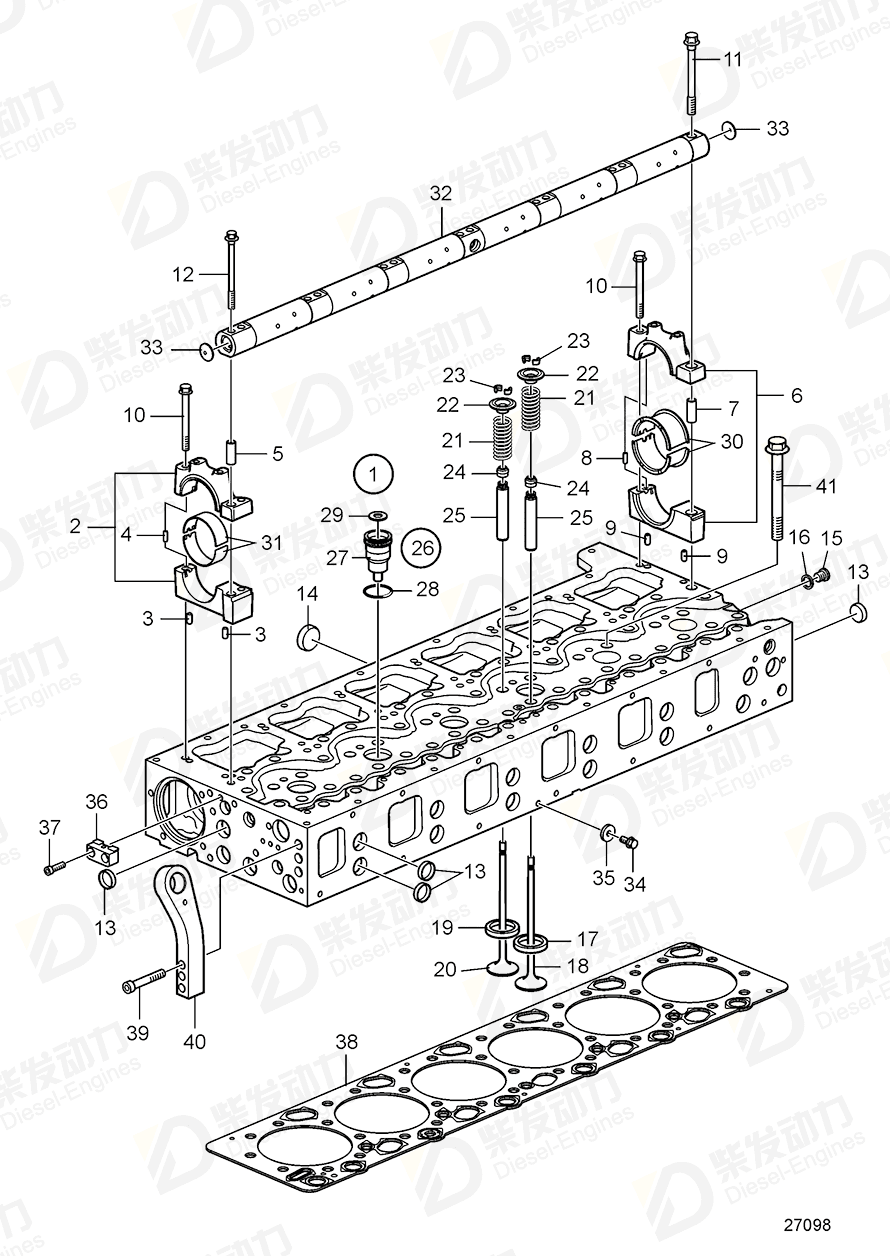

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3801571 | 1 | Including valves. |
| 2 | Bearing housing, front | 20813823 | 6 | Bearing housing 1-6 |
| 3 | Pin | 950562 | 2 | |
| 4 | Pin | 950542 | 1 | |
| 5 | Pin | 1636468 | 1 | |
| 6 | Bearing housing, rear | 20907267 | 1 | |
| 7 | Pin | 1636468 | 1 | |
| 8 | Pin | 950542 | 1 | |
| 9 | Pin | 950562 | 2 | |
| 10 | Flange screw | 975105 | 7 | M10x100mm |
| 11 | Flange screw | 20412482 | 1 | M14x123mm |
| 12 | Flange screw | 21344778 | 12 | M10x120mm |
| 13 | Expansion plug | 24426721 | 16 | D=20mm |
| 14 | Expansion plug | 24426722 | 6 | D=40mm |
| 15 | Plug | 968063 | 1 | |
| 16 | Gasket | 11996 | 1 | |
| 17 | Valve seat, exhaust | 20900319 | 12 | |
| 18 | Exhaust valve | 20768519 | 12 | |
| 19 | Valve seat, intake | 21405770 | 12 | |
| 20 | Inlet valve | 20712128 | 12 | |
| 21 | Valve spring | 21310068 | 24 | |
| 22 | Valve spring washer | 20510743 | 24 | |
| 23 | Valve cotter | 20510747 | 48 | |
| 24 | Valve seal | 20864662 | 24 | |
| 25 | Valve guide | 20919484 | 24 | |
| 26 | Injector sleeve | 21274700 | 6 | |
| 28 | O-ring | 20536487 | 1 | |
| 29 | Washer | 21261987 | 1 | |
| 30 | Camshaft bearing kit | 21006109 | 1 | |
| 31 | Camshaft bearing kit | 20999623 | 6 | |
| 32 | Rocker arm shaft | 22224709 | 1 | |
| 33 | Expansion plug | 955096 | 2 | |
| 34 | Flange screw | 994383 | 1 | |
| 35 | Washer | 945583 | 1 | |
| 36 | Bracket | 20559837 | 1 | |
| 37 | Hex. socket screw | 959220 | 2 | |
| 38 | Cylinder head gasket | 21510072 | 1 | |
| 39 | Hex. socket screw | 977282 | 3 | |
| 40 | Lifting eye | 21732324 | 1 | |
| 41 | Flange screw | 21345131 | 38 |
| Item | Part Name | Part No. |
| 1 | Cylinder head 3801571 | 3801571 |
| Details | |
| Engine model | TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE, TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE, TAD1350GE, TAD1351GE, TAD1352GE, TAD1353GE, TAD1354GE, TAD1355GE TAD1350VE TAD1360VE TAD1361VE TAD1363VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE |
| Application | Cylinder Head Standard Cylinder Head without VCB |
| Specification | |
| Descriptions | Including valves. |
