Volvo 276821 Cylinder head gasket 276821 Engine spare parts-Generator engine parts Mall

Cylinder head gasket 276821

0 reviews Write a review

Qty

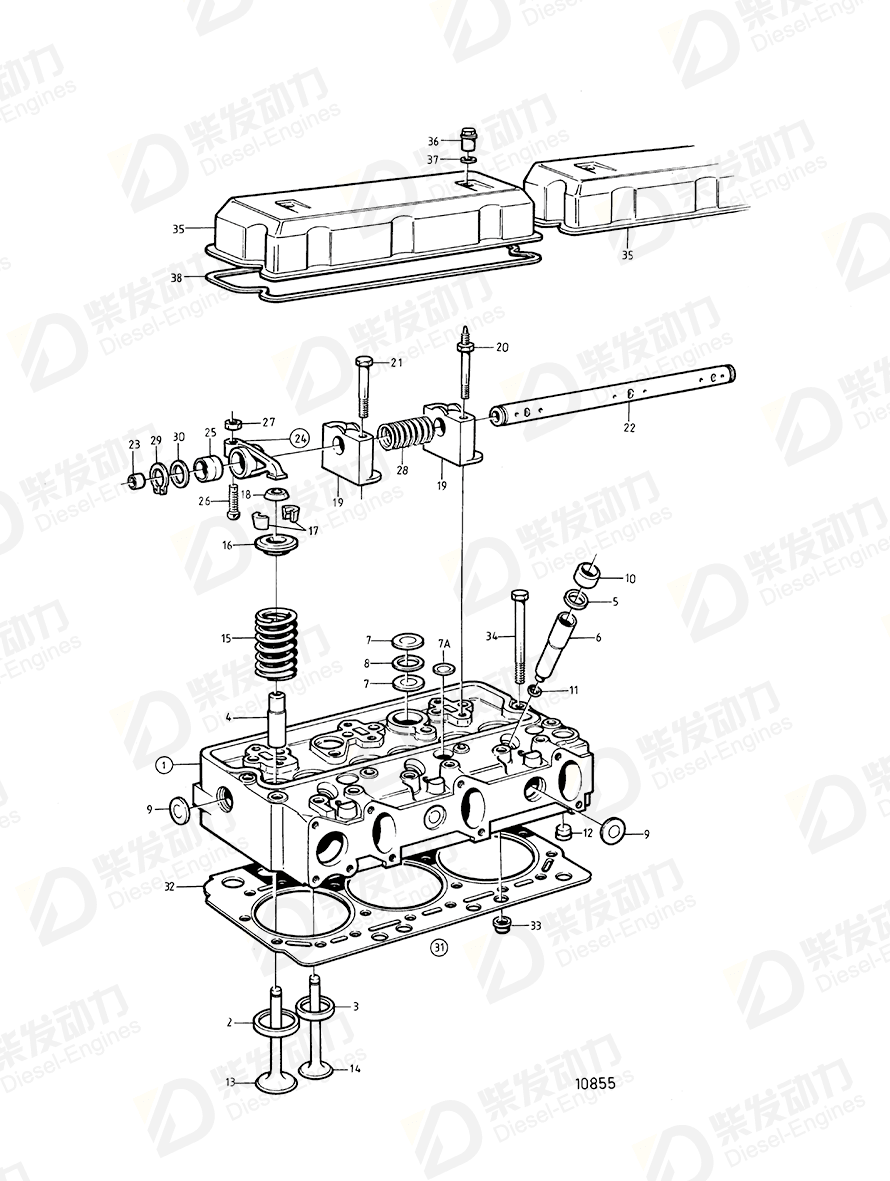

No.	Part Name	Part Number	Qty	Description
1	Cylinder head	3803099	2	SN-2061157454, (465780)
2	Valve seat	465158	6	Std D
3	Valve seat	465155	6	Std D
4	Valve guide	477877	12	(477792)
5	Sealing ring	466405	6
6	Sleeve	877094	6	(466404)
7	Expansion plug	477026	8	(192426)
8	Gasket	947626	4
9	Expansion plug	477024	8	(192211)
10	Ring	466420	6
11	O-ring	466922	6	(944124)
12	Jet	465420	4
13	Inlet valve	3825723	6	(420553)
14	Exhaust valve	8192143	6	(465549)
15	Valve spring	465233	12
16	Valve spring washer	465550	12
17	Valve cotter	1677875	24
18	Valve stem seal	859171	12	Included in cylinder head exch
19	Bearing bracket	1665204	6
20	Stud	471512	4
21	Flange nut	471513	8
22	Rocker arm shaft	465790	2
23	Cap plug	955083	4
24	Rocker arm	420129	6
24	Rocker arm	420132	6
25	Bushing	420125	12
26	Ball stud	422993	12
27	Hexagon nut	940175	12
28	Compression spring	411139	4
29	Retaining ring	914456	4
30	Shim	400722	4
31	Cylinder head gasket	276821	2
33	Sealing ring	422413	2	D=11mm
33	Sealing ring	465784	12
33	Sealing ring	466421	16	D=16mm
34	Flange screw	465840	40
35	Valve cover	465951	2
36	Cap nut	465961	4
37	Sealing ring	471856	4
38	Gasket	465952	2
7A	Expansion plug	477026	6	(192426)

Item	Part Name	Part No.
31	Cylinder head gasket 276821	276821

Details
Engine model	TD610G TD610G, TWD610G TD610M TD610V TD610V, TWD610V TD61A, TD61AW TD630ME TD630ME, TWD630ME TD630VE TD640VE TWD610G TWD610P TWD610V TWD630ME TWD630VE
Application	Cylinder Head Cylinder Head: A Cylinder Head: B Repair Kit Repair Kits Repair Kits: A Repair Kits: B Repair Kits: C
Specification
Descriptions	(275774) See group 99
