Cylinder liner kit 275626

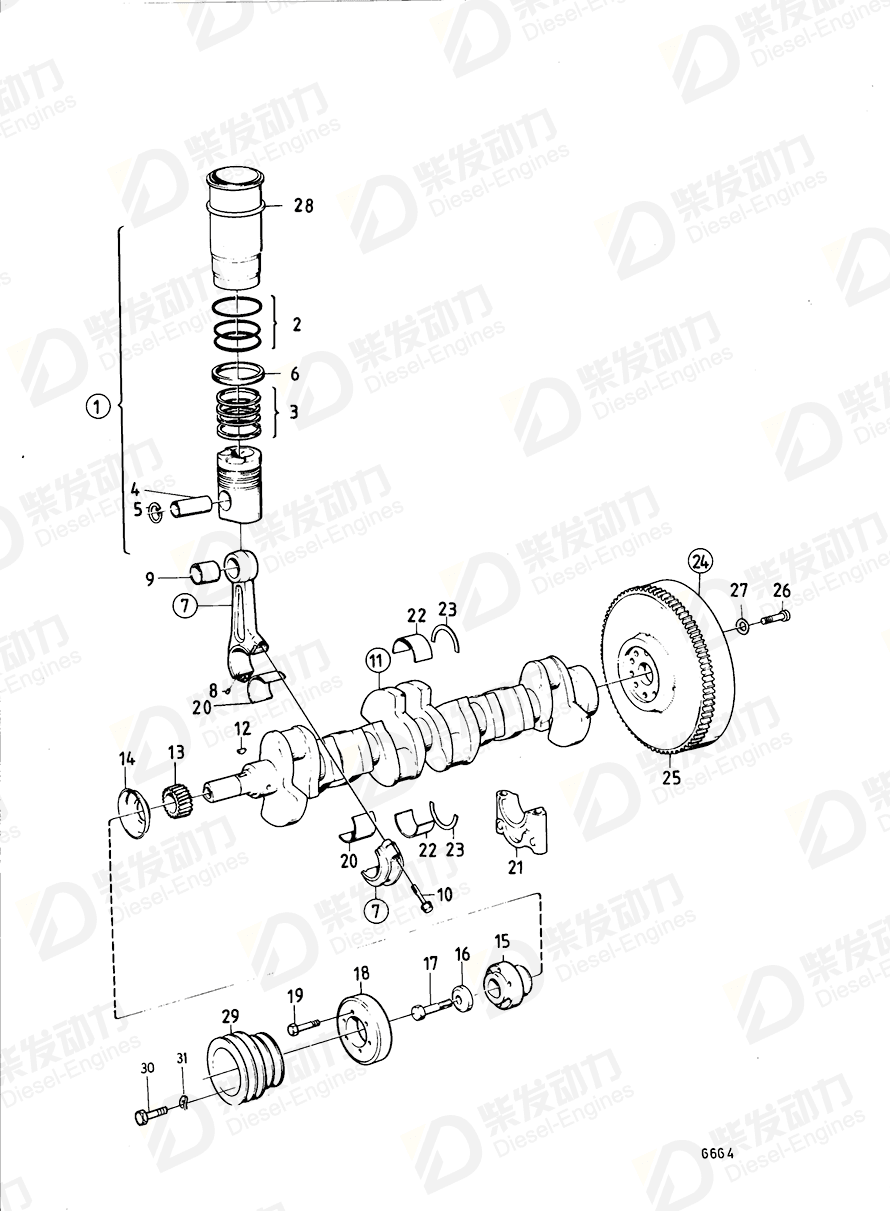

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 275626 | 1 | |
| 2 | Gasket kit | 270950 | 6 | |
| 3 | Piston ring kit | 270603 | 6 | |
| 4 | Gudgeon pin | 423342 | 6 | |
| 5 | Snap ring | 423124 | 12 | |
| 7 | Connecting rod | 846864 | 6 | |
| 9 | Bushing | 470434 | 6 | |
| 10 | Flange screw | 1545479 | 12 | (417464) |
| 11 | Crankshaft | 848769 | 1 | SN-120190308 |
| 12 | Woodruff key | 422253 | 1 | |
| 13 | Gear | 423080 | 1 | |
| 14 | Oil deflector | 423177 | 1 | |
| 15 | Hub | 470595 | 1 | |
| 16 | Washer | 422124 | 1 | |
| 17 | Hexagon screw | 941494 | 1 | |
| 18 | Vibration damper | 424525 | 1 | |
| 19 | Hex. socket screw | 956601 | 12 | Repl by 1pc 829856 4PCS 829857 4PCS 829858 4PCS 941905 4PCS 955780., L=32mm |
| 20 | Big-end bearing kit | 270130 | 6 | Std D |
| 20 | Big-end bearing kit | 270131 | 6 | 0,25mm u.s |
| 20 | Big-end bearing kit | 270132 | 6 | 0,50mm u.s |
| 20 | Big-end bearing kit | 270133 | 6 | U.S=0,75mm |
| 22 | Main bearing kit | 270449 | 7 | Std |
| 22 | Main bearing kit | 270450 | 7 | 0.25mm u.s |
| 22 | Main bearing kit | 270451 | 7 | 0.50mm u.s |
| 22 | Main bearing kit | 270452 | 7 | 0.75mm u.s |
| 23 | Thrust washer kit | 276791 | 1 | Std D |
| 23 | Thrust washer kit | 276792 | 1 | 0,1mm o.s |
| 23 | Thrust washer kit | 276793 | 1 | 0,2mm o.s |
| 24 | Flywheel | 837040 | 1 | BB115B, AQ130C MO-15301/XXXX. BB115A MO-1400/XXXX. |
| 24 | Flywheel, 10 hole | 864402 | 1 | |
| 25 | Gear ring | 423082 | 1 | |
| 25 | Gear ring | 822020 | 1 | BB115B, AQ130C MO-15301/XXXX. BB115A MO-1400/XXXX. |
| 26 | Hexagon screw | 941570 | 10 | |
| 27 | Washer | 467773 | 10 | |
| 28 | Adjusting washer | 468271 | 1 | TH=0.20mm |
| 28 | Adjusting washer | 468272 | 1 | TH=0.30mm |
| 28 | Adjusting washer | 468273 | 1 | TH=0.50mm |
| 29 | Pulley | 822709 | 1 | |
| 31 | Spring washer | 941909 | 12 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| Item | Part Name | Part No. |
| 1 | Cylinder liner kit 275626 | 275626 |
| Details | |
| Engine model | TAD121CHC TD121CHC TD121CRC |
| Application | Crankshaft and Related Parts Crankshaft and Related Parts: A Crankshaft and Related Parts: B Repair Kits Repair Kits: A Repair Kits: B |
