Delivery pipe, cyl 5 3826019

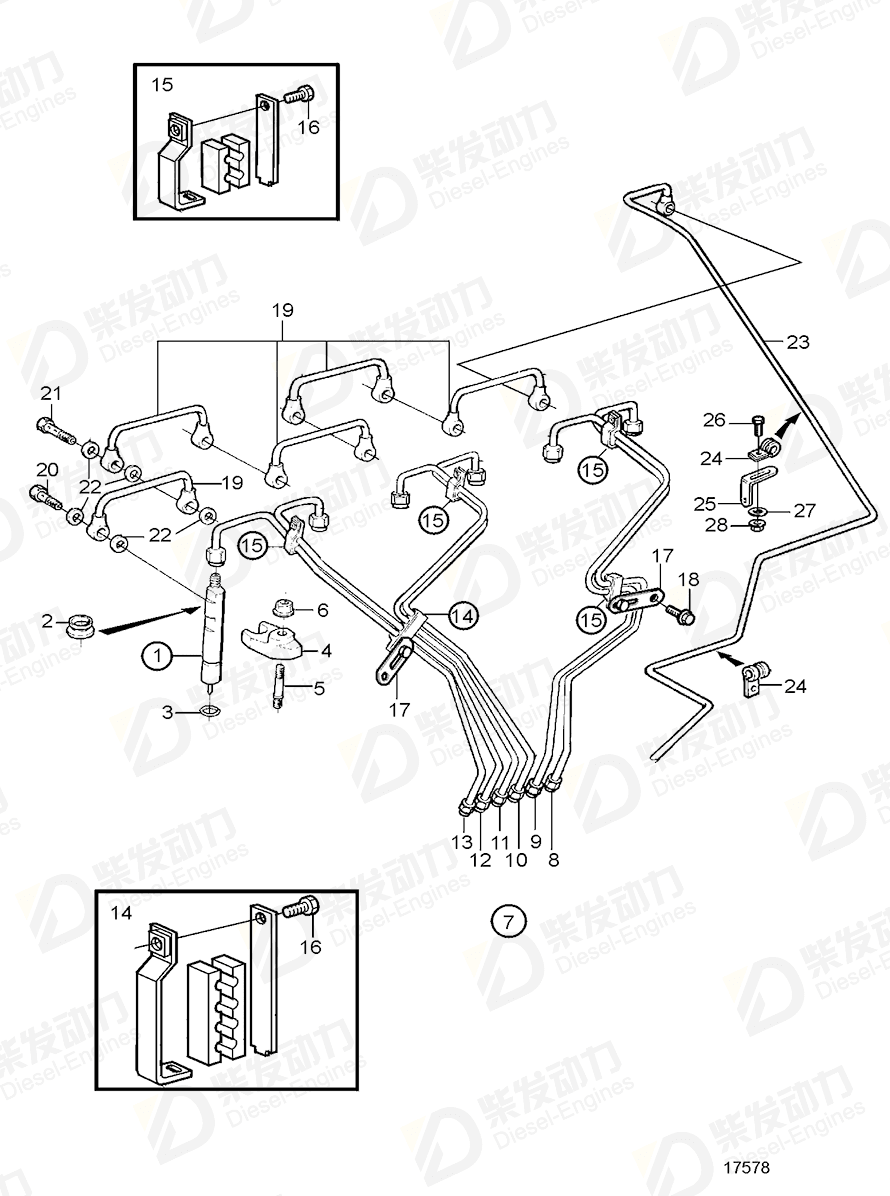

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injector | 865568 | 6 | |
| 1 | Injector | 3803283 | 6 | |
| 2 | Sealing ring, injector-valve cover | 1543751 | 6 | |
| 3 | O-ring | 1543574 | 6 | |
| 4 | Yoke | 1543497 | 6 | |
| 5 | Stud | 470560 | 6 | |
| 6 | Flange nut | 1543499 | 6 | |
| 8 | Delivery pipe, cyl 1 | 3826015 | 1 | |
| 9 | Delivery pipe, cyl 2 | 3826016 | 1 | |
| 10 | Delivery pipe, cyl 3 | 3826017 | 1 | |
| 11 | Delivery pipe, cyl 4 | 3826018 | 1 | |
| 12 | Delivery pipe, cyl 5 | 3826019 | 1 | |
| 13 | Delivery pipe, cyl 6 | 3826020 | 1 | |
| 14 | Attaching clamp, 4-pipes | 8194353 | 1 | SN-2120231514 |
| 15 | Attaching clamp | 8194351 | 7 | 2-pipe |
| 16 | Flange screw | 946544 | 8 | For THD102KB and THD102KD. |
| 17 | Bracket | 422323 | 2 | |
| 18 | Flange screw | 946544 | 2 | For THD102KB and THD102KD. |
| 19 | Leak-off line | 1543683 | 5 | |
| 20 | Hollow screw | 74033 | 2 | |
| 21 | Hollow screw | 966834 | 5 | (74034) |
| 22 | Gasket | 947620 | 16 | (233321) |
| 23 | Leak-off line | 865360 | 1 | (862566) |
| 24 | Clamp | 952623 | 2 | |
| 25 | Bracket | 965553 | 1 | |
| 26 | Cross recessed screw | 956094 | 1 | |
| 27 | Washer | 955892 | 1 | |
| 28 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| Item | Part Name | Part No. |
| 12 | Delivery pipe, cyl 5 3826019 | 3826019 |
| Details | |
| Engine model | TAD1630G, TAD1630GE TAD1630P TAD1630V |
| Application | Injectors, Pressure Pipes and Leak-off Line Injectors, Pressure Pipes and Leak-off Line: SN 2160023749- |
| Specification | |
| Descriptions | Cyl 5, SN2160023749- |
