Dipstick 20912368

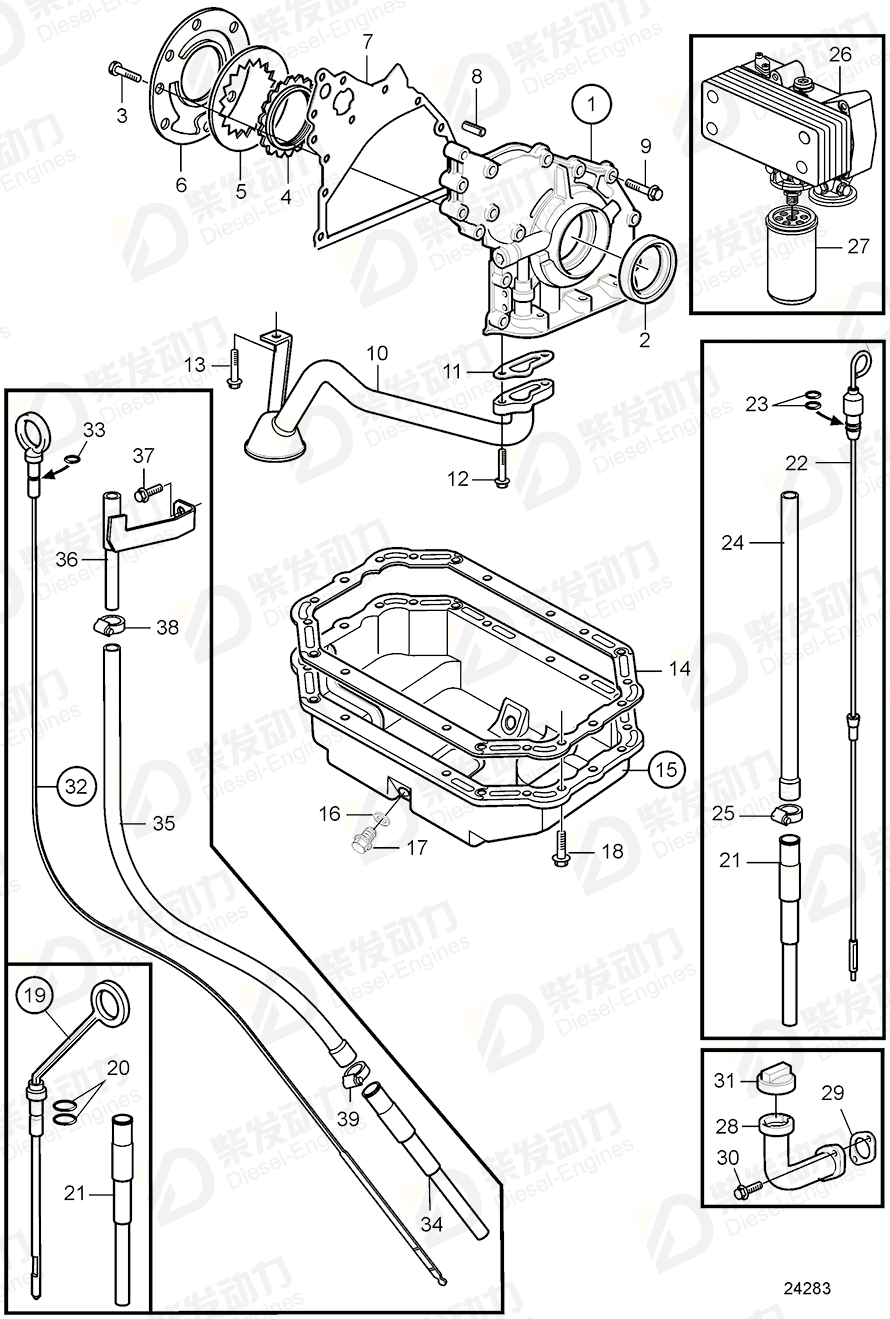

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 20574451 | 1 | |
| 2 | Crankshaft seal | 20459168 | 1 | |
| 3 | Hex. socket sunk scr | 20451738 | 8 | |
| 7 | Gasket | 20537029 | 1 | |
| 8 | Spring pin | 20405603 | 1 | |
| 9 | Flange screw | 20412324 | 10 | |
| 10 | Suction pipe | 20460015 | 1 | |
| 11 | Gasket | 20405888 | 1 | |
| 12 | Flange screw | 984735 | 2 | |
| 13 | Flange screw | 20405792 | 1 | |
| 14 | Gasket | 20460022 | 1 | |
| 15 | Oil pan | 20460019 | 1 | |
| 16 | Gasket | 11998 | 2 | |
| 17 | Plug | 20405506 | 2 | |
| 18 | Flange screw | 20405792 | 28 | |
| 19 | Dipstick | 20912368 | 1 | (20459158) |
| 20 | Sealing ring | 20412343 | 2 | |
| 21 | Guide tube | 20459164 | 1 | |
| 22 | Dipstick | 20971226 | 1 | Oil dipstick, flexible, (for std. sump) |
| 23 | O-ring | 20926322 | 2 | |
| 24 | Guide tube | 20926318 | 1 | |
| 25 | Hose clamp | 20821066 | 1 | |
| 27 | Oil filter | 3831236 | 1 | |
| 28 | Tube | 20537521 | 1 | |
| 29 | Gasket | 20405825 | 1 | |
| 30 | Flange screw | 984734 | 2 | |
| 31 | Filler cap | 20405835 | 1 | |
| 32 | Oil dipstick | 21196093 | 1 | Option |
| 33 | O-ring | 20460218 | 1 | |
| 34 | Guide tube | 20459164 | 1 | |
| 35 | Guide tube | 20840336 | 1 | |
| 36 | Bracket | 20840347 | 1 | |
| 37 | Flange screw | 20405792 | 1 | |
| 38 | Hose clamp | 20460215 | 1 | |
| 39 | Hose clamp | 20460214 | 1 |
| Item | Part Name | Part No. |
| 19 | Dipstick 20912368 | 20912368 |
| Details | |
| Engine model | TAD620VE TAD650VE, TAD660VE |
| Application | Lubricating System with Central Oil Sump Lubricating System with Deep Front Oil Sump Lubricating System with Shallow Oil Sump |
| Specification | |
| Descriptions | (20459158) SN01099384- |
