Disc 862786

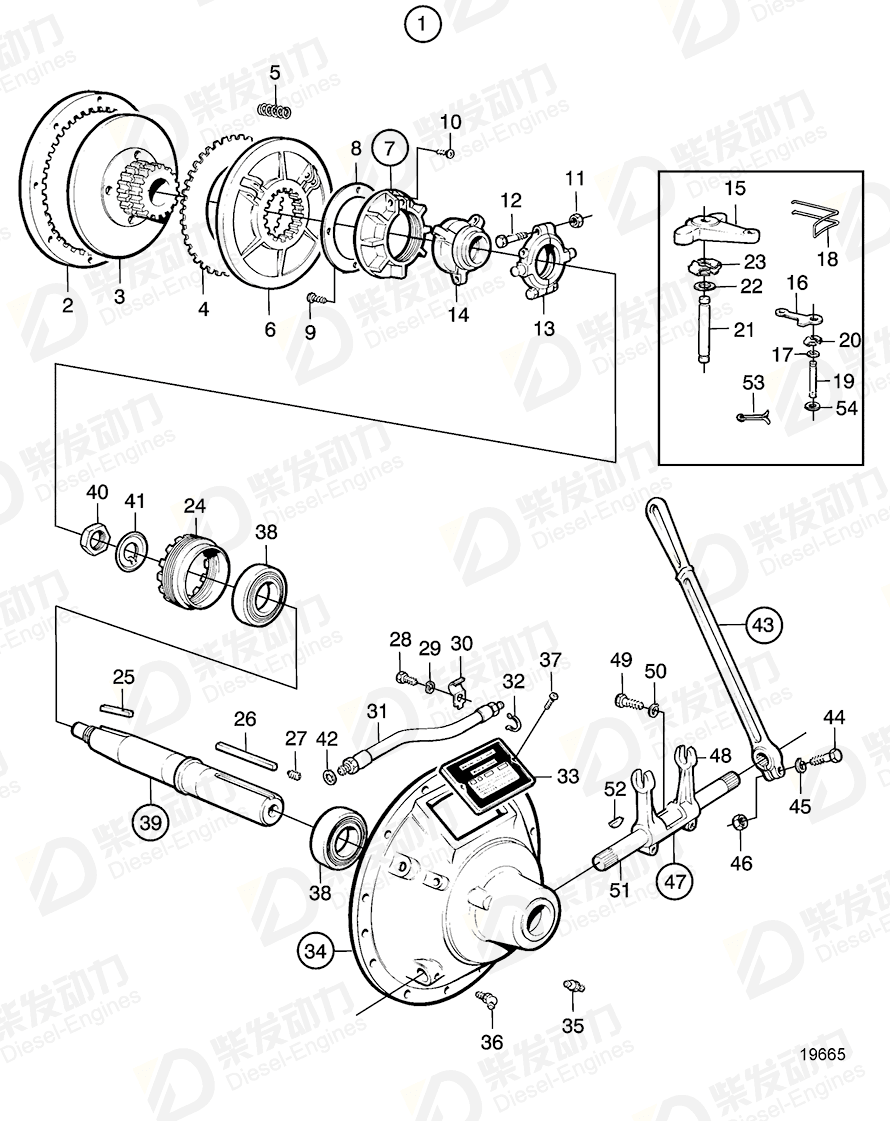

| No. | Part Name | Part Number | Qty | Description |
| 1 | Friction clutch | 862735 | 1 | 11 1/2''- AP111 single PTO SER.62596. |
| 3 | Drive plate | 6603890 | 1 | |
| 4 | Disc | 862786 | 1 | |
| 6 | Plate | 6603881 | 1 | |
| 7 | Adjusting ring | 846504 | 1 | |
| 8 | Adjusting plate | 846505 | 1 | |
| 9 | Drive screw | 846507 | 4 | |
| 10 | Lock screw | 846506 | 1 | |
| 13 | Release bearing | 846503 | 1 | |
| 14 | Release sleeve | 6603843 | 1 | |
| 15 | Lever | 6603832 | 3 | |
| 16 | Link | 6603849 | 6 | |
| 17 | Washer | 6607836 | 12 | |
| 18 | Spring | 6603882 | 3 | |
| 19 | Pin | 865053 | 6 | (6607834) |
| 20 | Striker plate | 6607835 | 12 | |
| 21 | Pin | 846500 | 3 | |
| 22 | Washer | 846502 | 6 | |
| 23 | Striker plate | 846501 | 6 | |
| 25 | Key | 846489 | 1 | |
| 26 | Key | 862638 | 1 | |
| 27 | Lock screw | 846495 | 1 | |
| 28 | Screw | 846492 | 1 | |
| 29 | Lock washer | 6603869 | 1 | |
| 30 | Striker plate | 846487 | 1 | |
| 31 | Lubricating hose | 846488 | 1 | |
| 32 | Lock ring | 846493 | 1 | |
| 33 | Cover | 846490 | 1 | |
| 34 | Housing | 846494 | 1 | |
| 35 | Lubricating nipple | 846496 | 1 | |
| 36 | Lubricating nipple | 846497 | 2 | |
| 37 | Screw | 846491 | 2 | |
| 38 | Bearing | 18499 | 2 | (6603871) |
| 39 | Shaft | 862639 | 1 | |
| 40 | Nut | 6603877 | 1 | |
| 41 | Lock washer | 6603878 | 1 | |
| 42 | Lock washer | 846557 | 1 | |
| 43 | Hand lever | 846508 | 1 | |
| 44 | Screw | 846509 | 1 | |
| 45 | Spring washer | 6603859 | 1 | |
| 46 | Nut | 846510 | 1 | |
| 47 | Fork | 6603856 | 1 | |
| 48 | Fork | 6603857 | 1 | |
| 49 | Screw | 6603858 | 2 | |
| 50 | Spring washer | 6603859 | 2 | |
| 51 | Shaft | 6603896 | 1 | |
| 52 | Key | 6603893 | 2 | |
| 53 | Split pin | 865054 | 6 | |
| 54 | Washer | 865055 | 6 |
| Item | Part Name | Part No. |
| 4 | Disc 862786 | 862786 |
| Details | |
| Engine model | TD520VE TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD61A, TD61AW, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TID61AG, TD71A, TD71AW, TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TID71A, TID71AG, TID71AGP, TID71AP, TID71APB, TID61AGP TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TD720VE TWD610P, TWD610PB, TWD710P, TWD710PB, TAD730P |
| Application | Clutch, Components Clutch: 842518 Clutch: 848875 Clutch: 849583 Clutch: 862735 Clutch: 862736 |
