Disc spring 942385

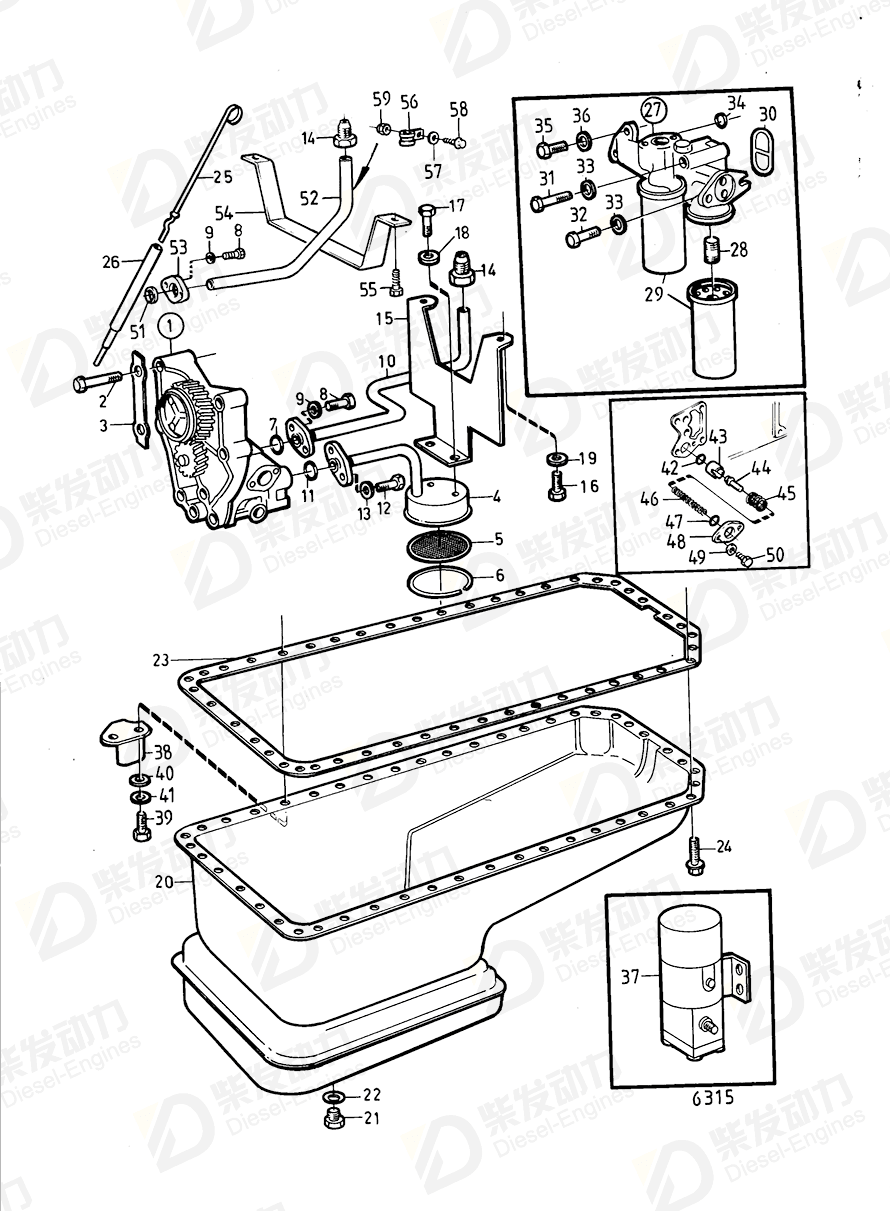

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 468351 | 1 | MO16911/XXXXX- |
| 2 | Tab washer | 190529 | 2 | |
| 3 | Hexagon screw | 955538 | 4 | |
| 4 | Suction pipe | 468039 | 1 | |
| 5 | Wire gauze | 414621 | 1 | |
| 6 | Retaining ring | 118125 | 1 | |
| 7 | O-ring | 949658 | 1 | (925061) early type |
| 8 | Hexagon screw | 955533 | 2 | For engine with 40° angle of inclination, L=102mm |
| 8 | Hexagon screw | 959793 | 2 | |
| 9 | Spring washer | 941907 | 2 | |
| 10 | Service kit | 468036 | 1 | Incl in gasket kit 875399 (compression 8,4:1)., Early type |
| 11 | O-ring | 949657 | 1 | (925060) |
| 12 | Hexagon screw | 955533 | 2 | For engine with 40° angle of inclination, L=102mm |
| 13 | Spring washer | 941907 | 2 | |
| 14 | Fitting | 466908 | 1 | |
| 15 | Baffle plate | 423424 | 1 | |
| 16 | Hexagon screw | 955523 | 2 | |
| 17 | Flange screw | 942402 | 2 | |
| 18 | Washer | 955894 | 2 | |
| 19 | Disc spring | 942385 | 2 | |
| 20 | Sump | 470476 | 1 | (468717) |
| 21 | Magnetic plug | 192538 | 1 | |
| 22 | Gasket, plug | 18677 | 1 | |
| 23 | Gasket | 470133 | 1 | (423365) |
| 24 | Flange screw | 942402 | 41 | |
| 25 | Oil dipstick | 944663 | 1 | |
| 26 | Extension pipe | 412845 | 1 | |
| 27 | Housing | 468649 | 1 | |
| 28 | Nipple | 466623 | 2 | |
| 29 | Oil filter | 466634 | 2 | |
| 30 | Gasket | 469486 | 1 | |
| 31 | Hexagon screw | 942529 | 2 | |
| 32 | Hexagon screw | 940115 | 2 | |
| 33 | Spring washer | 942336 | 4 | |
| 34 | O-ring | 949659 | 1 | |
| 35 | Hexagon screw | 955525 | 2 | |
| 36 | Spring washer | 941907 | 1 | |
| 38 | Bracket | 468653 | 1 | |
| 39 | Hexagon screw | 955525 | 2 | |
| 40 | Washer | 960141 | 2 | |
| 41 | Spring washer | 941907 | 2 | |
| 42 | Sealing ring | 424342 | 1 | |
| 43 | Valve seat | 469468 | 1 | |
| 44 | Valve cone | 471085 | 1 | |
| 45 | Compression spring | 470291 | 1 | |
| 46 | Spring | 468727 | 1 | For 424920 |
| 47 | O-ring | 949658 | 1 | (925061) early type |
| 48 | Cover | 469465 | 1 | |
| 49 | Washer | 192287 | 2 | Spec. 867055., Replaced by later production., Early type |
| 50 | Hexagon screw | 955512 | 2 | |
| 51 | Sealing ring | 470263 | 1 | Late type |
| 52 | Oil pressure pipe | 470264 | 1 | Late type |
| 53 | Flange | 470262 | 1 | Late type |
| 54 | Bracket | 470143 | 1 | Late type |
| 55 | Flange screw | 942402 | 2 | |
| 56 | Clamp | 949786 | 1 | Late type |
| 57 | Washer | 955894 | 1 | |
| 58 | Flange screw | 942402 | 1 | |
| 59 | Lock nut | 945467 | 1 | Late type |
| Item | Part Name | Part No. |
| 19 | Disc spring 942385 | 942385 |
| Details | |
| Engine model | D120A TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030V, TWD1031VE TAD120AHC TAD120BHC TAD1230G, TAD1231GE, TAD1232GE TAD1230V TAD730G TAD730P TAD730V TD120A TD120AHC TD120ARC TD120C TD120G TD120GG TD31ACE TD40A TD60A TD60B TD60D TD60D-83, TID60D TD60D-83, TID60D, TID60DG TID120FG TWD1230ME TWD1230VE, TWD1231VE |
| Application | Coupling for Fuel Injection Pump with Cover Coupling for Fuel Injection Pump with Cover: A Coupling for Fuel Injection Pump with Cover: B Lubricating System Lubricating System, Angle of Inclination 10° LUBRICATING SYSTEM, STANDARD MODEL Lubricating System, Standard Model: A Lubricating System, Standard Model: B Lubricating System: A Lubricating System: B Lubricating System: C Lubricating System: D |
| Specification | |
| Descriptions | Early type |
