Double nipple 16452

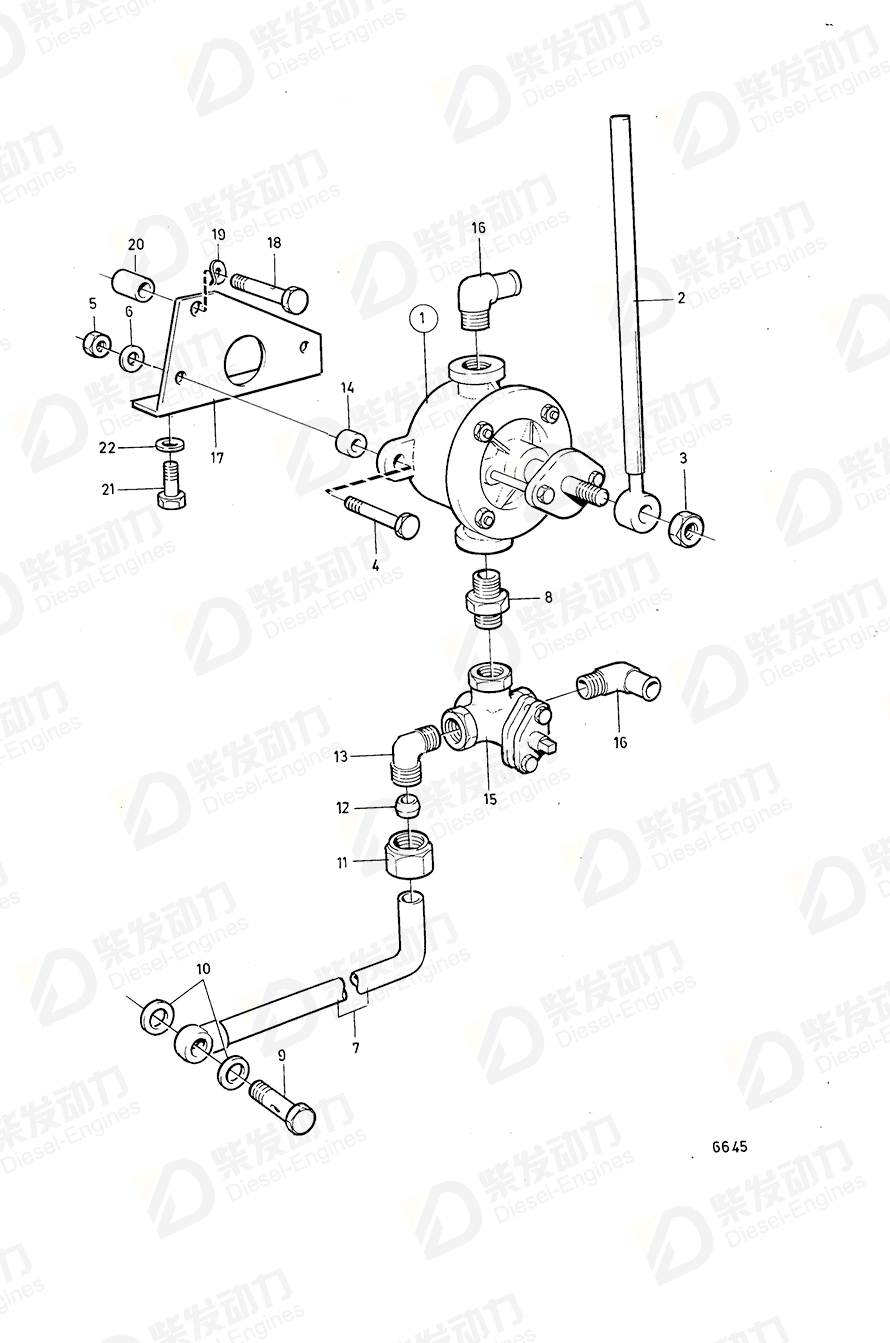

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil bilge pump | 805999 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 2 | Handle | 821713 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 3 | Hexagon nut | 955827 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 4 | Hexagon screw | 940162 | 2 | MO-XXXXX/105194 |
| 5 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 6 | Spring washer | 942336 | 2 | |
| 7 | Tube | 847356 | 1 | |
| 8 | Double nipple | 16452 | 1 | AQ115A MOXXXX/86909-. |
| 9 | Hollow screw | 26013 | 1 | AQ115A MOXXXX/86909-. |
| 10 | Gasket | 957181 | 2 | |
| 11 | Fitting nut | 941752 | 1 | AQ115A MOXXXX/86909-. |
| 12 | Ferrule | 941753 | 1 | AQ115A MOXXXX/86909-. |
| 13 | Elbow nipple | 941758 | 1 | |
| 14 | Spacer sleeve | 820506 | 2 | L=9mm |
| 15 | Cock | 807721 | 1 | AQ115A MOXXXX/86909-. |
| 16 | Hose nipple | 961610 | 2 | (803490) |
| 17 | Bracket | 820582 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 18 | Hexagon screw | 955527 | 1 | |
| 19 | Spring washer | 941907 | 2 | |
| 20 | Spacer sleeve | 812942 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 21 | Hexagon screw | 940159 | 2 | |
| 22 | Spring washer | 941907 | 2 |
| Item | Part Name | Part No. |
| 8 | Double nipple 16452 | 16452 |
| Details | |
| Engine model | D100A D100B D100BHC D100BHC, TD100AHC D100BRC, TD100ARC D70B TAD120AHC TD100A TD100AHC TD100CHC TD100CRC TD120AHC |
| Application | Electrical System and Instruments Excl Spec 867108, 867153: A Electrical System and Instruments Excl Spec 867108, 867153: B Electrical System and Instruments Excl Spec 867108, 867153: C OIL BILGE PUMP WITH INSTALLATION COMPONENTS OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: A OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: B OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: C OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: D OIL BILGE PUMP WITH INSTALLATION COMPONENTS LATER PROD Oil Bilge Pump with Installation Components: A Oil Bilge Pump with Installation Components: B Oil Sump Pump and Installation Components: A Sump Pump and Installation Components: A Sump Pump and Installation Components: B Sump Pump and Installation Components: C |
| Specification | |
| Descriptions | AQ115A MOXXXX/86909-. Engine with oil supervision in rear oil pan cover. Spec. 867113. alt spec. 9969. |
