Elbow nipple 3826916

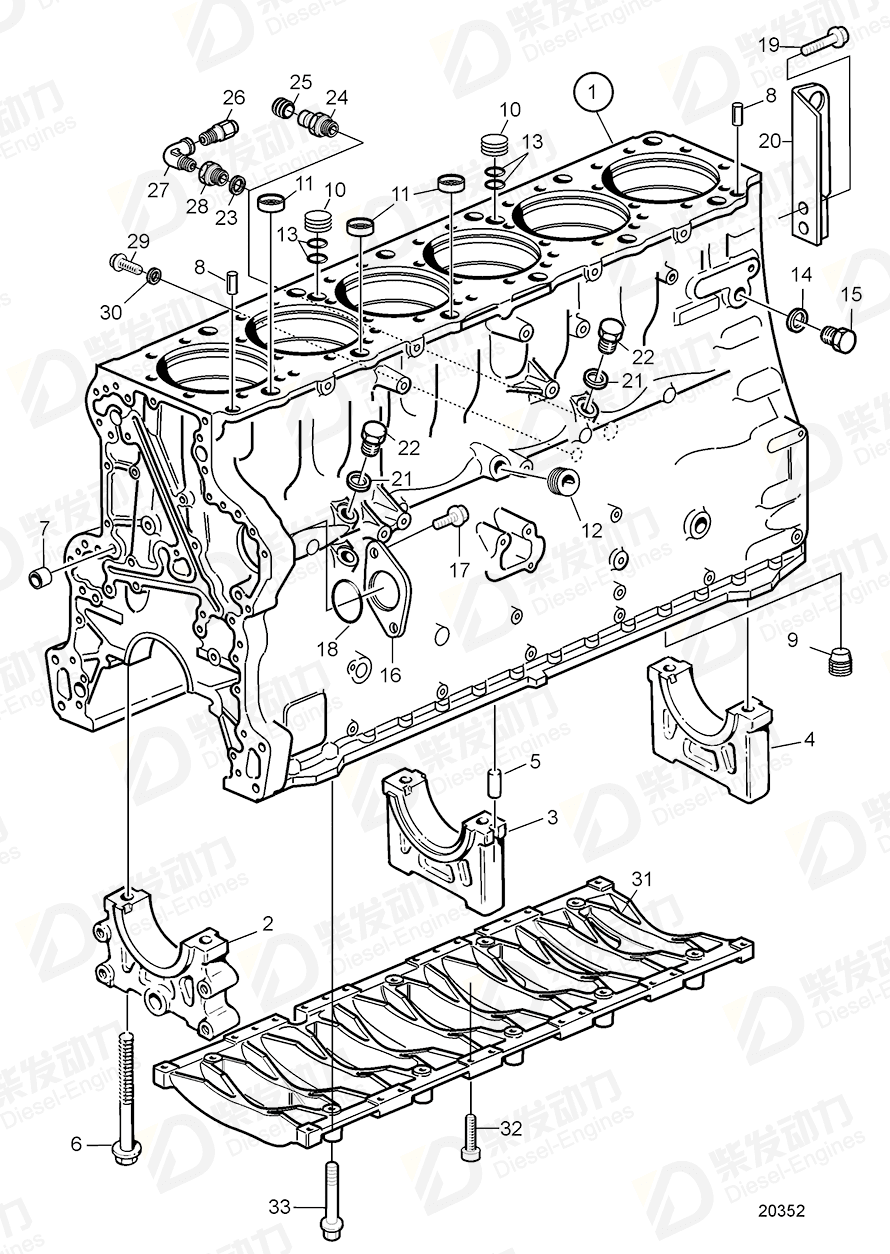

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 8130120 | 1 | Replaced by 20412465 |
| 1 | Cylinder block | 20412465 | 1 | Replaced by 20451181 |
| 1 | Cylinder block | 20451181 | 1 | |
| 5 | Pin | 422426 | 1 | |
| 6 | Flange screw | 1547040 | 14 | |
| 7 | Cap plug | 981735 | 3 | |
| 8 | Guide sleeve | 8170389 | 2 | |
| 9 | Plug | 8170666 | 1 | |
| 10 | Plug | 3165099 | 2 | SN-2012296775 |
| 11 | Restricting washer | 1546624 | 3 | |
| 12 | Plug | 981245 | 1 | |
| 13 | O-ring | 976038 | 4 | |
| 14 | Gasket | 947627 | 2 | |
| 15 | Plug | 960634 | 2 | |
| 16 | Cover | 3828400 | 1 | |
| 17 | Flange screw | 946441 | 2 | |
| 18 | O-ring | 967344 | 1 | |
| 19 | Flange screw | 975122 | 2 | |
| 21 | Gasket | 11996 | 2 | |
| 22 | Plug | 960631 | 2 | |
| 23 | Gasket, plug | 18677 | 1 | |
| 24 | Nipple | 1676622 | 1 | |
| 25 | Protecting cap | 476279 | 1 | |
| 26 | Shut-off cock | 949918 | 1 | (82745) |
| 27 | Elbow nipple | 3826916 | 1 | |
| 28 | Reduction nipple | 191068 | 1 | |
| 29 | Flange screw | 946440 | 1 | |
| 30 | Gasket | 11992 | 1 | |
| 31 | Frame | 3183414 | 1 | |
| 32 | Hex. socket screw | 973523 | 20 | |
| 33 | Flange screw | 965187 | 6 |
| Item | Part Name | Part No. |
| 27 | Elbow nipple 3826916 | 3826916 |
| Details | |
| Engine model | TAD1240GE, TAD1241GE, TAD1242GE TAD1630G, TAD1630GE TAD1630P, TWD1630P TID162AG, TID162AGP, TID162AP, TID162APB TWD1230VE, TWD1231VE TWD1240VE TWD1620G TWD1630G |
| Application | Cylinder Block Cylinder Block: A Cylinder Block: B Cylinder Block: C Radiator and Fan Cover. Mobile Application |
| Specification | |
| Descriptions | (942021) For TWD1231VE Replaced by elbow nipple, drain cock 947893, nipple 479954 |
