Elbow nipple 809109

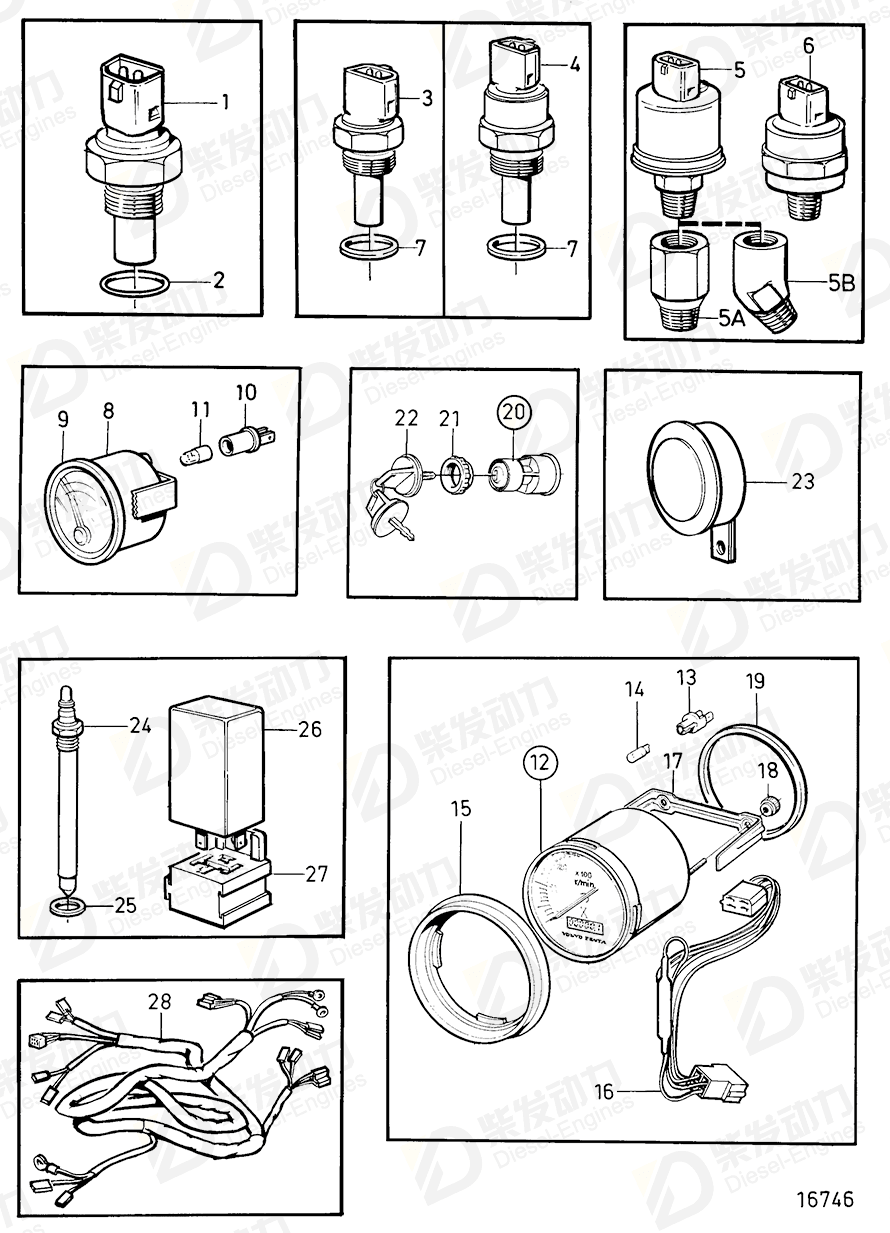

| No. | Part Name | Part Number | Qty | Description |
| 1 | Sensor, rpm | 862289 | 1 | |
| 2 | O-ring | 925059 | 1 | AQ115A compression 8,4:1. |
| 3 | Temperature sensor, instrument | 862154 | 1 | Max 120°C |
| 4 | Thermo monitor, coolant temp. | 848829 | 1 | 103°C |
| 4 | Thermo monitor, coolant temp. | 862250 | 1 | 97°C |
| 5 | Sensor, oil pressure-engine | 866835 | 1 | 0-10BAR |
| 6 | Pressure monitor, oil pressure-engine | 863169 | 1 | 0.7bar |
| 7 | Gasket | 947624 | 2 | |
| 8 | Thermometer, temperature | 849848 | 1 | 24V |
| 8 | Oil pressure gauge, oil-pressure | 849849 | 1 | 24V |
| 8 | Tachometer, hour/tachometer | 854908 | 1 | Replaced by operating clock/tachometer 873998 and intermediate ring 873721., 24V |
| 8 | Tachometer, tachometer | 872040 | 1 | Replaced by operating clock/tachometer 873998 and intermediate ring 873721., 24V |
| 8 | Hour recorder, hour meter | 872479 | 1 | 12-24V |
| 9 | Front ring | 858643 | 1 | (828542) |
| 9 | Front ring | 858644 | 1 | For 872040., D=95mm |
| 10 | Bulb socket | 808175 | 1 | |
| 10 | Bulb socket | 863945 | 1 | For 873625,873624,873664 |
| 11 | Bulb | 182059 | 1 | |
| 11 | Bulb | 863946 | 1 | 12Vx1,2W W2x4,6d |
| 11 | Bulb | 863947 | 1 | 24V 1, 2W, W2x4,6d |
| 12 | Tachometer kit | 873722 | 1 | |
| 13 | Bulb socket | 863945 | 1 | For 873625,873624,873664 |
| 14 | Bulb | 863947 | 1 | 24V 1, 2W, W2x4,6d |
| 15 | Ring | 873683 | 1 | |
| 16 | Diode cable, tachometer | 873695 | 1 | |
| 17 | Brace kit | 873208 | 1 | |
| 19 | Intermediate ring | 873721 | 1 | 80-72mm |
| 20 | Starter switch | 864277 | 1 | Diode 1624694 should be used on engines with stop solenoid, energized to run. |
| 21 | Plastic nut | 859955 | 1 | |
| 22 | Key | 859953 | 2 | |
| 23 | Horn | 872874 | 1 | 24V |
| 24 | Level indicator | 1581232 | 1 | |
| 25 | Gasket | 11994 | 1 | |
| 26 | Level relay | 1622515 | 1 | |
| 27 | Housing | 946556 | 1 | |
| 28 | Wiring harness | 863867 | 1 | L=2500mm |
| 28 | Wiring harness | 863868 | 1 | L=8000mm |
| 28 | Wiring harness | 866894 | 1 | |
| 5A | Nipple | 835980 | 1 | |
| 5B | Elbow nipple | 809109 | 1 | Later prod |
| Item | Part Name | Part No. |
| 5B | Elbow nipple 809109 | 809109 |
| Details | |
| Engine model | TAD1030P TD100G-87 TD1030ME, TWD1030ME TD1030VE, TAD1030V, TWD1031VE, TAD1030VE TD164KAE TD610G, TWD610G TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD640VE TD710G, TWD710G, TAD730G TD71A, TID71A, TWD710V TD730ME, TWD730ME, TWD731ME TD730VE, TWD731VE, TAD730V TID162AG, TID162AGP, TID162AP, TID162APB TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD610P TWD630ME TWD710P, TAD730P TWD740GE, TAD740GE, TAD741GE |
| Application | Contacts and Sensors Contacts and Sensors: A Contacts and Sensors: B Contacts and Sensors: C Cylinder Block Electrical Components, Contacts and Sensors Electrical Materials Electrical Materials: A Electrical Materials: B Electrical Materials: C |
| Specification | |
| Descriptions | Later prod |
