Elbow nipple 941758

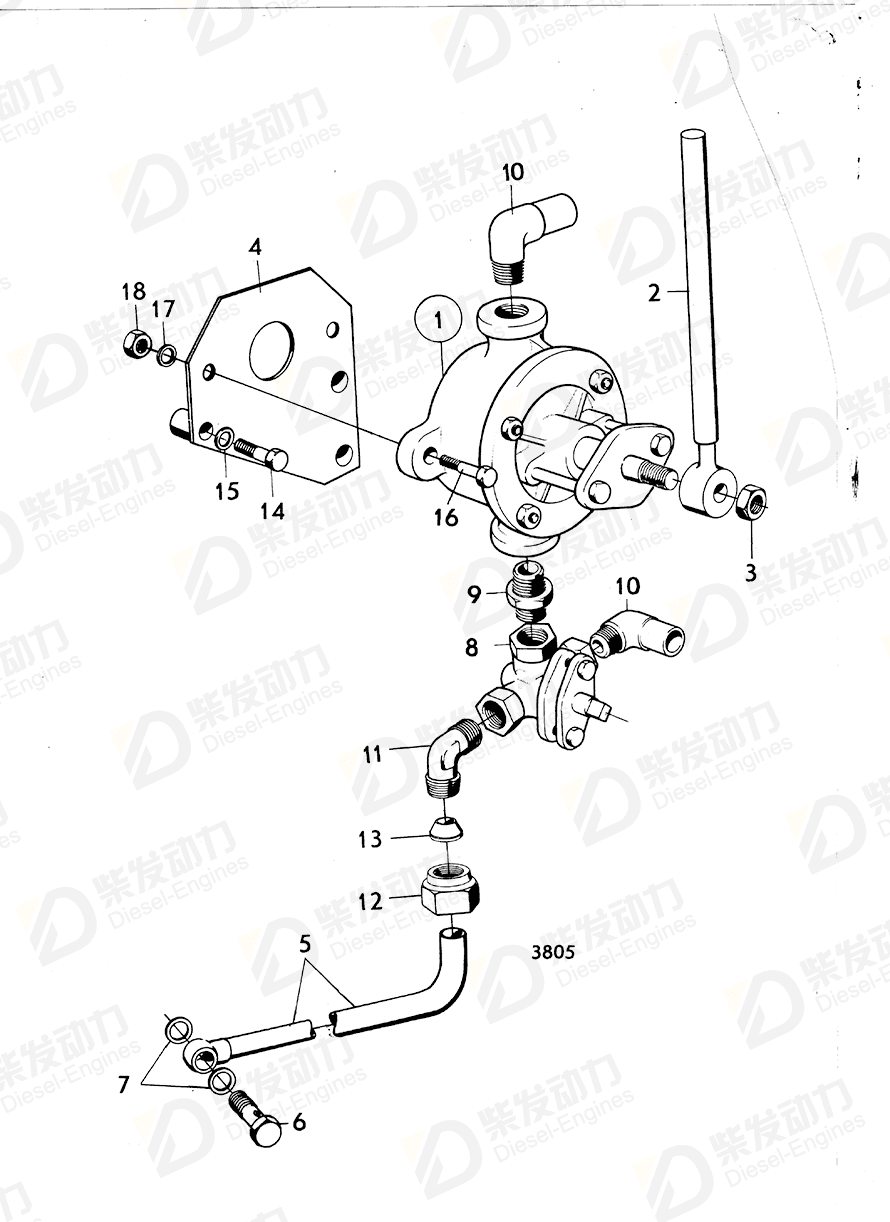

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil bilge pump | 805999 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 2 | Handle | 821713 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 3 | Hexagon nut | 955827 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 4 | Bracket | 846174 | 1 | (820677) |
| 5 | Tube | 820892 | 1 | |
| 6 | Hollow screw | 26013 | 1 | AQ115A MOXXXX/86909-. |
| 7 | Gasket | 957181 | 2 | |
| 8 | Cock | 807721 | 1 | AQ115A MOXXXX/86909-. |
| 9 | Double nipple | 16452 | 1 | AQ115A MOXXXX/86909-. |
| 10 | Hose attachment | 803490 | 2 | Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 11 | Elbow nipple | 941758 | 1 | |
| 12 | Fitting nut | 941752 | 1 | AQ115A MOXXXX/86909-. |
| 13 | Ferrule | 941753 | 1 | AQ115A MOXXXX/86909-. |
| 14 | Hexagon screw | 940161 | 1 | For engine with 40° angle of inclination, L=45mm |
| 15 | Spring washer | 941907 | 1 | |
| 16 | Hexagon screw | 955535 | 2 | |
| 17 | Spring washer | 942336 | 2 | |
| 18 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| Item | Part Name | Part No. |
| 11 | Elbow nipple 941758 | 941758 |
| Details | |
| Engine model | D100BHC D120A D70B TAD120AHC TAD120CHC TAD121CHC TD100AHC TD100CHC TD100CRC TD120A TD120AHC TD120AHC, TAD120AHC TD120ARC, TAD120BHC TD120BHC TD120BRC TD121CHC TD121CRC |
| Application | Oil Bilge Pump with Installation Components OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: A OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: B OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: C OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: D Oil Bilge Pump with Installation Components Later Prod Oil Bilge Pump with Installation Components: A Oil Bilge Pump with Installation Components: B Oil Sump Pump and Installation Components: A Sump Pump and Installation Components: A Sump Pump and Installation Components: B |
| Specification | |
| Descriptions | Spec. 867113. alt spec. 9969. Spec. 9882, 9961. |
