Elbow nipple 943516

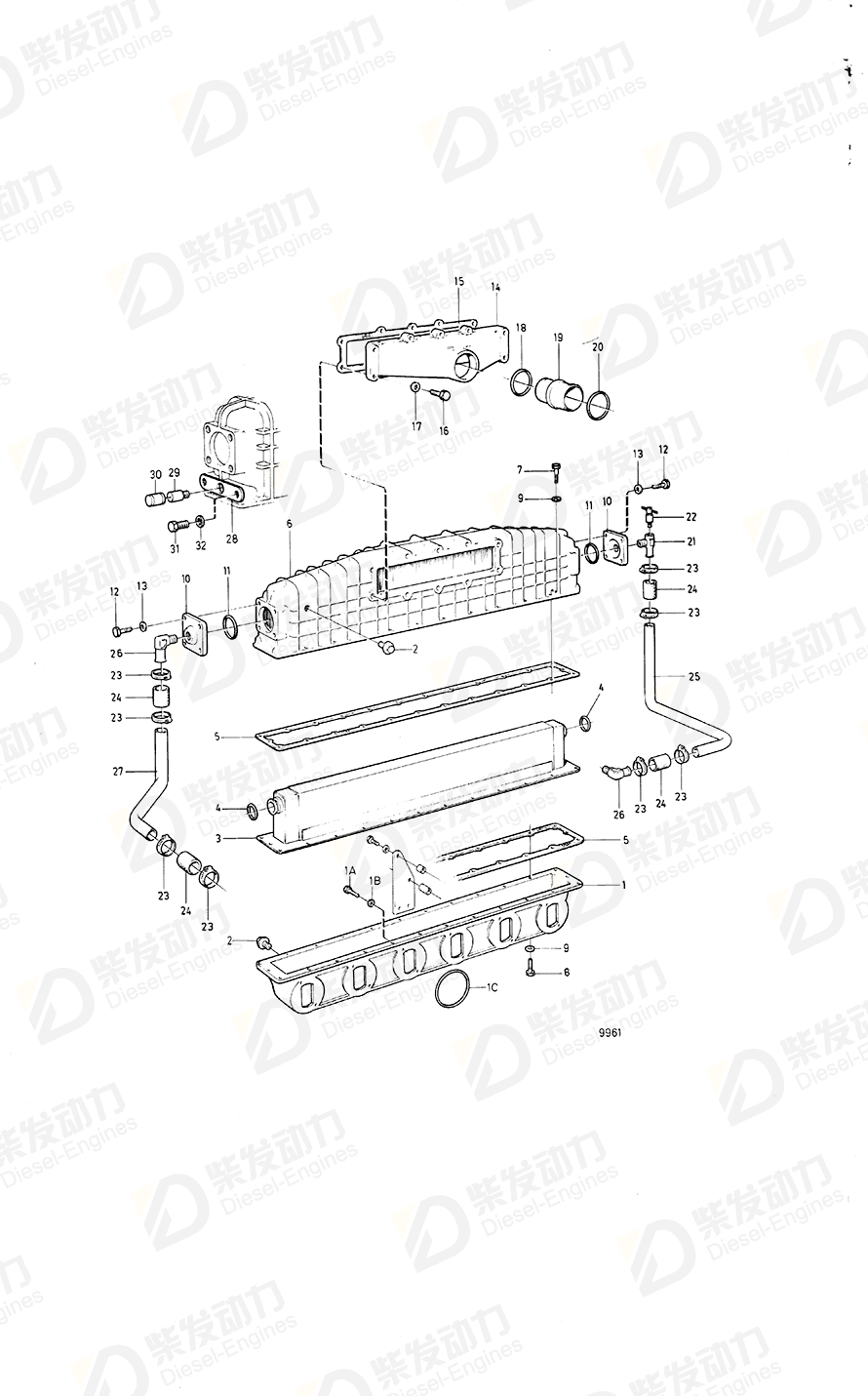

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet pipe | 847675 | 1 | Early type |
| 1 | Hexagon screw | 955533 | 2 | For engine with 40° angle of inclination, L=102mm |
| 1 | Hexagon screw | 959793 | 5 | |
| 1 | Hexagon screw | 959796 | 2 | L=140mm |
| 2 | Plug | 191026 | 3 | |
| 3 | Charge air cooler | 424808 | 1 | (469811) |
| 4 | O-ring | 469668 | 2 | |
| 5 | Gasket | 469661 | 2 | |
| 6 | Tube | 424802 | 1 | |
| 7 | Hex. socket screw | 956572 | 10 | SEE GROUP 2B |
| 8 | Hexagon screw | 940186 | 16 | |
| 9 | Washer | 955894 | 26 | |
| 10 | Flange | 4778372 | 2 | |
| 11 | O-ring | 925094 | 2 | Included in gasket kit 876025 for induction manifold+intercooler. |
| 12 | Hexagon screw | 955525 | 8 | |
| 13 | Washer | 955894 | 8 | |
| 14 | Connecting pipe | 469659 | 1 | |
| 15 | Gasket | 469662 | 1 | |
| 16 | Hexagon screw | 940161 | 10 | For engine with 40° angle of inclination, L=45mm |
| 17 | Spring washer | 941907 | 10 | |
| 18 | O-ring | 469508 | 1 | Included in gasket kit. |
| 19 | Intermediate pipe | 469510 | 1 | |
| 1A | Hexagon screw | 955531 | 3 | Late type |
| 1B | Spring washer | 941907 | 12 | |
| 1C | Sealing ring | 469829 | 6 | Included in gasket kit. |
| 20 | O-ring | 469509 | 1 | Included in gasket kit. |
| 21 | Elbow nipple | 943516 | 1 | |
| 22 | Shut-off cock | 82744 | 1 | |
| 23 | Hose clamp | 943474 | 8 | |
| 24 | Rubber hose | 943369 | 4 | L=165 mm |
| 25 | Pipe | 847435 | 1 | |
| 26 | Hose nipple | 961610 | 2 | (803490) |
| 27 | Pipe | 847436 | 1 | (863355) |
| 28 | Flange | 424807 | 1 | |
| 29 | Drain cock | 11031109 | 1 | (849775) |
| 30 | Peg | 966723 | 1 | |
| 31 | Hexagon screw | 955513 | 2 | |
| 32 | Spring washer | 949607 | 2 |
| Item | Part Name | Part No. |
| 21 | Elbow nipple 943516 | 943516 |
| Details | |
| Engine model | TD70G-83 TID70G TWD1010G TWD1030ME TWD1031VE |
| Application | Air Compressor TUFLO 700 and Installation Components: A Air Compressor TUFLO 700 and Installation Components: B Induction Manifold and Installation Components Induction Manifold and Intercooler Inlet Manifold and Aftercooler |
