End cover 843580

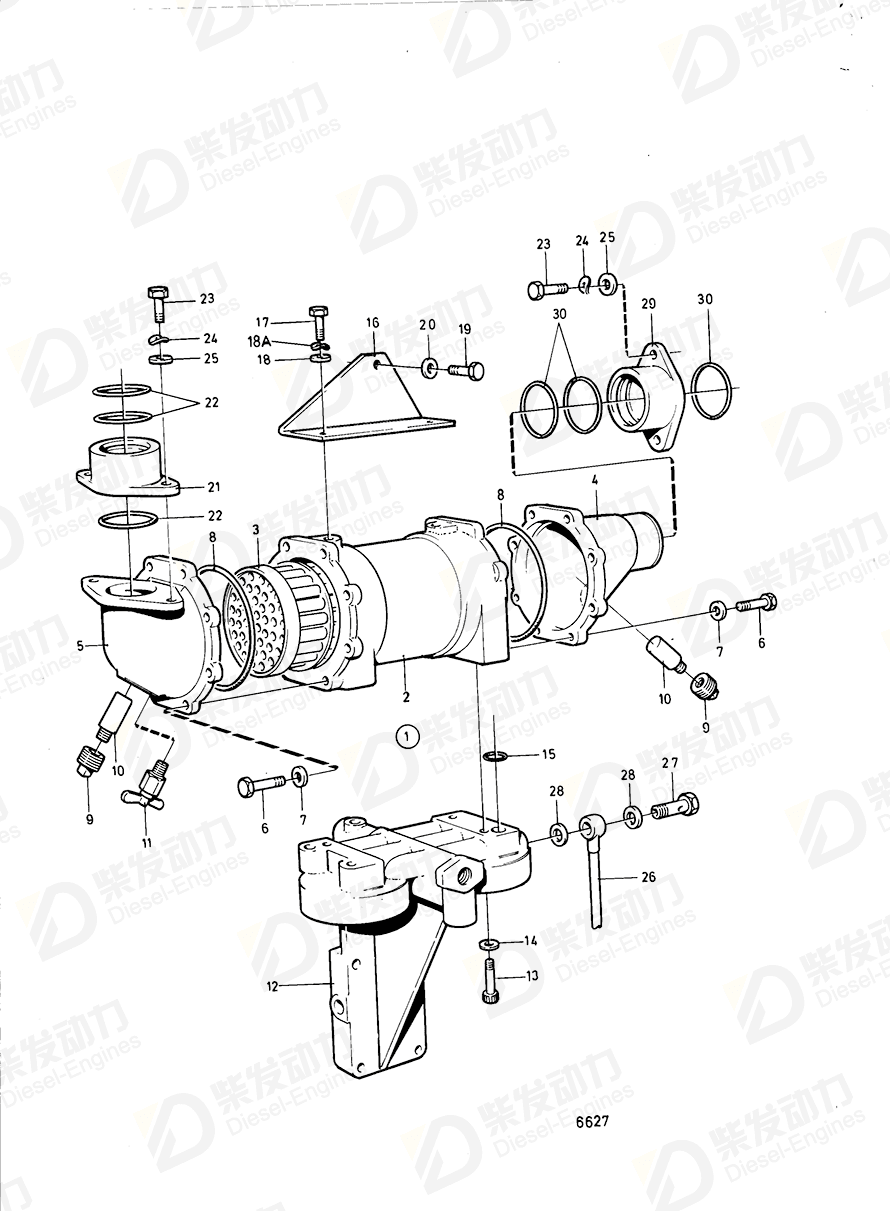

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil cooler | 842825 | 1 | See group 2A |
| 2 | Housing | 849410 | 1 | |
| 3 | Insert | 864213 | 1 | |
| 4 | End cover | 843580 | 1 | |
| 5 | End cover | 843567 | 1 | |
| 6 | Hexagon screw | 955514 | 16 | L = 25 MM |
| 7 | Spring washer | 941906 | 16 | |
| 8 | O-ring | 925027 | 2 | |
| 9 | Plug | 838928 | 2 | (800475) |
| 10 | Anode | 838929 | 2 | (800476) |
| 11 | Shut-off cock | 949918 | 1 | (82745) |
| 12 | Bracket | 843528 | 1 | See group 2B |
| 12 | Bracket | 844498 | 1 | See group 2B |
| 13 | Hex. socket screw | 956572 | 4 | SEE GROUP 2B |
| 14 | Gasket | 11992 | 4 | |
| 15 | O-ring | 949656 | 2 | |
| 16 | Support | 843570 | 1 | |
| 17 | Hexagon screw | 955513 | 2 | |
| 18 | Washer | 955893 | 2 | |
| 19 | Hexagon screw | 955533 | 1 | For engine with 40° angle of inclination, L=102mm |
| 20 | Spring washer | 941907 | 1 | |
| 21 | Pipe connection | 843565 | 1 | |
| 22 | O-ring | 925092 | 3 | |
| 23 | Hexagon screw | 955525 | 4 | |
| 24 | Spring washer | 941907 | 4 | |
| 25 | Washer | 191172 | 4 | Spec.867054, 867221. |
| 26 | Tube | 842830 | 1 | See group 2B |
| 27 | Hollow screw | 190714 | 1 | |
| 28 | Gasket | 947624 | 2 | |
| 29 | Pipe connection | 843565 | 1 | |
| 30 | O-ring | 925092 | 3 | |
| 18A | Spring washer | 941906 | 2 |
| Item | Part Name | Part No. |
| 4 | End cover 843580 | 843580 |
| Details | |
| Engine model | TAD120AHC TAD120BHC TAD120CHC TAD121CHC |
| Application | Oil Cooler with Installation Components |
