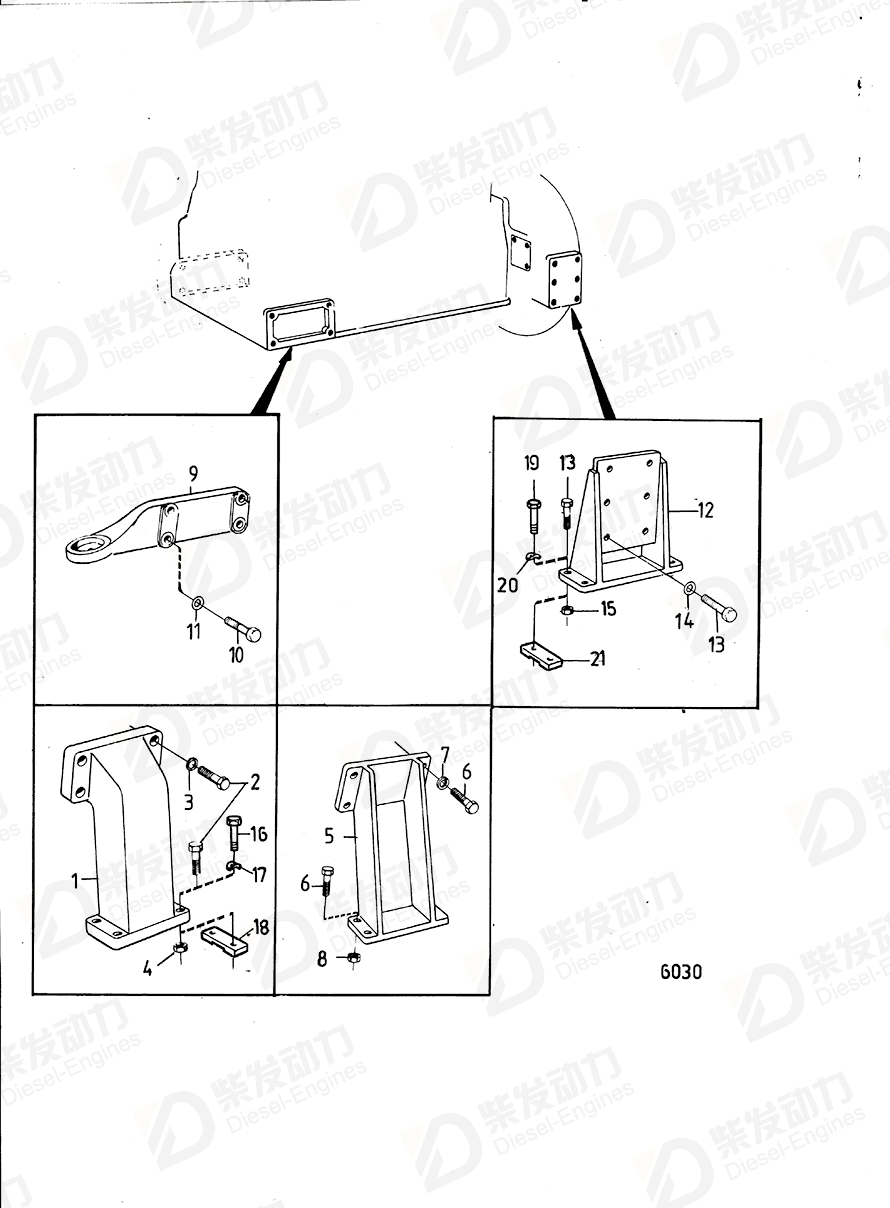

Engine bracket 843069
| No. | Part Name | Part Number | Qty | Description |
| 1 | Bracket | 820519 | 2 | Temporary production |
| 2 | Hexagon screw | 955565 | 8 | Temporary production., L=57mm |
| 3 | Spring washer | 941911 | 8 | |
| 4 | Lock nut | 950356 | 8 | Temporary production. |
| 5 | Engine bracket | 821106 | 2 | Forged pistons. |
| 6 | Hexagon screw | 955561 | 8 | |
| 6 | Hexagon screw | 955577 | 8 | Forged pistons., L=38mm |
| 7 | Spring washer | 941911 | 8 | |
| 8 | Lock nut | 950356 | 8 | Temporary production. |
| 9 | Bracket | 896685 | 1 | Casted pistons, MO 75015200-, MO 75035926-., Left |
| 9 | Bracket | 896686 | 1 | Casted pistons, MO 75015200-, MO 75035926-., Right |
| 10 | Hexagon screw | 955581 | 8 | Casted pistons, MO 75015200-, MO 75035926-. |
| 11 | Spring washer | 941911 | 8 | |
| 12 | Engine bracket | 843069 | 2 | Temporary production. |
| 12 | Engine bracket | 843135 | 2 | |
| 13 | Hexagon screw | 955561 | 12 | |
| 13 | Hexagon screw | 955562 | 8 | L=38mm |
| 14 | Spring washer | 940280 | 12 | |
| 15 | Lock nut | 950356 | 8 | Temporary production. |
| Item | Part Name | Part No. |
| 12 | Engine bracket 843069 | 843069 |
| Details | |
| Engine model | D100A D100B TD100A TD100G, TD100GG TD100G-85, TD100G-87, TD100GG-85, TD100GG-87 TD100GP TD100HP-87, TD100HPB-87, TD100GP-85, TID100KP, TID100KP-87, TID100KPB-87 TID100K, TID100K-87, TID100KG, TID100KG-87 |
| Application | Engine Suspension Engine Suspension: A Engine Suspension: B Engine Suspension: C |
| Specification | |
| Descriptions | High Power Pack Spec 9769 Temporary production. |
