Expansion plug 1542263

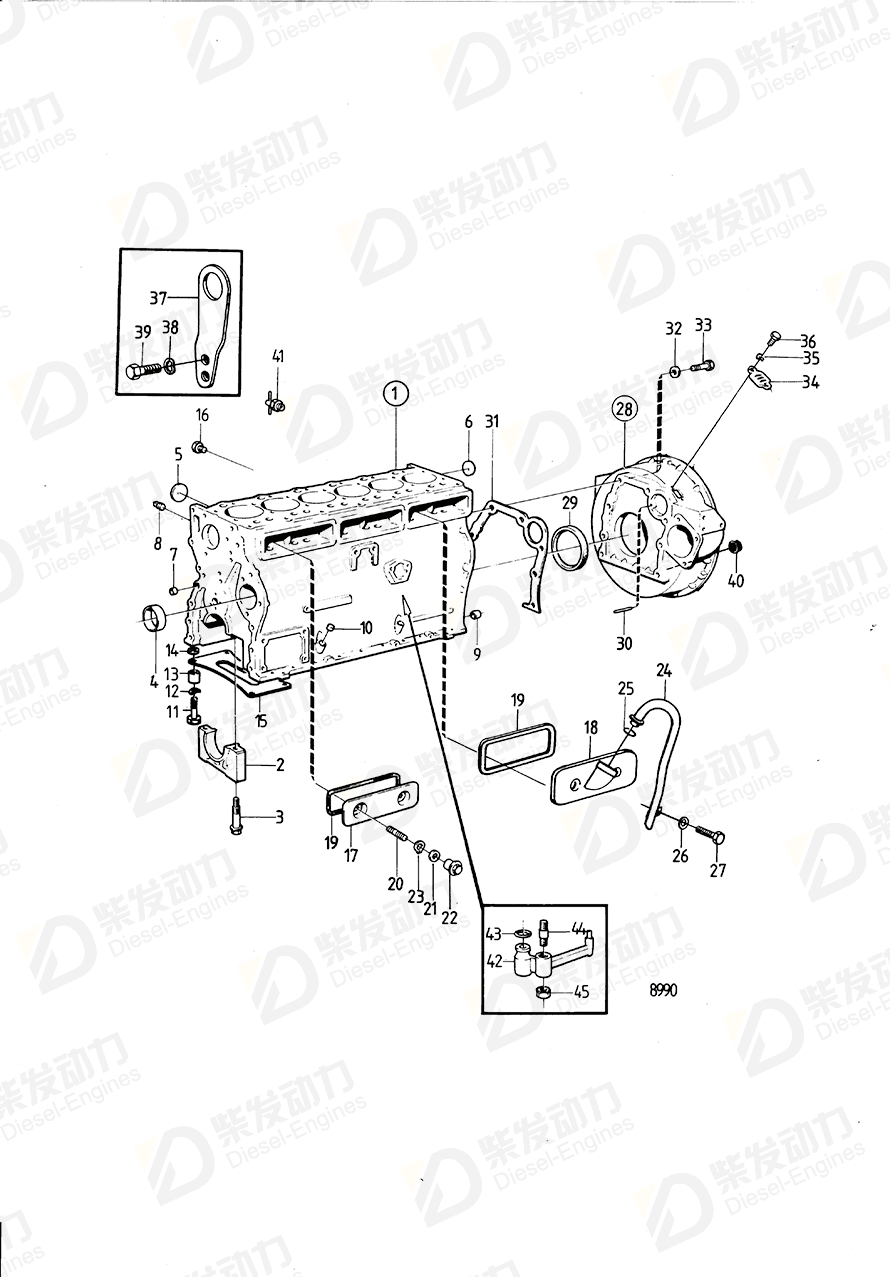

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 838981 | 1 | |
| 1 | Cylinder block | 1542000 | 1 | Repl by 1545051 |
| 1 | Cylinder block | 1542463 | 1 | Spare parts production., Repl by 1545051 |
| 1 | Cylinder block | 1545051 | 1 | Spare parts production., Repl by 838981 |
| 3 | Flange screw | 1542416 | 14 | |
| 4 | Camshaft bushing | 1542067 | 7 | |
| 5 | Expansion plug | 463905 | 5 | |
| 6 | Expansion plug | 1542263 | 1 | |
| 7 | Cap plug | 955083 | 4 | |
| 8 | Plug | 952075 | 1 | |
| 8 | Plug | 952077 | 1 | |
| 9 | Guide sleeve | 415311 | 2 | |
| 10 | Cap plug | 955082 | 3 | |
| 11 | Hexagon screw | 970954 | 4 | L=60mm, (955324) |
| 12 | Spring washer | 941908 | 4 | |
| 13 | Spacer sleeve | 1545160 | 4 | |
| 14 | Sealing ring | 3582851 | 4 | |
| 16 | Plug | 191026 | 5 | |
| 17 | Inspection lid | 1542050 | 2 | |
| 18 | Inspection cover | 1542294 | 1 | |
| 19 | Seal | 1542052 | 3 | |
| 20 | Stud | 924075 | 6 | |
| 21 | Sealing ring | 469846 | 6 | |
| 22 | Cap nut | 1542286 | 6 | |
| 23 | Retaining ring | 914449 | 6 | |
| 24 | Tube | 1542297 | 1 | |
| 25 | Sealing ring | 421158 | 1 | |
| 26 | Spring washer | 941907 | 1 | |
| 27 | Hexagon screw | 955294 | 1 | |
| 28 | Flywheel housing | 1542224 | 1 | |
| 29 | Sealing ring | 3582851 | 1 | |
| 30 | Pin | 40870 | 1 | |
| 31 | Gasket | 1542227 | 1 | |
| 32 | Spring washer | 941908 | 8 | |
| 33 | Hexagon screw | 955320 | 8 | |
| 34 | Breather cap | 417429 | 1 | |
| 35 | Spring washer | 941906 | 2 | |
| 36 | Hexagon screw | 955271 | 2 | |
| 38 | Spring washer | 941908 | 2 | |
| 39 | Hexagon screw | 955318 | 2 | |
| 40 | Closure | 466216 | 1 | |
| 41 | Shut-off cock | 947893 | 1 | |
| 42 | Oil jet | 1542320 | 6 | |
| 43 | O-ring | 955981 | 6 | |
| 44 | Stud | 1542380 | 6 | |
| 45 | Lock nut | 946035 | 6 |
| Item | Part Name | Part No. |
| 6 | Expansion plug 1542263 | 1542263 |
| Details | |
| Engine model | TD30A TD40A TD61A, TD61AW, TD61ACE, TD61AG, TD61AP TD71A, TD71AW, TD71ACE, TD71AG, TD71AP TID61AG TID71A, TID71AG, TID71AP |
| Application | Cylinder Block and Flywheel Housing Cylinder Block and Related Parts |
Related Products
Tags: Expansion plug, Volvo Penta, 1542263
