Expansion plug 463903

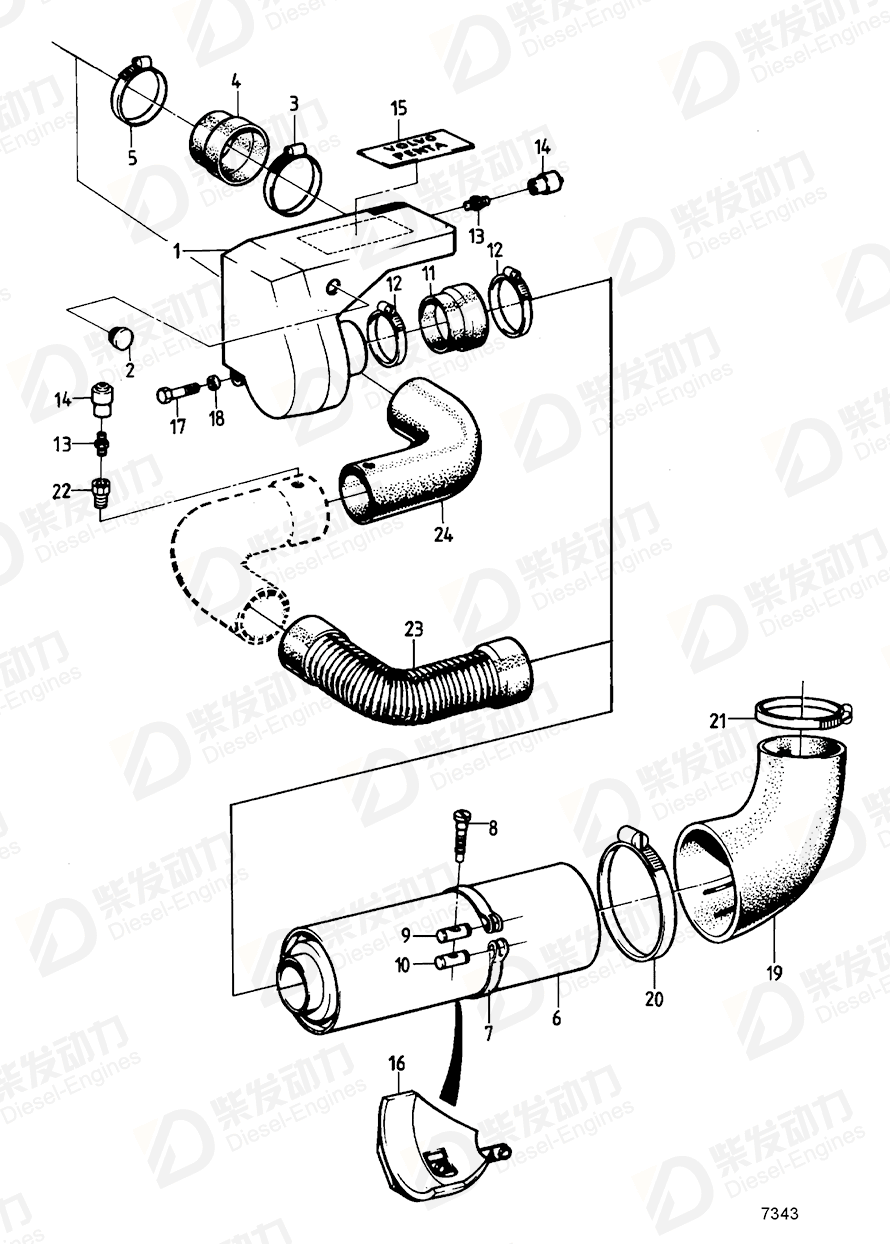

| No. | Part Name | Part Number | Qty | Description |
| 1 | Connecting pipe | 844669 | 1 | |
| 2 | Expansion plug | 463903 | 1 | For engine without air compressor |
| 3 | Hose clamp | 943484 | 1 | (951801) |
| 4 | Rubber fitting | 842281 | 1 | |
| 5 | Hose clamp | 943481 | 1 | (951798) |
| 6 | Air filter | 823701 | 1 | Late type |
| 7 | Tensioning band | 821028 | 1 | |
| 8 | Hexagon screw | 31406 | 1 | |
| 9 | Clevis pin, threaded | 31404 | 1 | |
| 10 | Pin | 31405 | 1 | |
| 11 | Rubber fitting | 836334 | 1 | For 804961., D=105mm-113mm |
| 12 | Hose clamp | 943484 | 2 | (951801) |
| 13 | Nipple | 191095 | 1 | |
| 14 | Pressure drop indica | 842037 | 1 | |
| 15 | Decal | 827259 | 1 | |
| 16 | Bracket | 843374 | 1 | |
| 17 | Hexagon screw | 955297 | 1 | |
| 18 | Spring washer | 941907 | 1 | |
| 19 | Bend | 837278 | 1 | D70B spec. 867221., Alt |
| 20 | Hose clamp | 944307 | 1 | D70B spec. 867221., Alt |
| 21 | Hose clamp | 961678 | 1 | D70B spec. 867221., Alt |
| 22 | Nipple | 823953 | 1 | When oil supervision not is mounted. |
| 23 | Corrugated hose | 345741 | 1 | Åkerman. |
| 24 | Hose | 837444 | 1 | MO47461/XXXXX- |
| Item | Part Name | Part No. |
| 2 | Expansion plug 463903 | 463903 |
| Details | |
| Engine model | TD60A TD60B TD60D |
| Application | Air Filter and Installation Components: A Air Filter and Installation Components: B |
| Specification | |
| Descriptions | For engine without air compressor |
