Expansion plug 968955

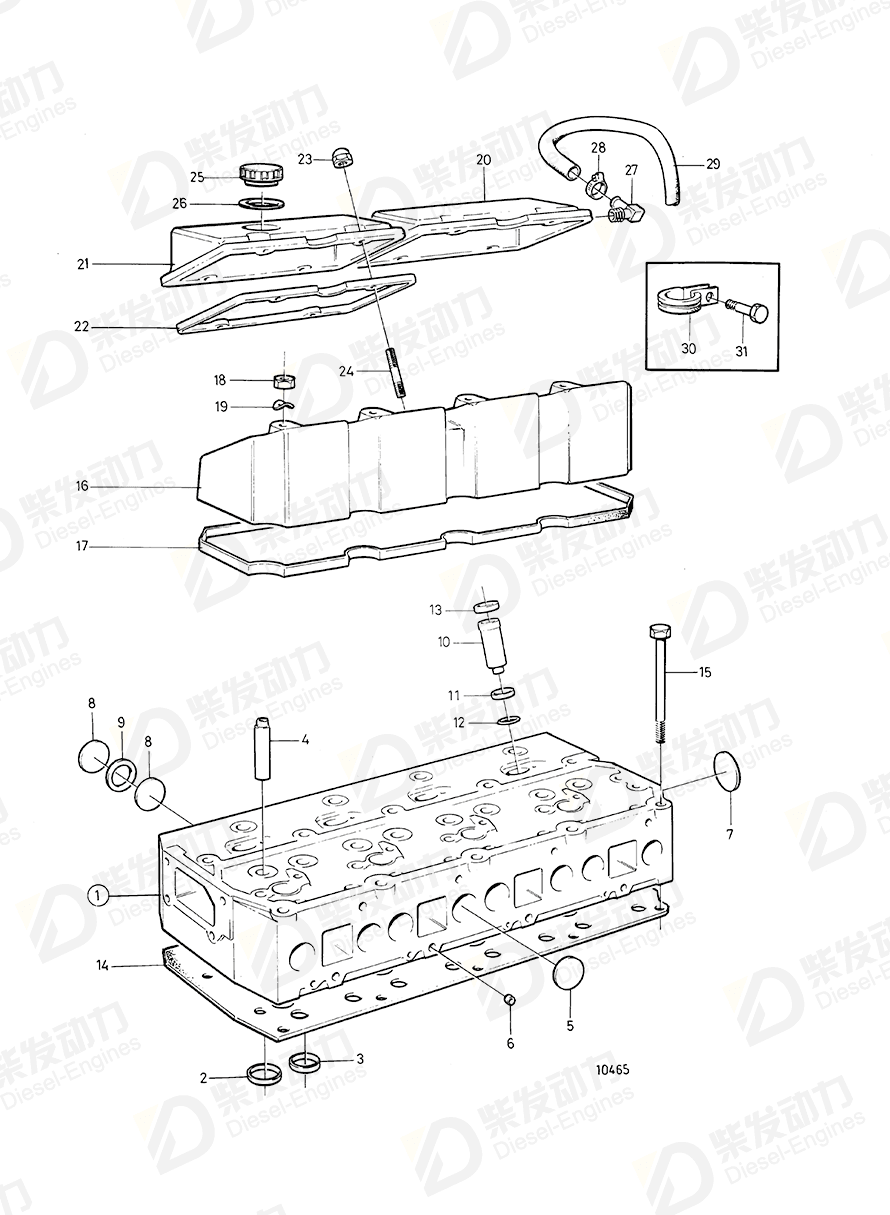

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803306 | 1 | (838813) |
| 2 | Valve seat | 858328 | 4 | Std D |
| 3 | Valve seat | 858331 | 4 | Std D |
| 4 | Valve guide | 419653 | 8 | |
| 5 | Expansion plug | 477026 | 13 | (192426) |
| 6 | Cap plug | 967853 | 8 | |
| 7 | Expansion plug | 968955 | 1 | (941256) |
| 8 | Expansion plug | 967948 | 8 | |
| 9 | Gasket | 949329 | 4 | |
| 10 | Sleeve | 838609 | 4 | |
| 11 | Sealing ring | 838896 | 4 | |
| 12 | O-ring | 838821 | 8 | |
| 13 | Retainer | 838619 | 4 | |
| 14 | Gasket | 858993 | 1 | |
| 15 | Flange screw | 838775 | 19 | (1542144) early prod |
| 16 | Valve cover | 838648 | 1 | |
| 17 | Gasket | 838652 | 1 | |
| 18 | Nut | 968862 | 4 | (945408) |
| 19 | Spring washer | 941907 | 4 | |
| 20 | Valve cover | 858860 | 1 | |
| 21 | Valve cover | 838651 | 1 | |
| 22 | Gasket | 838654 | 2 | |
| 23 | Flange cap nut | 968458 | 8 | |
| 24 | Stud | 953034 | 8 | |
| 25 | Filler cap | 1378985 | 1 | Early prod |
| 25 | Oil filler cap | 3547599 | 1 | Later prod |
| 26 | Gasket | 940096 | 1 | |
| 27 | Hose nipple | 961603 | 1 | |
| 28 | Hose clamp | 943471 | 1 | (951787) |
| 29 | Hose | 941522 | 1 | (13799) L=45mm |
| 30 | Clamp | 945081 | 1 | |
| 31 | Flange screw | 947107 | 1 |
| Item | Part Name | Part No. |
| 7 | Expansion plug 968955 | 968955 |
| Details | |
| Engine model | TAD730G TAD730P TAD730V TD31ACE TD610G, TWD610G TD610M TD610V TD630ME TD630VE TD640VE TD710G, TWD710G TD71A, TID71A, TWD710V TD730ME, TWD731ME TD730VE, TWD731VE TWD610P TWD610V TWD630ME TWD630VE TWD710P TWD730ME TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Cylinder Block Cylinder Block SN-2071097292: A Cylinder Block SN-2071097292: B Cylinder Block SN2071097293-: A Cylinder Block SN2071097293-: B Cylinder Block: A Cylinder Block: B Cylinder Block: SN-2071097292 Cylinder Block: SN2071097293- Cylinder Head |
| Specification | |
| Descriptions | (941256) |
