Fan hub 20593362

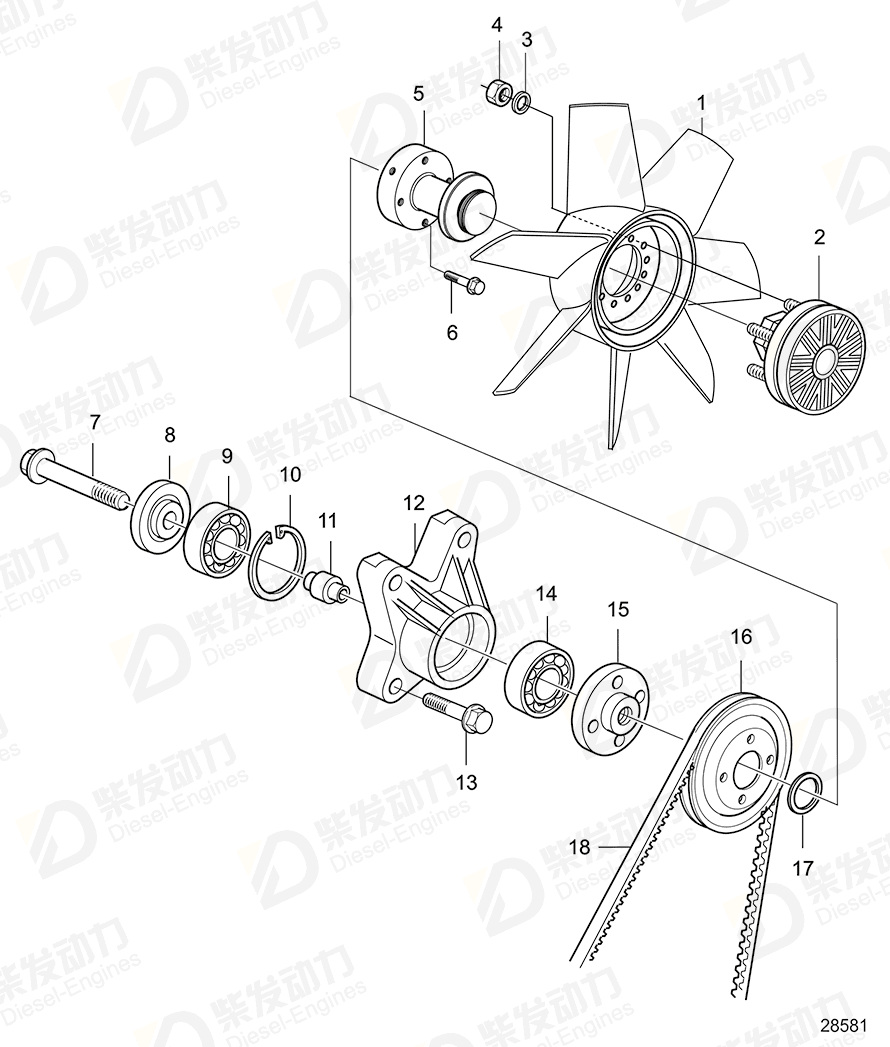

| No. | Part Name | Part Number | Qty | Description |
| 1 | Fan, suction type | 20460321 | 1 | D=660mm |
| 2 | Fan hub | 20460307 | 1 | Flange 1: 4X M8X1,25., Visco clutch 1 & 2. |
| 3 | Washer | 20460319 | 6 | |
| 4 | Flange nut | 990940 | 6 | |
| 5 | Adapter | 20593360 | 1 | |
| 6 | Flange screw | 984755 | 4 | |
| 7 | Hexagon screw | 20450754 | 1 | |
| 8 | Washer | 20999732 | 1 | |
| 9 | Ball bearing | 181335 | 1 | |
| 10 | Snap ring | 914529 | 1 | |
| 11 | Shaft | 21009699 | 1 | |
| 12 | Bearing bracket | 20715795 | 1 | |
| 13 | Hex. socket screw | 20459263 | 4 | |
| 14 | Ball bearing | 181648 | 1 | (20450749) |
| 15 | Fan hub | 20593362 | 1 | |
| 17 | Washer | 20593353 | 1 |
| Item | Part Name | Part No. |
| 15 | Fan hub 20593362 | 20593362 |
| Details | |
| Engine model | TAD520VE, TAD720VE, TAD721VE, TAD722VE |
| Application | Visco-Clutch Flange 2 on Bracket for Fan: 20460321 SN-10707001 Visco-Clutch Flange 2 on Bracket for Fan: 20460321 SN10707002- |
