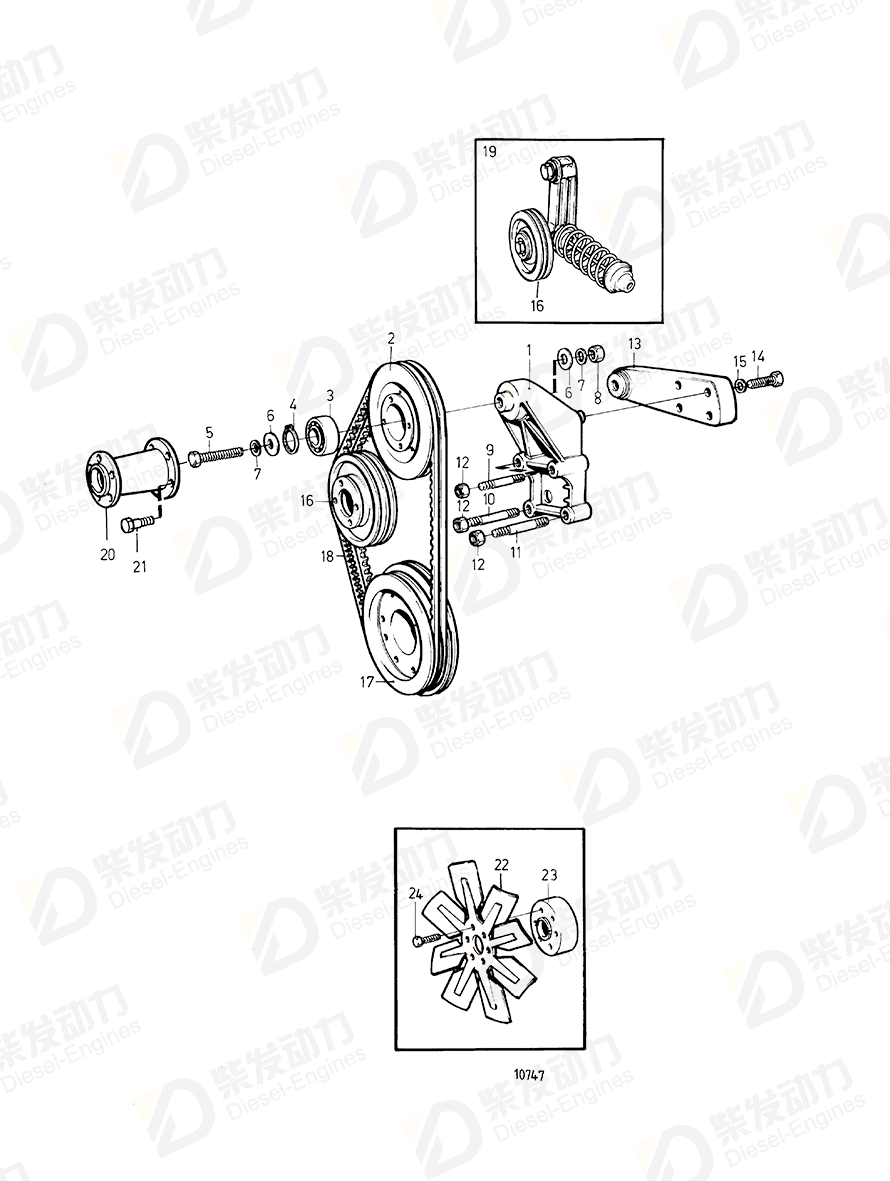

Fan hub, hub 849433
| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Bracket |
11030668 |
1 |
(4772126) |
| 2 |
Pulley |
849932 |
1 |
4 holes., 3 groove, D=159mm |
| 3 |
Ball bearing |
1660115 |
1 |
|
| 4 |
Snap ring |
914532 |
1 |
|
| 5 |
Hexagon screw |
955329 |
1 |
|
| 6 |
Washer |
4772122 |
2 |
|
| 7 |
Washer |
947541 |
2 |
|
| 8 |
Hexagon nut |
971071 |
1 |
|
| 9 |
Stud |
17378 |
2 |
L=170mm |
| 10 |
Stud |
479971 |
1 |
|
| 11 |
Stud |
479973 |
1 |
|
| 12 |
Flange nut |
971095 |
4 |
Alt |
| 13 |
Anchorage |
4772116 |
1 |
|
| 14 |
Flange screw |
965216 |
4 |
|
| 15 |
Washer |
955894 |
4 |
|
| 18 |
V-belt |
966847 |
1 |
L=2x1175mm |
| 20 |
Fan hub, hub |
849433 |
1 |
For fan with D=680mm., L=61mm, early type |
| 20 |
Fan hub |
862004 |
1 |
Alt L=61mm, 6 hole |
| 20 |
Fan hub |
863092 |
1 |
L=95mm |
| 20 |
Fan hub |
863093 |
1 |
For fan with D=680mm., Std.L=127mm |
| 21 |
Flange screw |
945444 |
4 |
|
| 22 |
Fan, suction type |
476977 |
1 |
D=680mm, 6 hole |
| 22 |
Fan, pusher type |
849060 |
1 |
D=680mm, 6 hole |
| 23 |
Spacer ring |
862002 |
1 |
Alt.use spacer sleeve when power take off (847783) is mounted., For fan with D=680mm |
| 24 |
Flange screw |
946472 |
6 |
|
| 24 |
Flange screw |
965190 |
6 |
|
| Item |
Part Name |
Part No. |
| 20 |
Fan hub, hub 849433 |
849433 |
| Details |
| Engine model |
TID71AG |
| Application |
Fan and Installation Components: A |
| Specification |
| Descriptions |
For fan with D=680mm., L=61mm, early type |
