Fan shroud 3825747

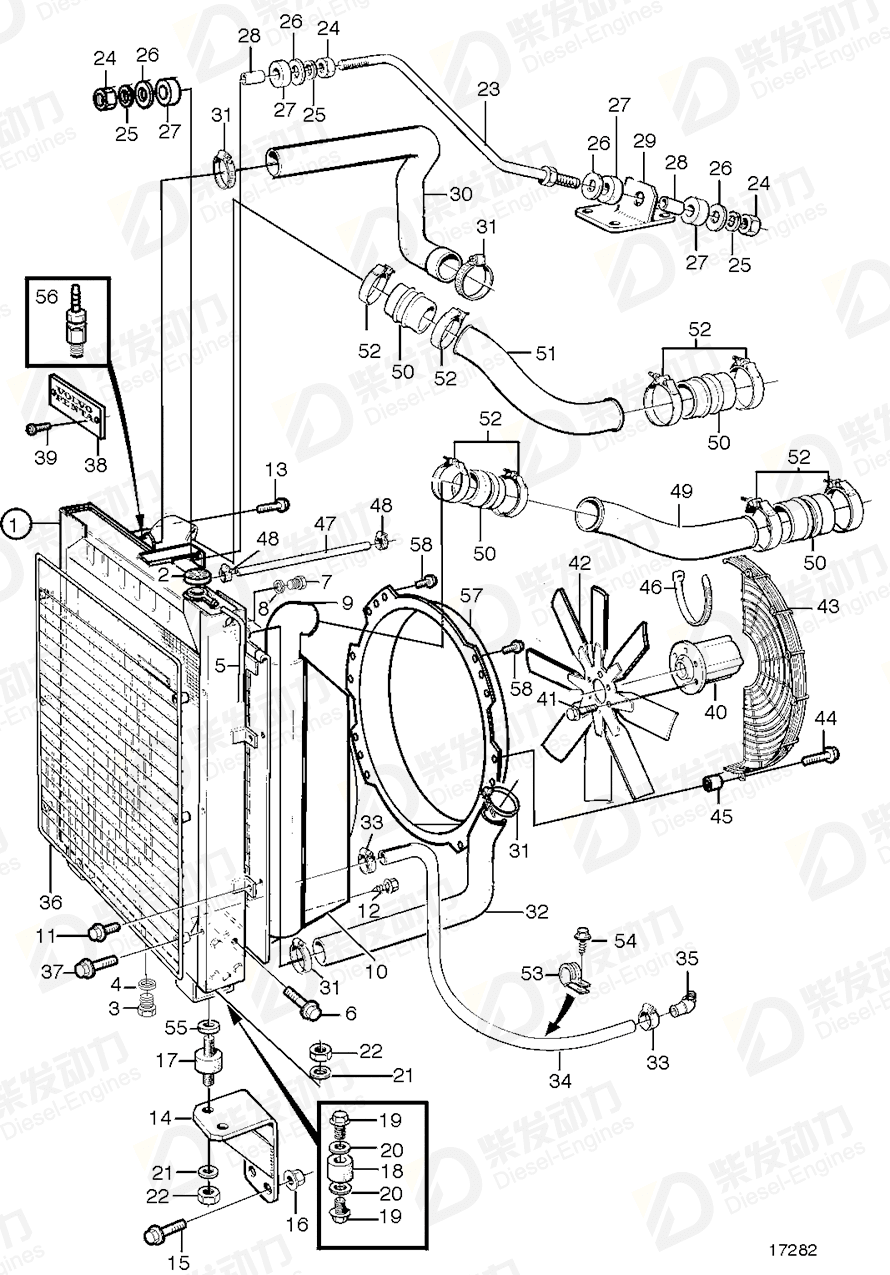

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 866089 | 1 | 1,10m²., Repl by 3829280 |
| 1 | Radiator | 3829280 | 1 | |
| 2 | Pressure cap | 866095 | 1 | (350578) |
| 3 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 4 | Gasket | 969011 | 1 | |
| 5 | Hose | 192618 | 1 | L=1400mm |
| 6 | Plug | 947660 | 1 | (836268) |
| 7 | Gasket | 11994 | 1 | |
| 8 | Flange screw | 946441 | 8 | |
| 9 | Charge air cooler | 866090 | 1 | |
| 10 | Fan shroud | 866091 | 1 | Earlier prod, |
| 10 | Fan shroud | 3825747 | 1 | Late type |
| 11 | Flange screw | 946173 | 4 | |
| 12 | Flange screw | 966862 | 2 | |
| 13 | Flange screw | 965175 | 4 | |
| 14 | Radiator bracket | 865786 | 2 | |
| 15 | Flange screw | 946329 | 4 | |
| 16 | Flange lock nut | 971098 | 4 | |
| 17 | Rubber cushion | 849170 | 2 | |
| 18 | Spacer | 866856 | 2 | When rubber cushions not been used for the radiator. |
| 19 | Flange screw | 946502 | 4 | When rubber cushions not been used for the radiator., L=20mm |
| 20 | Spring washer | 940280 | 4 | |
| 21 | Spring washer | 940280 | 4 | |
| 22 | Hexagon nut | 955850 | 4 | |
| 23 | Radiator stay | 865210 | 1 | |
| 24 | Hexagon nut | 955793 | 3 | |
| 25 | Spring washer | 941912 | 3 | |
| 26 | Washer | 948556 | 4 | |
| 27 | Spring washer | 941912 | 4 | |
| 28 | Spacer sleeve | 252202 | 2 | |
| 29 | Anchorage | 475888 | 1 | |
| 30 | Radiator hose | 865194 | 1 | |
| 31 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 32 | Radiator hose | 865195 | 1 | |
| 33 | Hose clamp | 994560 | 2 | |
| 34 | Rubber hose | 944386 | 1 | |
| 35 | Elbow nipple | 942649 | 1 | |
| 36 | Radiator protector | 865208 | 1 | |
| 37 | Flange screw | 947760 | 6 | M8x40mm |
| 38 | Emblem | 846118 | 1 | |
| 39 | Screw | 941651 | 2 | |
| 40 | Fan hub | 865768 | 1 | |
| 41 | Flange screw | 946472 | 6 | |
| 42 | Fan, pusher type | 848924 | 1 | |
| 43 | Fan protector | 865884 | 2 | Early type |
| 43 | Fan guard | 3825490 | 2 | |
| 44 | Flange screw | 945444 | 4 | |
| 44 | Flange screw | 947760 | 12 | M8x40mm |
| 45 | Spacer washer | 946048 | 4 | |
| 46 | Cable tie | 948211 | 10 | |
| 47 | Rubber hose | 943366 | 1 | L=600mm late type |
| 48 | Hose clamp | 994556 | 2 | |
| 49 | Charge air pipe | 865136 | 1 | |
| 50 | Charge air hose | 865127 | 4 | |
| 51 | Charge air pipe | 865137 | 1 | |
| 52 | Hose clamp | 865575 | 8 | |
| 53 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 54 | Hexagon screw | 945970 | 1 | |
| 55 | Washer | 191271 | 1 | To be mounted under the radiator, when spacer washer no. 3825890 is mounted between engine bracket and engine bed., TH=6mm |
| 56 | Shut-off cock | 949918 | 1 | (82745) |
| 57 | Fan ring | 3827612 | 1 | |
| 58 | Flange screw | 945444 | 2 |
| Item | Part Name | Part No. |
| 10 | Fan shroud 3825747 | 3825747 |
| Details | |
| Engine model | TAD1230P TAD1630G, TAD1630GE TAD1630P TAD1630V |
| Application | Radiator and Fan Radiator and Metal Fan |
| Specification | |
| Descriptions | (866091) Late type Repl by 1 pcs 3827830 fan shroud, 1 pcs 3827612 fan ring, 2 pcs 945444 flange screw. Replaced by 1pc fan shroud, 1pc 3827612 fan ring and 2pcs 945444 flangescrew., (866091) |
