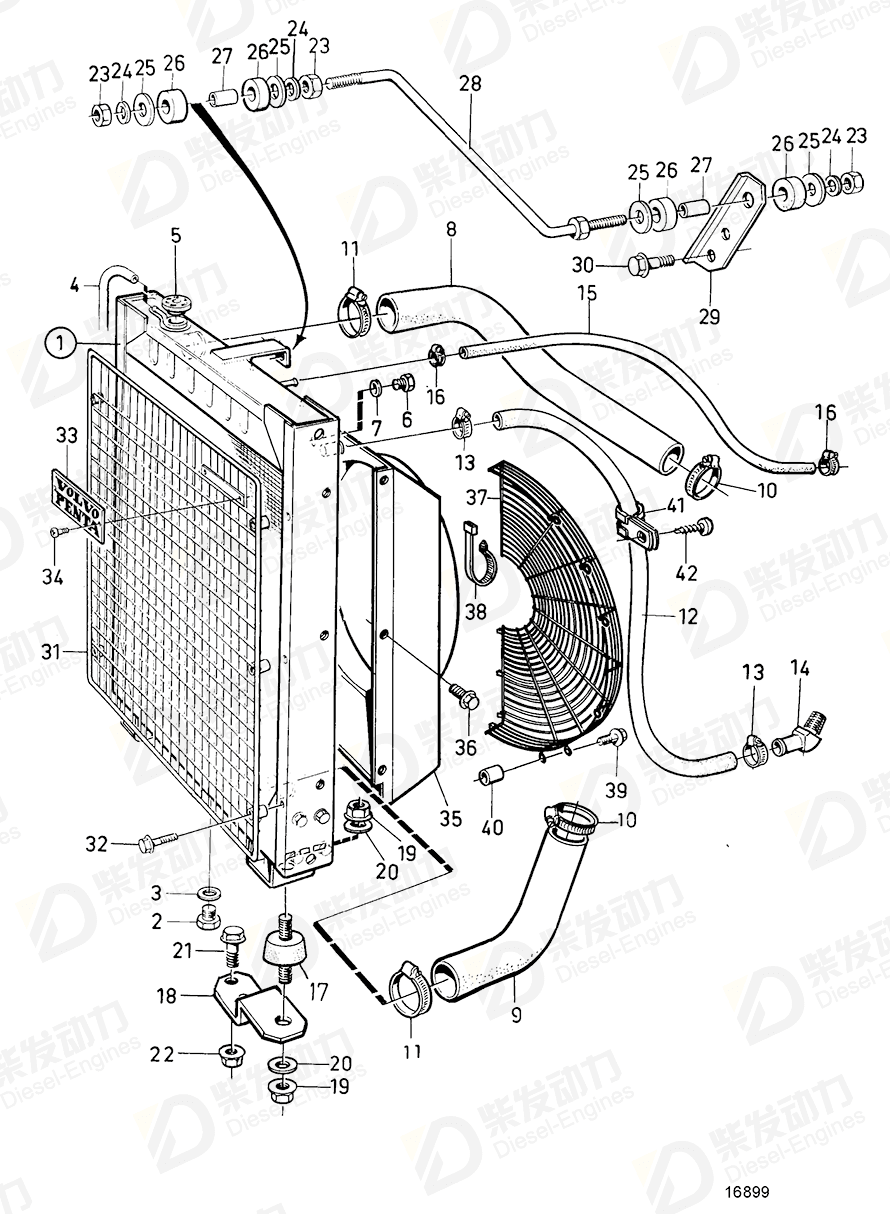

Fan shroud 3829665
| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 864891 | 1 | |
| 2 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 3 | Gasket | 969011 | 1 | |
| 4 | Hose | 192618 | 1 | L=1400mm |
| 5 | Pressure cap | 866095 | 1 | (350578) |
| 6 | Plug | 947660 | 1 | (836268) |
| 7 | Gasket | 11994 | 1 | |
| 8 | Radiator hose | 848837 | 1 | |
| 9 | Radiator hose | 848371 | 1 | Alt |
| 10 | Hose clamp | 943479 | 2 | |
| 11 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 12 | Rubber hose | 943366 | 1 | L=600mm late type |
| 13 | Hose clamp | 994560 | 2 | |
| 14 | Elbow nipple | 942649 | 1 | |
| 15 | Rubber hose | 943366 | 1 | L=600mm late type |
| 16 | Hose clamp | 994556 | 2 | |
| 17 | Rubber cushion | 849170 | 2 | |
| 18 | Bracket | 862906 | 2 | |
| 19 | Hexagon nut | 955850 | 4 | |
| 20 | Spring washer | 940280 | 4 | |
| 21 | Flange screw | 945444 | 4 | |
| 22 | Flange lock nut | 948645 | 4 | |
| 23 | Hexagon nut | 955793 | 3 | |
| 24 | Spring washer | 941912 | 4 | |
| 25 | Washer | 191940 | 4 | |
| 26 | Rubber bushing | 866857 | 4 | |
| 27 | Spacer sleeve | 252202 | 2 | |
| 28 | Radiator stay | 866670 | 1 | |
| 29 | Attaching plate | 848847 | 1 | |
| 30 | Flange screw | 946173 | 2 | |
| 31 | Radiator protector | 862956 | 1 | |
| 32 | Flange screw | 947760 | 6 | M8x40mm |
| 33 | Emblem | 846118 | 1 | |
| 34 | Screw | 941651 | 2 | |
| 35 | Fan shroud | 3829665 | 1 | |
| 36 | Flange screw | 966807 | 8 | |
| 37 | Fan guard | 3825685 | 2 | SNXXXXXXXXXX/277520- |
| 38 | Cable tie | 948211 | 8 | |
| 39 | Flange screw | 946173 | 12 | |
| 40 | Spacer sleeve | 807183 | 12 | Used on crankshaft 829999. |
| 41 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 42 | Six point socket scr | 972603 | 1 |
| Item | Part Name | Part No. |
| 35 | Fan shroud 3829665 | 3829665 |
| Details | |
| Engine model | TD100G-87 TD610G, TWD610G, TD710G TD610V, TWD610V, TWD630VE, TD640VE TD71A, TWD710V, TWD731VE |
| Application | Radiator 0,65sqm Radiator: LATER PROD |
| Specification | |
| Descriptions | (3825684) |
