Fan shroud 40005100

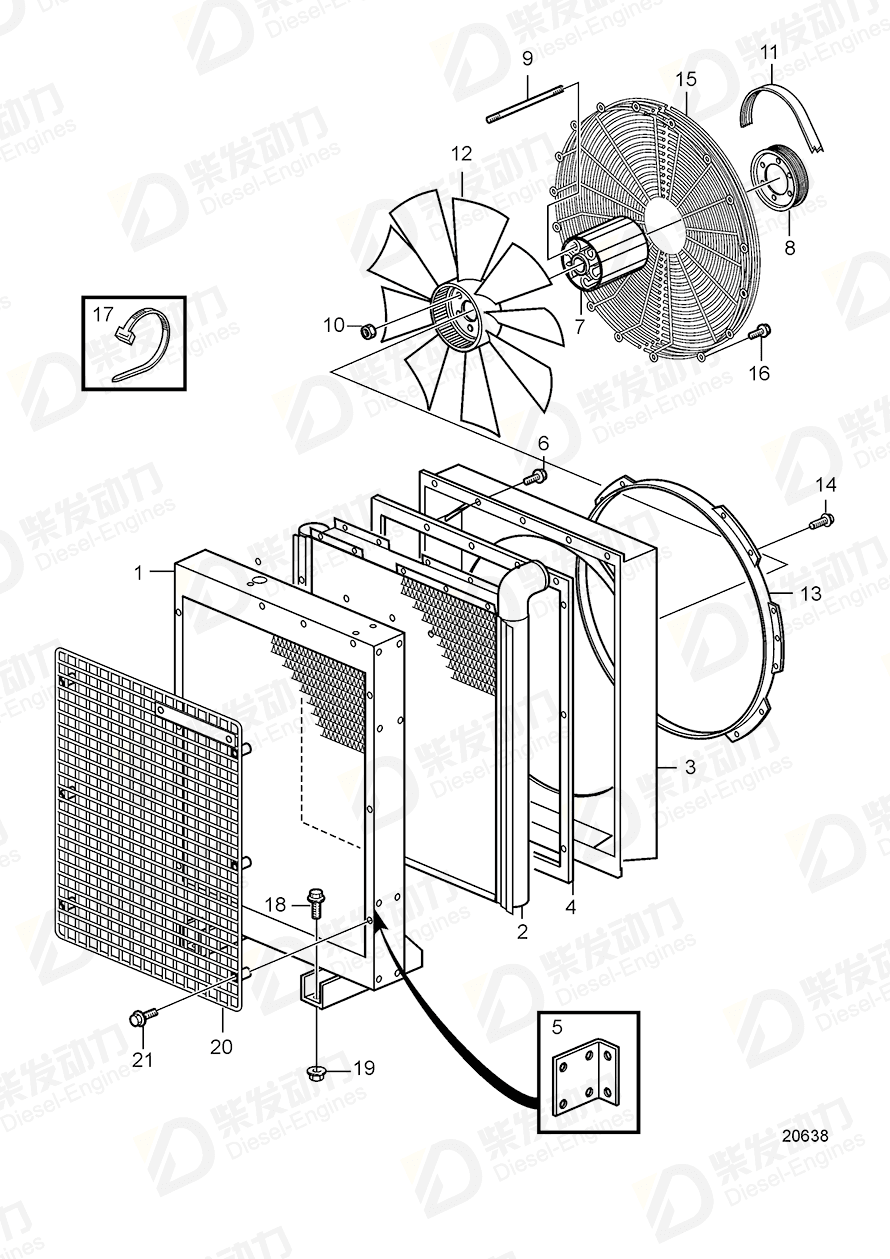

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 21146121 | 1 | |
| 2 | Charge air cooler | 3827870 | 1 | |
| 2 | Charge air cooler | 40005102 | 1 | |
| 3 | Fan shroud | 3826684 | 1 | |
| 3 | Fan shroud | 40005100 | 1 | |
| 4 | Sealing strip | 3827816 | 1 | (3831141) |
| 5 | Bracket | 40005104 | 4 | |
| 6 | Flange screw | 967949 | 1 | |
| 7 | Fan hub | 3837740 | 1 | |
| 8 | Pulley | 3807446 | 1 | Ratio 1:1,07 |
| 9 | Stud | 981590 | 6 | |
| 10 | Flange lock nut | 971098 | 6 | |
| 11 | V-ribbed belt | 3838617 | 1 | For 3807446 |
| 12 | Fan | 3828964 | 1 | |
| 13 | Fan ring | 3827612 | 1 | |
| 14 | Flange screw | 984734 | 12 | |
| 15 | Fan guard | 3825490 | 2 | |
| 16 | Flange screw | 984734 | 12 | |
| 17 | Cable tie | 948211 | 1 | |
| 18 | Flange screw | 946817 | 8 | |
| 19 | Flange nut | 990942 | 8 | |
| 20 | Radiator protector | 3827871 | 1 | |
| 21 | Flange screw | 994385 | 6 | L=45mm |
| Item | Part Name | Part No. |
| 3 | Fan shroud 40005100 | 40005100 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE, TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE, TAD1350GE, TAD1351GE, TAD1352GE, TAD1353GE, TAD1354GE, TAD1355GE TAD1350VE TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE TAD1360VE TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1361VE TAD1363VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE TAD940GE TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TAD941GE |
| Application | Cooling System Fan and Fan Ring. D=890mm. Pushing. With Radiator Radiator and Fan. Pusher Radiator and Fan. Pusher. 1, 09:1 Radiator. Pusher Visco Fan |
| Specification | |
| Descriptions | SN 164684- |
