Ferrule 980786

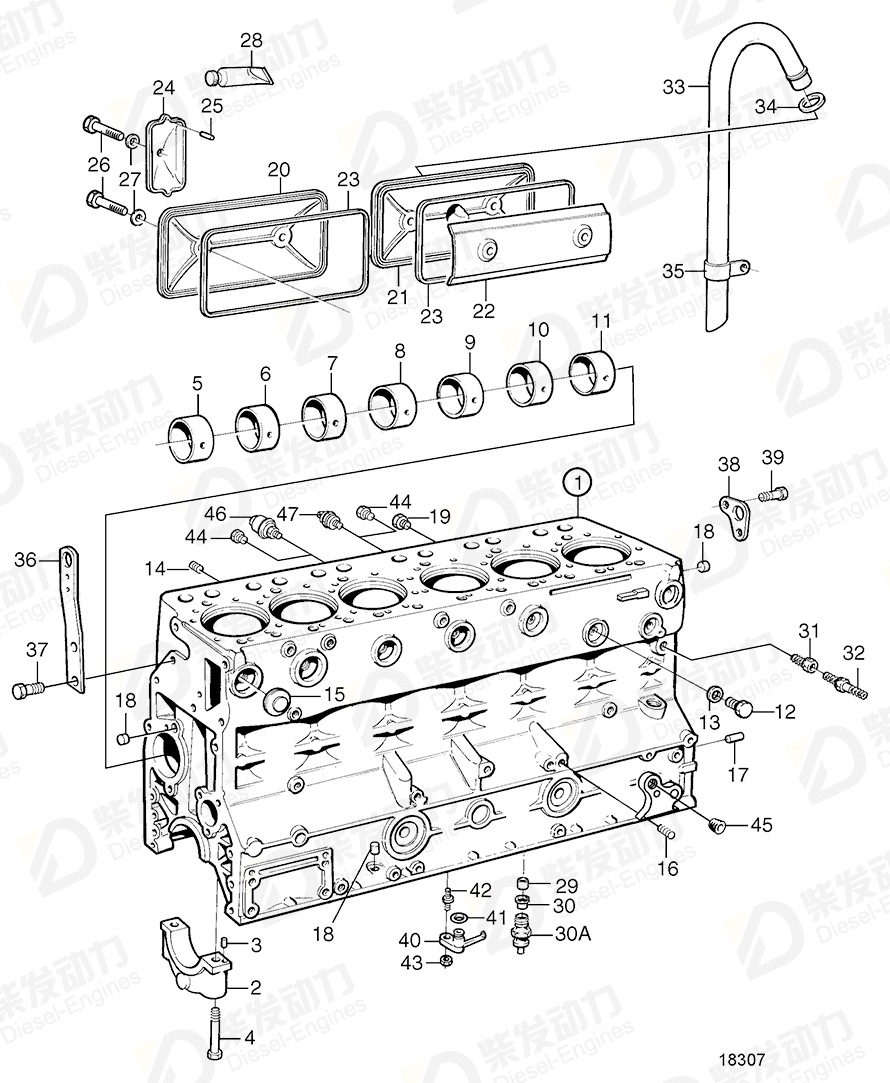

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 8192730 | 1 | |
| 3 | Pin | 422426 | 1 | |
| 4 | Flange screw | 8192738 | 14 | |
| 5 | Bushing | 422076 | 1 | |
| 6 | Bushing | 8192676 | 1 | |
| 7 | Bushing | 8192677 | 1 | |
| 8 | Bushing | 8192678 | 1 | |
| 9 | Bushing | 422077 | 1 | |
| 10 | Bushing | 8192679 | 1 | |
| 11 | Bushing | 422082 | 1 | |
| 14 | Plug | 422369 | 2 | |
| 15 | Expansion plug | 968955 | 6 | (941256) |
| 16 | Plug | 968145 | 1 | (952357) |
| 17 | Pin | 191171 | 2 | |
| 18 | Cap plug | 955082 | 6 | |
| 19 | Plug | 479976 | 1 | (946559) |
| 20 | Inspection cover | 420120 | 1 | |
| 21 | Inspection cover | 420121 | 1 | |
| 22 | Splash plate | 3978045 | 1 | (471858) |
| 23 | Gasket | 20591544 | 2 | |
| 24 | Cover | 471854 | 1 | |
| 25 | Spring pin | 951973 | 1 | |
| 26 | Shoulder screw | 471855 | 5 | |
| 27 | Sealing ring | 471856 | 5 | |
| 28 | Sealant | 1161231 | 1 | 304ml |
| 29 | Tube | 864531 | 1 | |
| 30 | Ferrule | 980786 | 1 | |
| 31 | Nipple | 479954 | 1 | (190130) |
| 32 | Shut-off cock | 949918 | 1 | (82745) |
| 33 | Tube | 471857 | 1 | |
| 34 | Sealing ring | 421158 | 1 | |
| 35 | Clamp | 968124 | 1 | |
| 37 | Flange screw | 965191 | 1 | |
| 37 | Flange screw | 965194 | 1 | |
| 40 | Piston cooling jet | 420628 | 6 | |
| 41 | Sealing ring | 466874 | 6 | |
| 42 | Stud | 471596 | 6 | |
| 43 | Lock nut | 948570 | 6 | |
| 44 | Plug | 479979 | 4 | |
| 45 | Plug | 968063 | 1 | |
| 30A | Reduction valve | 864533 | 1 |
| Item | Part Name | Part No. |
| 30 | Ferrule 980786 | 980786 |
| Details | |
| Engine model | TAD730G TAD730P TAD730V TD610G, TWD610G TD610V TD610V, TWD630VE TD630VE TD640VE TD710G, TWD710G TD71A, TID71A, TD730VE, TWD731VE TD71A, TID71A, TWD710V, TD730VE, TWD731VE TWD610P TWD610V TWD630VE TWD710P TWD731VE TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Cylinder Block: SN-2071097292 Cylinder Block: SN2071097293- Lubricating System Lubricating System with Low Oil Sump Lubricating System, 10° Inclination, Low Sump Lubricating System, 10° Inclination, Low Sump: A Lubricating System, 10° Inclination, Low Sump: B Lubricating System, 10° Inclination, Low Sump: C Lubricating System, 40° Inclination, Low Sump Lubricating System, 40° Inclination, Low Sump: A Lubricating System, 40° Inclination, Low Sump: B Lubricating System, 40° Inclination: A Lubricating System, 40° Inclination: B Lubricating System, 40° Inclination: C Lubricating System, Low Noise Sump Lubricating System, Low Noise Sump: C Lubricating System, Low Noise Sump: TD630VE SN-2061139522 Lubricating System, Low Noise Sump: TD630VE SN2061139523- Lubricating System, Standard Lubricating System, Standard: A Lubricating System, Standard: B Lubricating System, Standard: C Lubricating System, Standard: SN-2061139522 Lubricating System, Standard: SN2061139523- Lubricating System, Vehicle Type Lubricating System: C Lubricating System: SN-2061097292 Lubricating System: SN2061097293- |
| Specification | |
| Descriptions | (956972) In combination with oil cooler. |
