Filler cap 321973

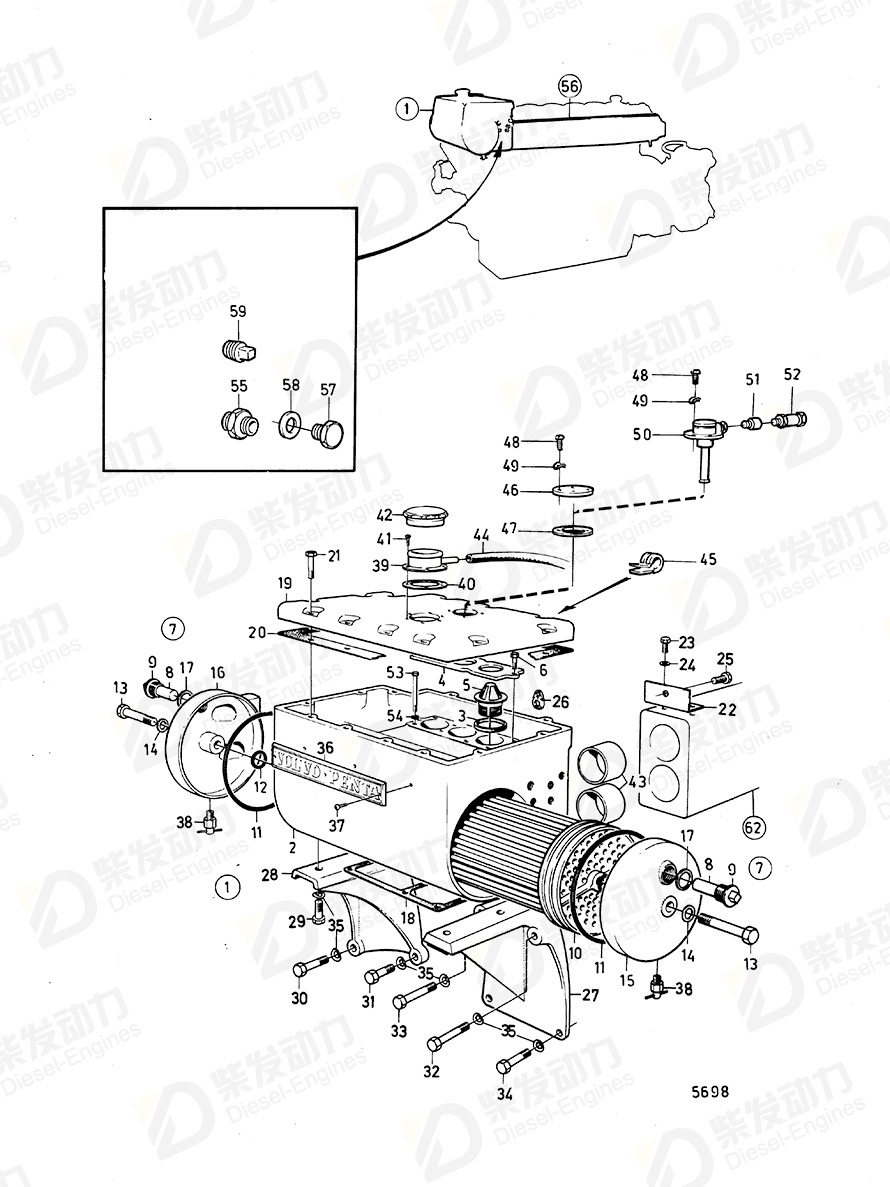

| No. | Part Name | Part Number | Qty | Description |
| 1 | Heat exchanger | 844137 | 1 | |
| 2 | Housing | 837183 | 1 | |
| 3 | Sealing ring | 416033 | 3 | |
| 4 | Plate | 824134 | 1 | |
| 5 | Thermostat | 467014 | 2 | 76°C MO-33839/XXXX |
| 5 | Thermostat | 824200 | 1 | 70°C MO 33840/XXXX- |
| 5 | Thermostat | 1544297 | 2 | 76°C later prod |
| 5 | Thermostat | 1544389 | 1 | 70°C later prod |
| 6 | Hexagon screw | 942342 | 4 | |
| 7 | Zinc electrode | 823660 | 4 | REPL BY 823661 |
| 8 | Zinc anode | 823661 | 4 | |
| 9 | Plug | 823662 | 4 | |
| 10 | Insert | 823278 | 1 | |
| 11 | O-ring | 400797 | 4 | |
| 12 | O-ring | 925057 | 2 | |
| 13 | Screw | 823279 | 2 | |
| 14 | Gasket | 11996 | 2 | |
| 15 | End cover | 820715 | 1 | |
| 16 | End cover | 843852 | 1 | |
| 17 | Gasket | 836169 | 4 | Early type |
| 18 | Gasket | 821853 | 1 | |
| 19 | Cover | 843746 | 1 | |
| 20 | Gasket | 820726 | 1 | |
| 21 | Hexagon screw | 955525 | 12 | |
| 22 | Anchorage | 820728 | 1 | |
| 23 | Hexagon screw | 940114 | 2 | |
| 24 | Washer | 940097 | 2 | |
| 25 | Hexagon screw | 955560 | 1 | |
| 26 | Sealing ring | 423139 | 1 | |
| 27 | Bracket | 820730 | 1 | |
| 28 | Bracket | 823036 | 1 | |
| 29 | Hexagon screw | 940162 | 4 | MO-XXXXX/105194 |
| 30 | Hexagon screw | 955541 | 3 | |
| 31 | Hexagon screw | 955535 | 1 | |
| 32 | Hexagon screw | 955543 | 1 | |
| 33 | Hexagon screw | 940156 | 1 | |
| 34 | Hexagon screw | 955539 | 2 | |
| 35 | Spring washer | 942336 | 12 | |
| 36 | Sign | 820232 | 1 | |
| 37 | Cross recessed screw | 950210 | 3 | |
| 38 | Shut-off cock | 82744 | 4 | |
| 39 | Cap | 821348 | 1 | |
| 40 | Gasket | 821349 | 1 | |
| 41 | Cross recessed sunk | 950145 | 6 | L=16mm |
| 42 | Filler cap | 321973 | 1 | |
| 43 | Hose | 820725 | 2 | |
| 44 | Hose | 192618 | 1 | L=1400mm |
| 45 | Clamp | 952625 | 1 | |
| 46 | Cap | 843760 | 1 | SPEC 867521, 867527 |
| 47 | Gasket | 843761 | 1 | |
| 48 | Cross recessed screw | 956076 | 4 | |
| 49 | Spring washer | 941905 | 4 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 50 | Float breaker | 837797 | 1 | D70B spec. 867055, 867060. TD70B spec. 867066. |
| 51 | Reduction sleeve | 843906 | 1 | REPLACED BY 1PC 1544389. |
| 52 | Grommet | 881191 | 1 | Early type |
| 53 | Hex. socket screw | 942232 | 6 | |
| 54 | Washer | 942551 | 6 | |
| 55 | Nipple | 844127 | 1 | SPEC. 867131., SEE GROUP 3 |
| 56 | Exhaust pipe | 896700 | 1 | |
| 57 | Plug | 180761 | 1 | |
| 58 | Gasket | 11996 | 1 | |
| 59 | Plug | 952075 | 1 | |
| 59 | Plug | 952077 | 2 |
| Item | Part Name | Part No. |
| 42 | Filler cap 321973 | 321973 |
| Details | |
| Engine model | D100BHC, TD100AHC TAD120AHC TAD120BHC TAD120CHC TD120AHC TD120BHC |
| Application | HEAT EXCHANGER AND THERMOSTAT WITH INSTALLATION COMPONENTS Heat Exchanger and Thermostat with Installation Components: A Heat Exchanger and Thermostat with Installation Components: B Heat Exchanger and Thermostat with Installation Components: C |
