Filler cap 9957013

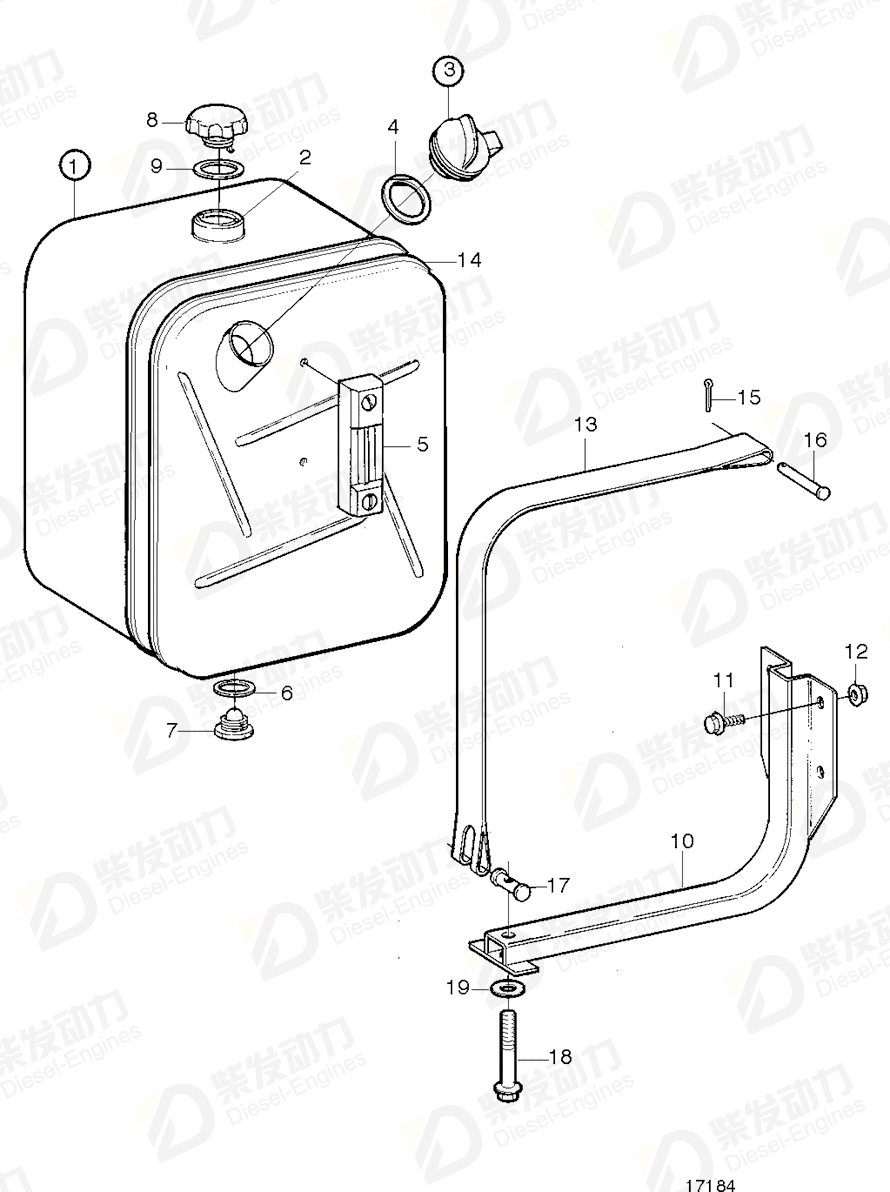

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Hydraulic fluid tank |
3036180 |
1 |
|
| 3 |
Filler cap |
9957013 |
1 |
|
| 4 |
Gasket |
9519481 |
1 |
|
| 5 |
Gauge |
3036181 |
1 |
|
| 6 |
Gasket |
949329 |
1 |
|
| 7 |
Magnetic plug |
981281 |
1 |
|
| 8 |
Breather cap |
739846 |
1 |
|
| 9 |
Gasket |
1275379 |
1 |
|
| 10 |
Bracket |
3030092 |
2 |
|
| 11 |
Flange screw |
945444 |
8 |
|
| 12 |
Flange lock nut |
948645 |
8 |
|
| 13 |
Tensioning band |
9515386 |
2 |
|
| 14 |
Strip |
1075220 |
1 |
|
| 15 |
Clevis pin |
964864 |
2 |
|
| 16 |
Split pin |
907849 |
2 |
|
| 17 |
Stub |
8150742 |
2 |
|
| 18 |
Hex. socket screw |
8150741 |
2 |
|
| 19 |
Washer |
976944 |
2 |
|
| Item |
Part Name |
Part No. |
| 3 |
Filler cap 9957013 |
9957013 |
| Details |
| Engine model |
DH10A, THD102KD, THD102KB |
| Application |
Hydraulic Fluid Tank |
Tags:
Filler cap,
Volvo Penta,
9957013
