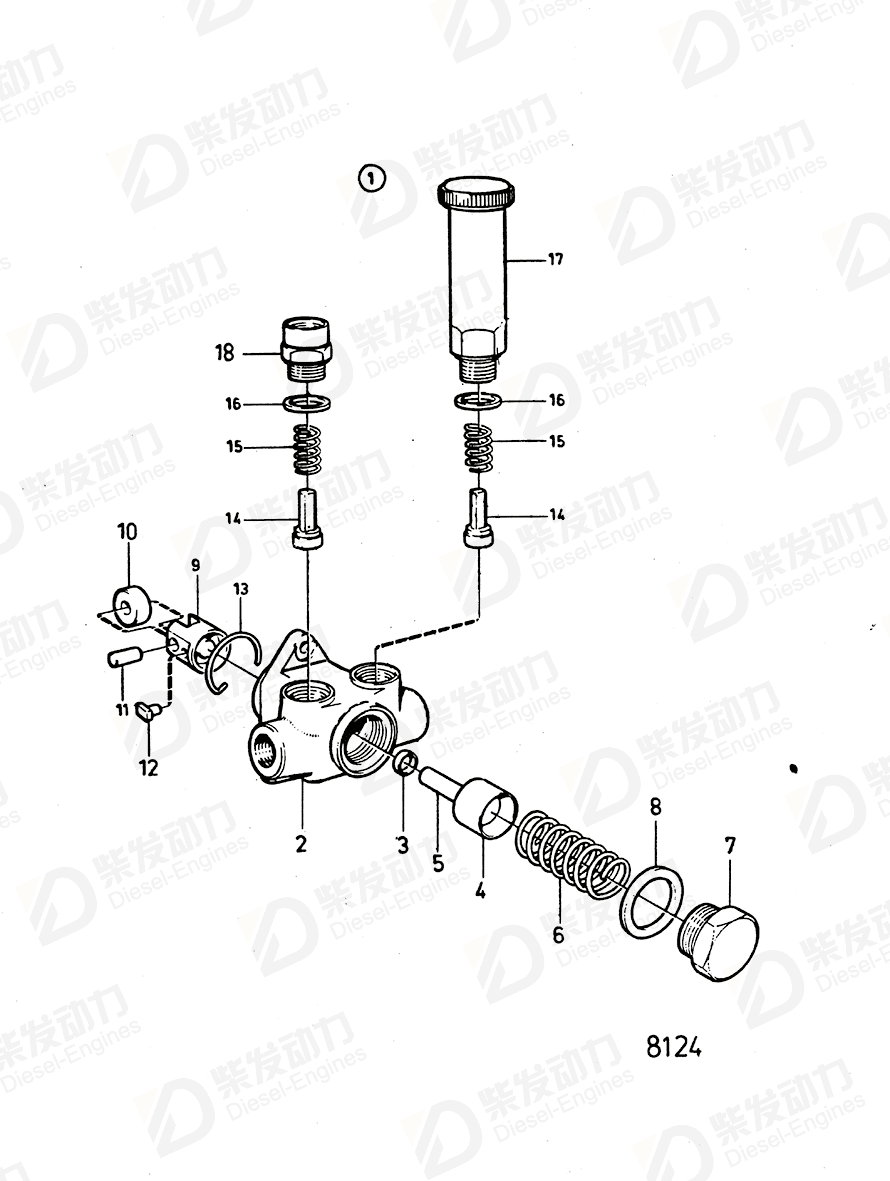

Fitting 244177
| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Feed pump |
244483 |
1 |
|
| 3 |
O-ring |
240270 |
1 |
|
| 4 |
Pump piston |
240548 |
1 |
D=21,989-21,994mm |
| 5 |
Clamping bolt |
241346 |
1 |
|
| 6 |
Spring |
244392 |
1 |
|
| 7 |
Screw |
244493 |
1 |
|
| 8 |
Gasket |
18844 |
1 |
|
| 9 |
Cam follower |
244494 |
1 |
|
| 10 |
Roller |
244495 |
1 |
|
| 11 |
Pin |
244496 |
1 |
|
| 12 |
Plug |
244497 |
2 |
|
| 13 |
Spring ring |
238368 |
1 |
|
| 14 |
Valve |
243136 |
2 |
|
| 15 |
Compression spring |
76706 |
2 |
|
| 16 |
Gasket |
240572 |
2 |
|
| 17 |
Hand pump |
76703 |
1 |
Alt 843435 |
| 18 |
Fitting |
244177 |
1 |
|
| Item |
Part Name |
Part No. |
| 18 |
Fitting 244177 |
244177 |
| Details |
| Application |
Fuel Feed Pump |
Tags:
Fitting,
Volvo Penta,
244177
