Fitting 815387

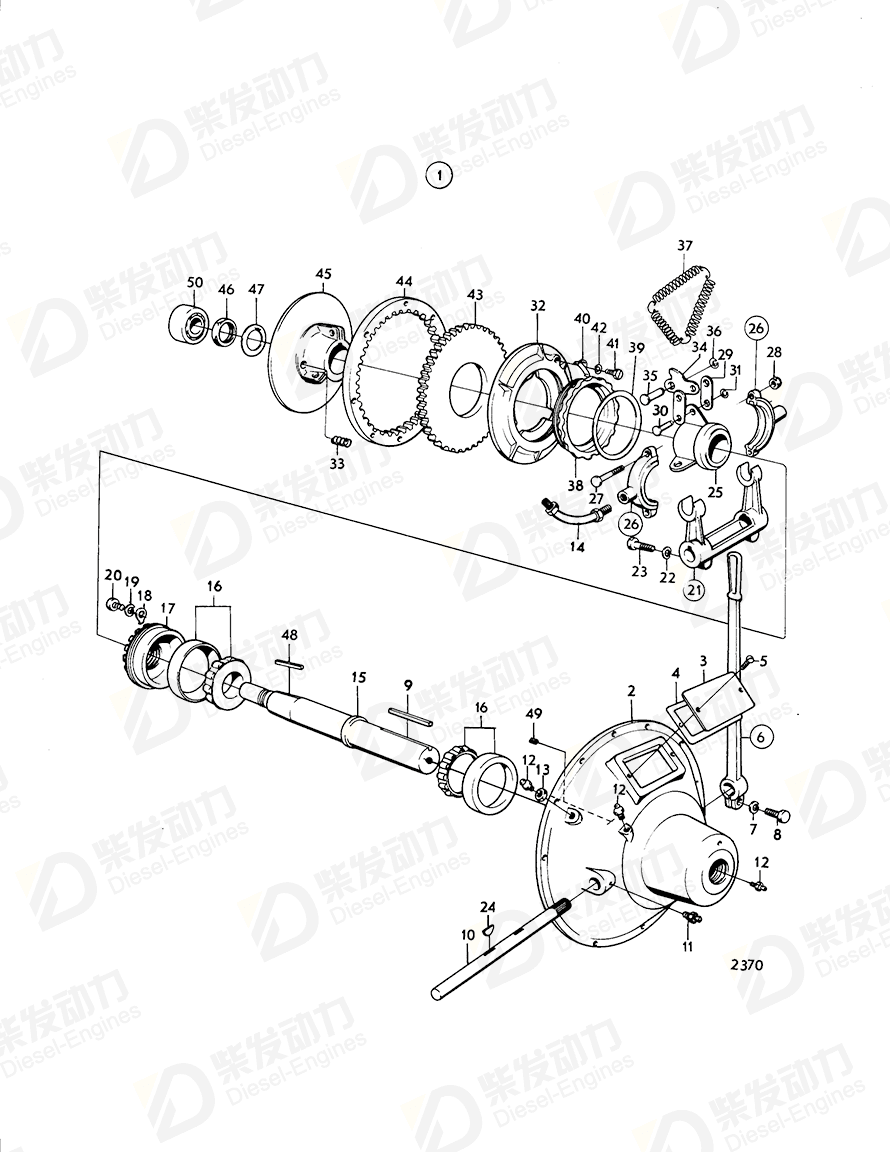

| No. | Part Name | Part Number | Qty | Description |
| 1 | Clutch | 849716 | 1 | |
| 3 | Instruction | 815347 | 1 | |
| 4 | Gasket | 815334 | 1 | |
| 5 | Screw | 842184 | 2 | |
| 6 | Control lever | 815333 | 1 | Is not included in clutch 849716 complete |
| 7 | Spring washer | 942336 | 1 | |
| 8 | Hexagon screw | 940162 | 1 | MO-XXXXX/105194 |
| 9 | Key | 815303 | 1 | |
| 10 | Shaft | 815319 | 1 | |
| 11 | Lubricator | 819353 | 2 | |
| 12 | Lubricator | 827632 | 3 | |
| 13 | Nut | 815351 | 1 | |
| 14 | Fitting | 815387 | 1 | |
| 15 | Drive | 815346 | 1 | |
| 16 | Bearing | 815340 | 2 | |
| 17 | Retainer | 815345 | 1 | |
| 18 | Plate | 815316 | 1 | |
| 19 | Spring washer | 941907 | 1 | |
| 20 | Hexagon screw | 940113 | 1 | |
| 21 | Release fork | 815337 | 1 | |
| 22 | Spring washer | 942336 | 2 | |
| 23 | Hexagon screw | 955535 | 2 | |
| 24 | Woodruff key | 815320 | 2 | |
| 26 | Release bearing | 815360 | 1 | |
| 27 | Hexagon screw | 955661 | 2 | |
| 28 | Lock nut | 950373 | 2 | |
| 29 | Link | 815371 | 6 | |
| 30 | Pin | 815361 | 6 | |
| 31 | Lock ring | 815359 | 6 | |
| 32 | Plate | 815367 | 1 | |
| 33 | Spring | 815372 | 3 | |
| 34 | Intermediate lever | 815370 | 3 | |
| 35 | Pin | 815362 | 3 | |
| 36 | Lock ring | 815358 | 3 | |
| 37 | Spring | 815379 | 1 | |
| 38 | Nut | 817763 | 1 | |
| 39 | Adjusting washer | 817764 | 1 | |
| 40 | Lock | 815377 | 1 | |
| 41 | Screw | 827520 | 1 | |
| 42 | Toothed washer | 940155 | 1 | |
| 43 | Disc | 815357 | 1 | |
| 44 | Gear ring | 814879 | 1 | Is not included in clutch 849716 complete |
| 45 | Clutch | 815366 | 1 | |
| 46 | Nut | 815321 | 1 | |
| 47 | Washer | 815322 | 1 | |
| 48 | Key | 827518 | 1 | |
| 49 | Set screw | 815330 | 1 | |
| 50 | Ball bearing | 183455 | 1 | Is not included in clutch 849716 complete |
| Item | Part Name | Part No. |
| 14 | Fitting 815387 | 815387 |
| Details | |
| Application | Clutch Rockford Borg Warner 10'' Clutch Rockford Borg Warner 8'' Utv 2, 8:1, 10'' Utv 2, 8:1: 815261 Clutch Rockford Borg Warner 8'' Utv 2, 8:1, 10'' Utv 2, 8:1: 820803 Clutch Rockford Borg Warner 8'': 849716 |
