Fitting nut 326596

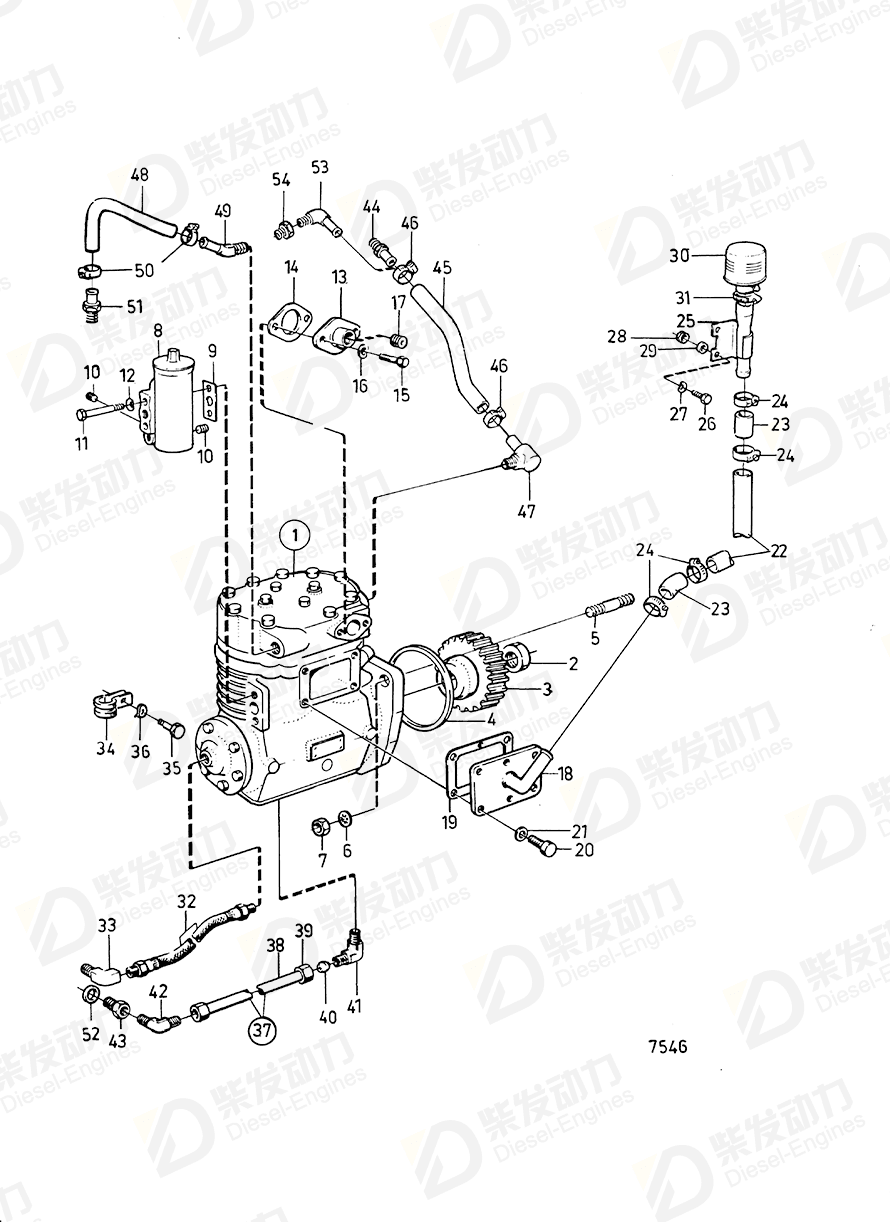

| No. | Part Name | Part Number | Qty | Description |
| 1 | Compressor | 1080437 | 1 | E.U=3803136 |
| 1 | Compressor | 1590264 | 1 | |
| 1 | Compressor | 1612335 | 1 | Also available as an exchange part., Repl by 1080437 |
| 1 | Compressor, exch | 3803136 | 1 | E.U=3803136 |
| 2 | Nut | 1518355 | 1 | |
| 3 | Gear | 423087 | 1 | |
| 3 | Gear | 478289 | 1 | |
| 4 | O-ring | 975610 | 1 | For engines without air compressor. |
| 5 | Stud | 953346 | 3 | |
| 6 | Spring washer | 941911 | 3 | |
| 7 | Hexagon nut | 955828 | 3 | |
| 8 | Governor | 1503492 | 1 | |
| 9 | Gasket | 1626068 | 1 | |
| 10 | Plug | 479979 | 1 | |
| 11 | Hexagon screw | 955304 | 2 | |
| 11 | Flange screw | 965218 | 1 | |
| 12 | Spring washer | 941907 | 2 | |
| 13 | Flange | 330634 | 1 | |
| 14 | Gasket | 1619957 | 1 | |
| 15 | Hexagon screw | 955297 | 2 | |
| 16 | Spring washer | 941907 | 2 | |
| 17 | Plug | 968145 | 1 | (952357) |
| 18 | Air inlet | 864938 | 1 | |
| 19 | Gasket | 3028016 | 1 | |
| 20 | Hexagon screw | 955269 | 6 | For 1570594 |
| 21 | Spring washer | 941906 | 6 | |
| 22 | Tube | 847337 | 1 | Late type |
| 23 | Hose | 192358 | 1 | L=170mm MOXXXXX/31956 |
| 24 | Hose clamp | 943473 | 4 | |
| 25 | Bracket | 1587040 | 1 | |
| 26 | Hexagon screw | 940159 | 2 | |
| 27 | Spring washer | 941907 | 2 | |
| 28 | Hexagon nut | 955826 | 2 | |
| 29 | Washer | 955894 | 2 | |
| 30 | Filter | 8152009 | 1 | (1082111) |
| 31 | Hose clamp | 943474 | 1 | |
| 32 | Hose assembly | 1507501 | 1 | |
| 33 | Elbow nipple | 180110 | 1 | MO 26456-. |
| 34 | Clamp | 941565 | 1 | |
| 35 | Hexagon screw | 940133 | 1 | |
| 36 | Spring washer | 942336 | 1 | |
| 37 | Hose assembly | 966601 | 1 | |
| 39 | Fitting nut | 326596 | 2 | |
| 40 | Sleeve | 326599 | 2 | |
| 41 | Elbow nipple | 944276 | 1 | |
| 42 | Nipple | 326576 | 1 | |
| 43 | Nipple | 944727 | 1 | |
| 44 | Elbow nipple | 942240 | 1 | |
| 45 | Hose | 941522 | 1 | (13799) L=45mm |
| 46 | Hose clamp | 943472 | 2 | |
| 47 | Elbow nipple | 941534 | 1 | BB170B MO-XXXX/89352. |
| 47 | Hose nipple | 961603 | 1 | |
| 48 | Hose | 941522 | 1 | (13799) L=45mm |
| 49 | T-nipple | 192531 | 1 | |
| 49 | Elbow nipple | 941534 | 1 | BB170B MO-XXXX/89352. |
| 50 | Hose clamp | 943472 | 2 | |
| 51 | Nipple, air compr. | 479978 | 1 | (961654) |
| 52 | Gasket | 18818 | 1 | |
| 53 | Elbow nipple | 941534 | 1 | BB170B MO-XXXX/89352. |
| 54 | Reduction nipple | 16291 | 1 | MO 28309-. |
| Item | Part Name | Part No. |
| 39 | Fitting nut 326596 | 326596 |
| Details | |
| Engine model | D70CHC D70CRC TD30A TD31ACE TD610M, TD630ME, TWD630ME TD610V, TD630VE, TWD630VE, TD640VE TD70CHC TD70CRC TD70G-83 TID70G |
| Application | Air Compressor 15.5 Air Compressor 15.5 W 5 and Installation Components Air Compressor 15.5W31 and Installation Components Air Compressor TUFLO 700 and Installation Components: A Air Compressor TUFLO 700 and Installation Components: B By-pass Filter for Higher Oil Volume, Alternative Location. Coolant Supervision with Installation Components: A Coolant Supervision with Installation Components: B Coolant Supervision with Installation Components: C Coolant Supervision with Installation Components: D Fuel System |
