Flange 4778372

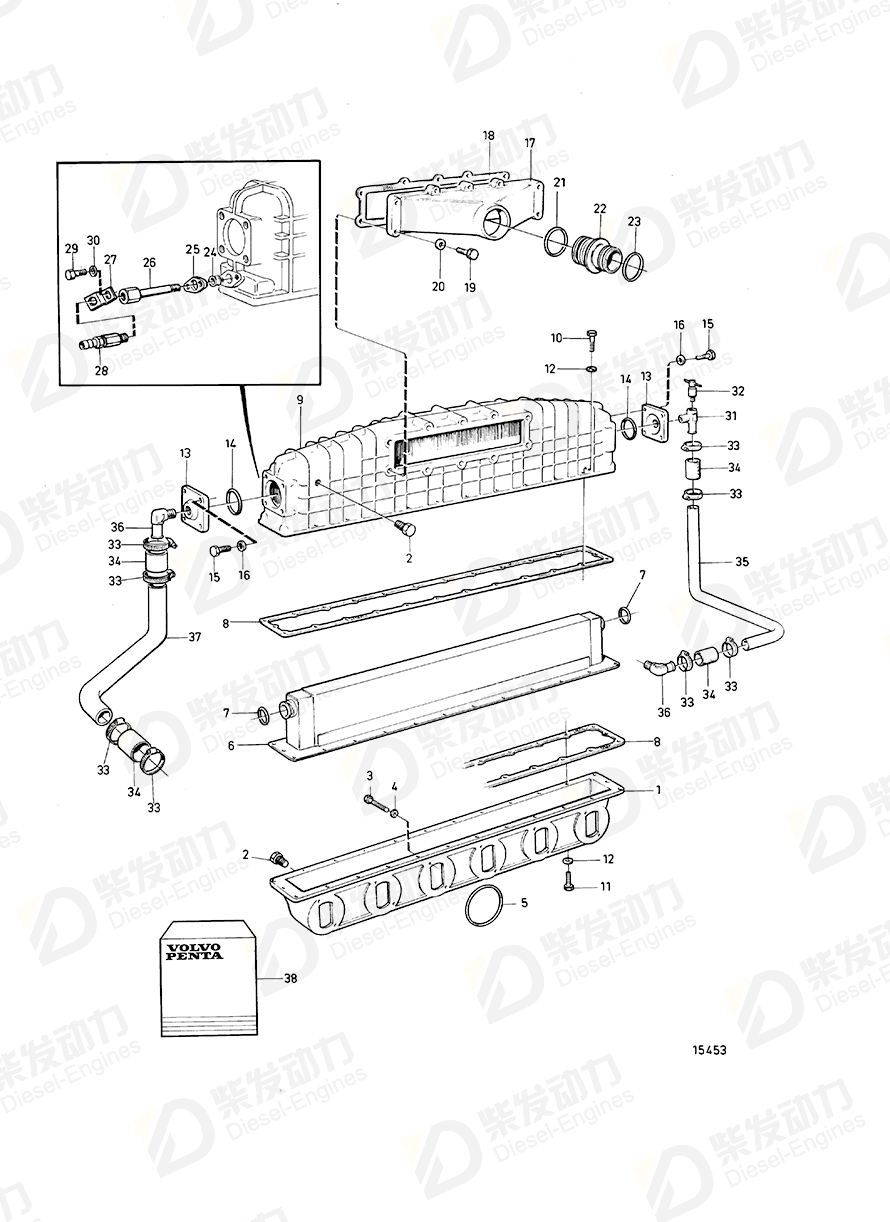

| No. | Part Name | Part Number | Qty | Description |
| 2 | Plug | 479979 | 3 | |
| 3 | Hexagon screw | 955531 | 3 | Late type |
| 3 | Hexagon screw | 955533 | 2 | For engine with 40° angle of inclination, L=102mm |
| 3 | Hexagon screw | 959793 | 5 | |
| 3 | Hexagon screw | 959796 | 2 | L=140mm |
| 4 | Spring washer | 941907 | 12 | |
| 5 | Sealing ring | 469829 | 6 | Included in gasket kit. |
| 6 | Charge air cooler | 866457 | 1 | |
| 7 | O-ring | 425695 | 2 | |
| 8 | Gasket | 3979052 | 2 | |
| 9 | Inlet pipe | 11032229 | 1 | |
| 10 | Hex. socket screw | 956572 | 10 | SEE GROUP 2B |
| 11 | Hexagon screw | 940186 | 16 | |
| 12 | Spring washer | 941907 | 26 | |
| 13 | Flange | 4778372 | 2 | |
| 14 | O-ring | 925094 | 2 | Included in gasket kit 876025 for induction manifold+intercooler. |
| 15 | Hexagon screw | 955525 | 8 | |
| 16 | Washer | 955894 | 8 | |
| 17 | Connecting pipe | 469659 | 1 | |
| 18 | Gasket | 469662 | 1 | |
| 19 | Hexagon screw | 940161 | 10 | For engine with 40° angle of inclination, L=45mm |
| 20 | Spring washer | 941907 | 10 | |
| 21 | O-ring | 469508 | 1 | Included in gasket kit. |
| 22 | Intermediate pipe | 469510 | 1 | |
| 23 | O-ring | 469509 | 1 | Included in gasket kit. |
| 24 | Sealing ring | 3825051 | 1 | |
| 25 | Flange | 3825050 | 1 | |
| 26 | Shut-off cock | 3825067 | 1 | |
| 27 | Lock plate | 11031112 | 1 | |
| 28 | Peg | 966723 | 1 | |
| 29 | Hexagon screw | 955514 | 2 | L = 25 MM |
| 30 | Spring washer | 949607 | 2 | |
| 31 | Elbow nipple | 943516 | 1 | |
| 32 | Shut-off cock | 82744 | 1 | |
| 33 | Hose clamp | 994559 | 8 | |
| 34 | Rubber hose | 943369 | 1 | L=165 mm |
| 35 | Pipe | 847436 | 1 | (863355) |
| 36 | Elbow nipple | 942590 | 2 | |
| 37 | Pipe | 847436 | 1 | (863355) |
| 38 | Intake gasket kit, induct.manifold+ intercool | 876025 | 1 | See group 99 |
| Item | Part Name | Part No. |
| 13 | Flange 4778372 | 4778372 |
| Details | |
| Engine model | TWD1010G TWD1030ME TWD1031VE |
| Application | Induction Manifold and Installation Components Induction Manifold and Intercooler Inlet Manifold and Aftercooler |
