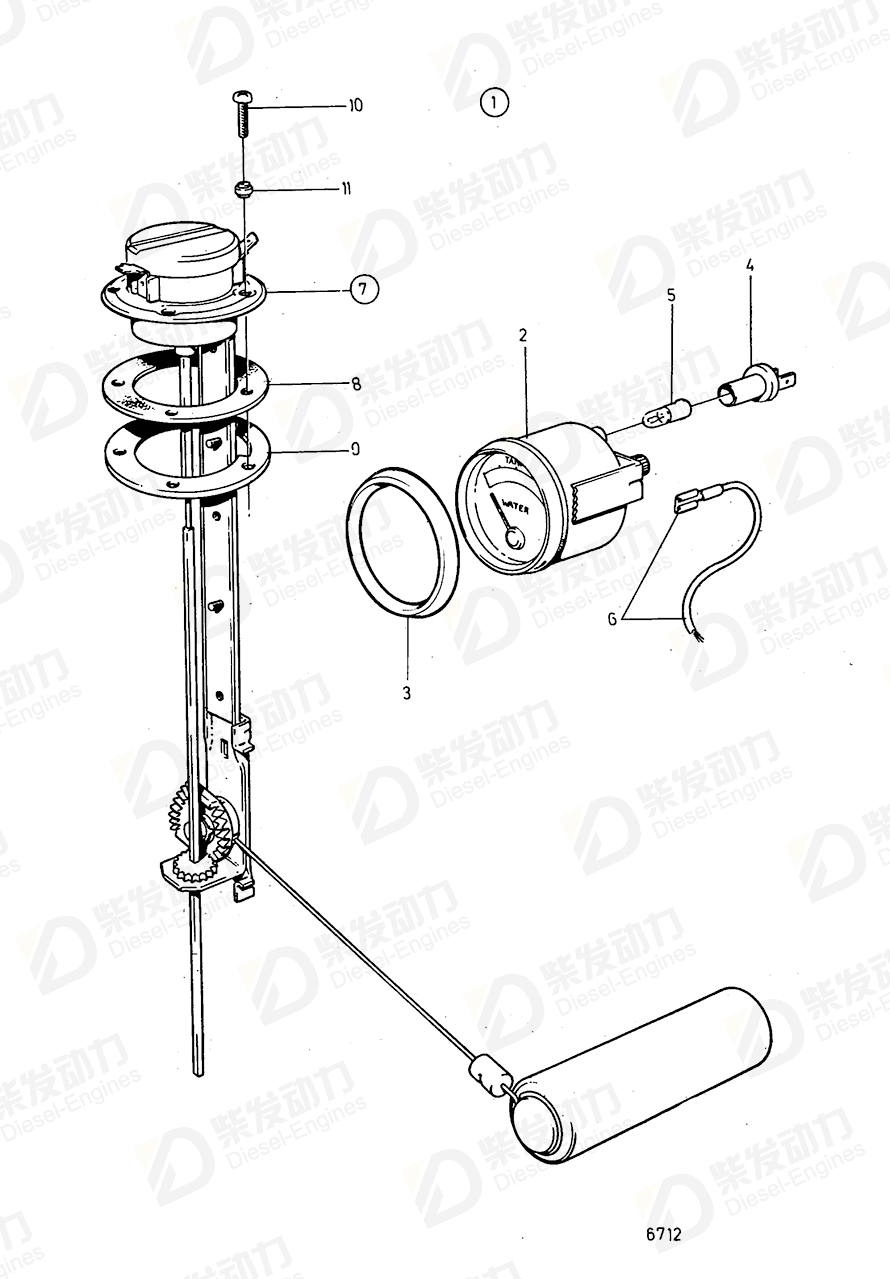

Flange 834480
| No. | Part Name | Part Number | Qty | Description |
| 2 | Level gauge | 863943 | 1 | (828636) |
| 3 | Front ring | 858643 | 1 | (828542) |
| 4 | Bulb socket | 808175 | 1 | |
| 5 | Bulb | 182059 | 1 | |
| 7 | Tank sensor | 834389 | 1 | |
| 8 | Gasket | 89865 | 1 | |
| 9 | Flange | 834480 | 1 | |
| 10 | Cross recessed screw | 956078 | 4 | L=16mm |
| 10 | Cross recessed screw | 956081 | 1 | L=25mm |
| 11 | Gasket | 834481 | 5 |
| Item | Part Name | Part No. |
| 9 | Flange 834480 | 834480 |
| Details | |
| Engine model | D70CHC, D70CRC, TD70CHC, TD70CRC |
| Application | Tank Meter Kit for Fuel and Drinking Water 24V: 828714 Tank Meter Kit for Fuel and Drinking Water 24V: 828715 Tank Meter Kit for Fuel and Drinking Water 24V: 828716 Tank Meter Kit for Fuel and Drinking Water 24V: 828717 |
