Flange 846402

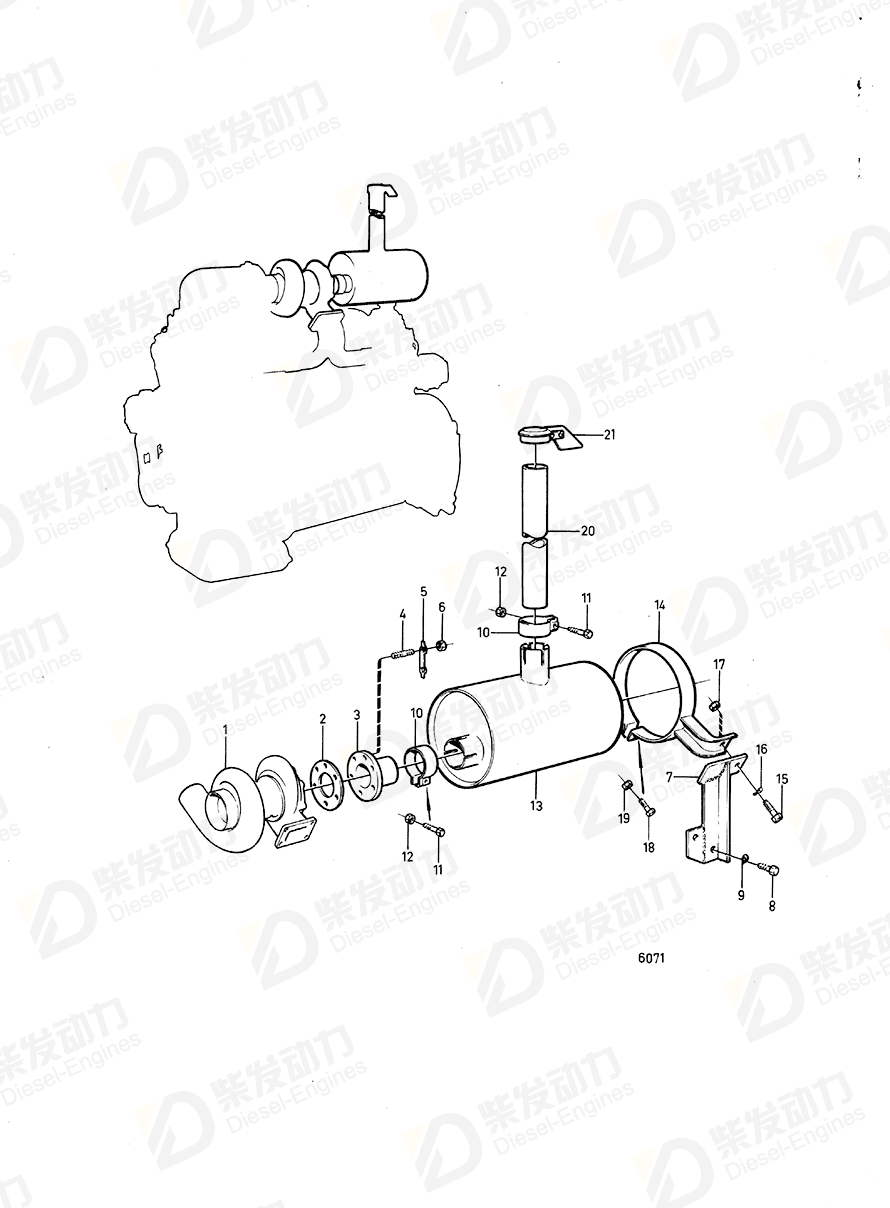

| No. | Part Name | Part Number | Qty | Description |
| 2 | Gasket | 411710 | 1 | |
| 3 | Flange | 846402 | 1 | |
| 4 | Stud | 953259 | 6 | |
| 5 | Tab washer | 15193 | 3 | |
| 6 | Nut | 943152 | 6 | |
| 7 | Support | 846398 | 1 | |
| 8 | Hexagon screw | 955589 | 2 | |
| 9 | Toothed washer | 955953 | 2 | |
| 10 | Clamp | 966861 | 2 | |
| 11 | Hexagon screw | 955320 | 2 | |
| 12 | Lock nut | 945654 | 2 | |
| 13 | Silencer | 476583 | 1 | |
| 14 | Bracket | 1575983 | 1 | |
| 15 | Hexagon screw | 955340 | 1 | |
| 16 | Washer | 955897 | 1 | |
| 17 | Lock nut | 946034 | 1 | |
| 18 | Hexagon screw | 955319 | 1 | |
| 19 | Lock nut | 945654 | 1 | |
| 20 | Exhaust pipe | 846406 | 1 | |
| 21 | Rain cap | 846410 | 1 |
| Item | Part Name | Part No. |
| 3 | Flange 846402 | 846402 |
| Details | |
| Engine model | TAD1230P TAD1230V, TWD1230VE, TWD1231VE TD100A TD120GG TD120HP-86 TD120HPP TD1210G TD121G-87 TD121GP-87 TID121KP TID121KP-87 TID121LP TID121LP-87 TWD1210P, TWD1211P TWD1210V, TWD1211V |
| Application | SILENCER AND INSTALLATION COMPONENTS Silencer and Installation Components, Power Pack Silencer and Installation Components, Power Pack: A Silencer and Installation Components, Power Pack: B Silencer and Installation Components, Power Pack: C Silencer and Installation Components, Power Pack: TD120GP-87 Silencer, Engine Mounted Silencer, Engine Mounted: A Silencer, Engine Mounted: B Silencer, Engine Mounted: C |
