Flange 846795

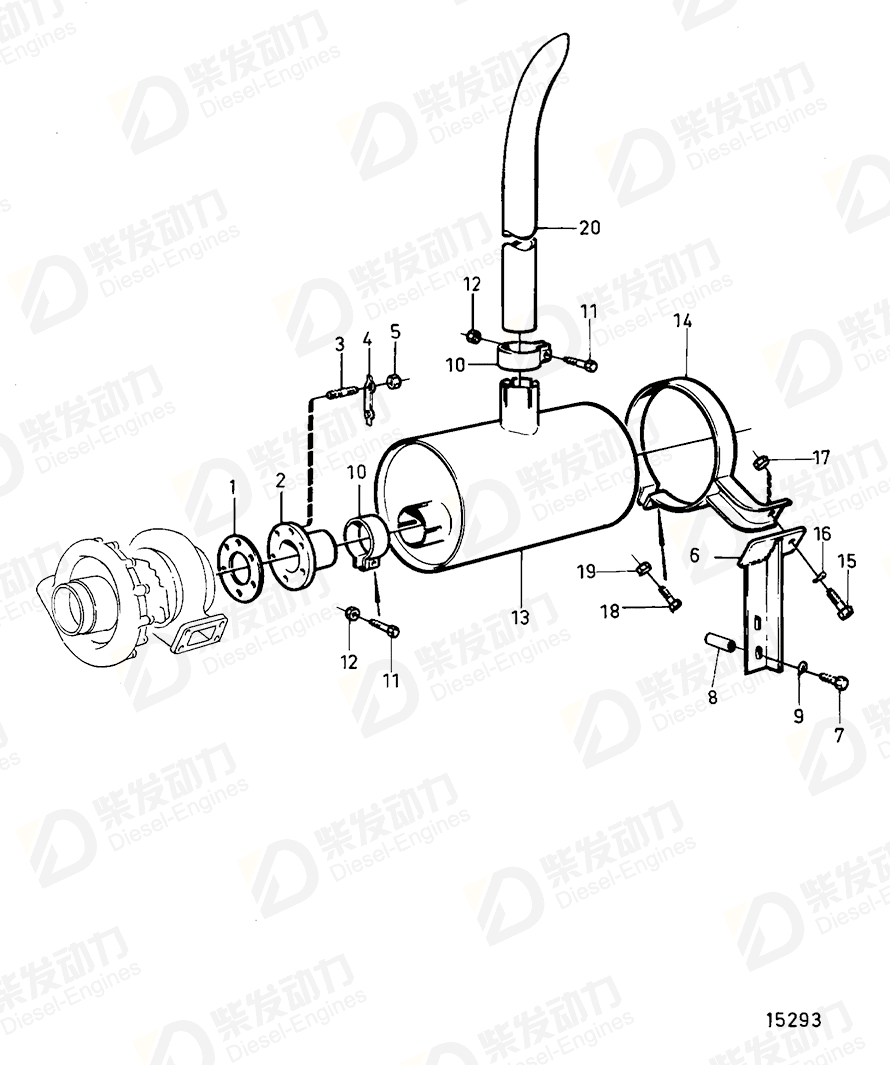

| No. | Part Name | Part Number | Qty | Description |
| 1 | Gasket | 862603 | 1 | |
| 2 | Flange | 846795 | 1 | |
| 3 | Stud | 924064 | 6 | |
| 4 | Tab washer | 949870 | 3 | |
| 5 | Hexagon nut | 946330 | 6 | |
| 6 | Bracket | 848153 | 1 | |
| 7 | Hexagon screw | 955567 | 2 | For governor 225-1200. |
| 8 | Spacer sleeve | 6872918 | 2 | |
| 9 | Spring washer | 940280 | 2 | |
| 10 | Clamp | 966861 | 2 | |
| 11 | Hexagon screw | 970950 | 2 | |
| 12 | Lock nut | 971083 | 2 | |
| 13 | Silencer | 848104 | 1 | |
| 14 | Bracket | 1575983 | 1 | |
| 15 | Hexagon screw | 970970 | 1 | |
| 16 | Washer | 955897 | 1 | |
| 17 | Lock nut | 971084 | 1 | Alt |
| 18 | Hexagon screw | 970949 | 1 | |
| 19 | Lock nut | 971083 | 1 | |
| 20 | Pipe | 849160 | 1 |
| Item | Part Name | Part No. |
| 2 | Flange 846795 | 846795 |
| Details | |
| Engine model | TAD1030V TD100G TD100G-85 TD100GG TD100HP-87 TD1010G, TWD1010G TID100K TID100KP-87 |
| Application | Silencer and Exhaust Pipe with Installation Components: A Silencer and Exhaust Pipe with Installation Components: B Silencer and Exhaust Pipe with Installation Components: C Silencer and Exhaust Pipe with Installation Components: D Silencer and Exhaust Pipe with Installation Components: TD100GGP87 Silencer, Engine Mounted |
