Flange lock nut 471622

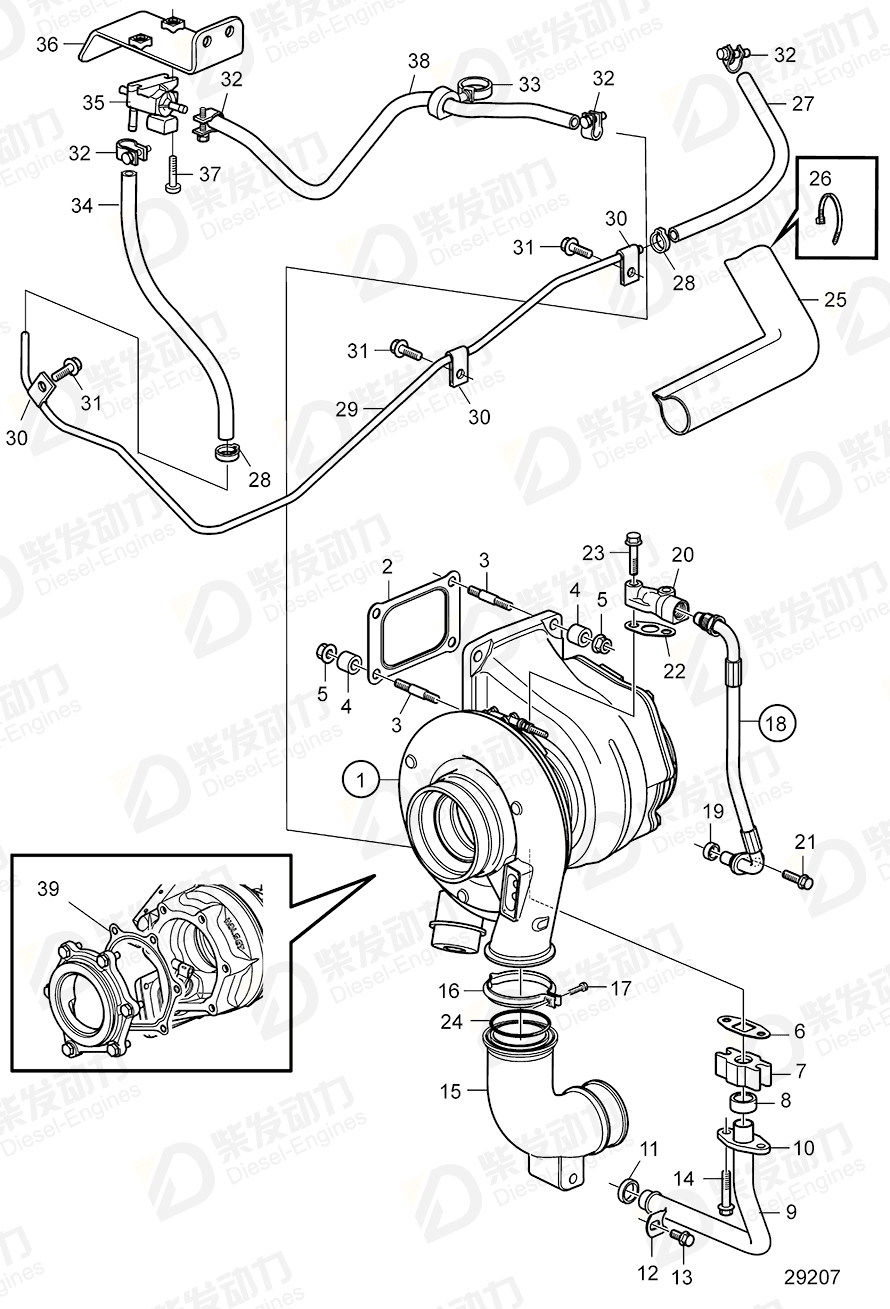

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3801266 | 1 | |
| 2 | Plane gasket | 20784537 | 1 | |
| 3 | Stud | 20579303 | 4 | (977299) |
| 4 | Spacer sleeve | 20573472 | 4 | |
| 5 | Flange lock nut | 471622 | 4 | |
| 6 | Plane gasket | 20707685 | 1 | |
| 7 | Connector | 8148729 | 1 | |
| 8 | Rubber moulding | 469601 | 1 | |
| 9 | Oil return pipe | 3886333 | 1 | |
| 10 | Pipe flange | 469543 | 1 | |
| 11 | Sealing ring | 1547255 | 1 | |
| 12 | Lock brace | 20844430 | 1 | |
| 13 | Flange screw | 946440 | 1 | |
| 14 | Flange screw | 947760 | 2 | M8x40mm |
| 15 | Charge air pipe | 11158475 | 1 | |
| 16 | V-clamp | 1676424 | 1 | |
| 17 | Flange screw | 965212 | 1 | |
| 18 | Oil pressure pipe | 3886331 | 1 | |
| 19 | Sealing ring | 1636309 | 1 | |
| 20 | Flange | 8192268 | 1 | |
| 21 | Flange screw | 949853 | 1 | |
| 22 | Gasket | 22206133 | 1 | |
| 23 | Flange screw | 946470 | 2 | |
| 24 | Sealing ring | 1675066 | 1 | |
| 25 | Tube | 20711293 | 1 | |
| 26 | Cable tie | 862832 | 1 | |
| 27 | Hose | 21109863 | 1 | |
| 28 | Hose clamp | 978402 | 2 | |
| 29 | Pipe | 21154124 | 1 | |
| 30 | Clamp | 942400 | 3 | |
| 31 | Flange screw | 984733 | 3 | |
| 32 | Hose clamp | 975269 | 4 | |
| 33 | Retainer | 21045811 | 1 | |
| 34 | Hose | 21109863 | 1 | |
| 35 | Solenoid valve | 3819161 | 1 | |
| 37 | Six point socket scr | 969407 | 2 | |
| 38 | Fuel hose | 1266870 | 1 | |
| 39 | Gasket | 23029715 | 1 | Included in Turbocharger |
| Item | Part Name | Part No. |
| 5 | Flange lock nut 471622 | 471622 |
| Details | |
| Engine model | TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE TAD1341GE, TAD1342GE, TAD1343GE, TAD1350GE, TAD1351GE, TAD1352GE, TAD1354GE, TAD1355GE TAD1344GE, TAD1345GE, TAD1353GE TAD1345VE TAD1350VE TAD1360VE TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1361VE TAD1363VE TAD730G TAD730P TAD730V TAD740GE, TAD741GE TAD940GE TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TAD941GE TAD950VE, TAD951VE, TAD952VE TD30A TD31ACE TD40A TD610G TD610M TD610V TD610V, TWD610V, TD630VE TD61A TD61ACE TD61AG TD61AP TD61AW TD630ME TD630VE TD640VE TD710G TD71A TD71A, TD71ACE TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V TD71AG TD71AP TD71AW TD730ME TD730ME, TWD730ME, TWD731ME TD730ME, TWD731ME TD730VE TD730VE, TWD731VE TID162AG, TID162AGP, TID162AP, TID162APB TID61AG TID71A TID71A, TWD710V TID71AG TID71AP TWD610G TWD610P TWD630ME TWD630VE TWD710G TWD710P TWD710P, TAD730P TWD730ME, TWD731ME TWD731ME TWD731VE TWD740GE TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Exhaust Manifold and Installation Components Exhaust Manifold and Installation Components,low Mounted Turbocharger Exhaust Manifold and Installation Parts Exhaust Manifold, Low Mounted Turbocharger Heat Shield for Exhaust Manifold and Turbo Inlet and Exhaust Manifold Starter Motor Turbo and Installation Components Turbocharger Turbocharger and Installation Comp.: A Turbocharger and Installation Comp.: TD61APB Turbocharger and Installation Components Turbocharger and Installation Components,low Mounted Turbocharger and Installation Components: A Turbocharger and Installation Components: B Turbocharger with Installation Components Turbocharger, Low Mounted Turbocharger, Low Mounted. Exhaust forward. Turbocharger, Low Mounted. Exhaust Rear. Turbocharger, Low Mounted: A Turbocharger, Low Mounted: B Turbocharger. High Mounted. Exhaust forward. Turbocharger. High Mounted. Exhaust Rear. Turbocharger: A Turbocharger: B Turbocharger: C |
| Specification | |
| Descriptions | Later prod |
