Flange lock nut 8194568

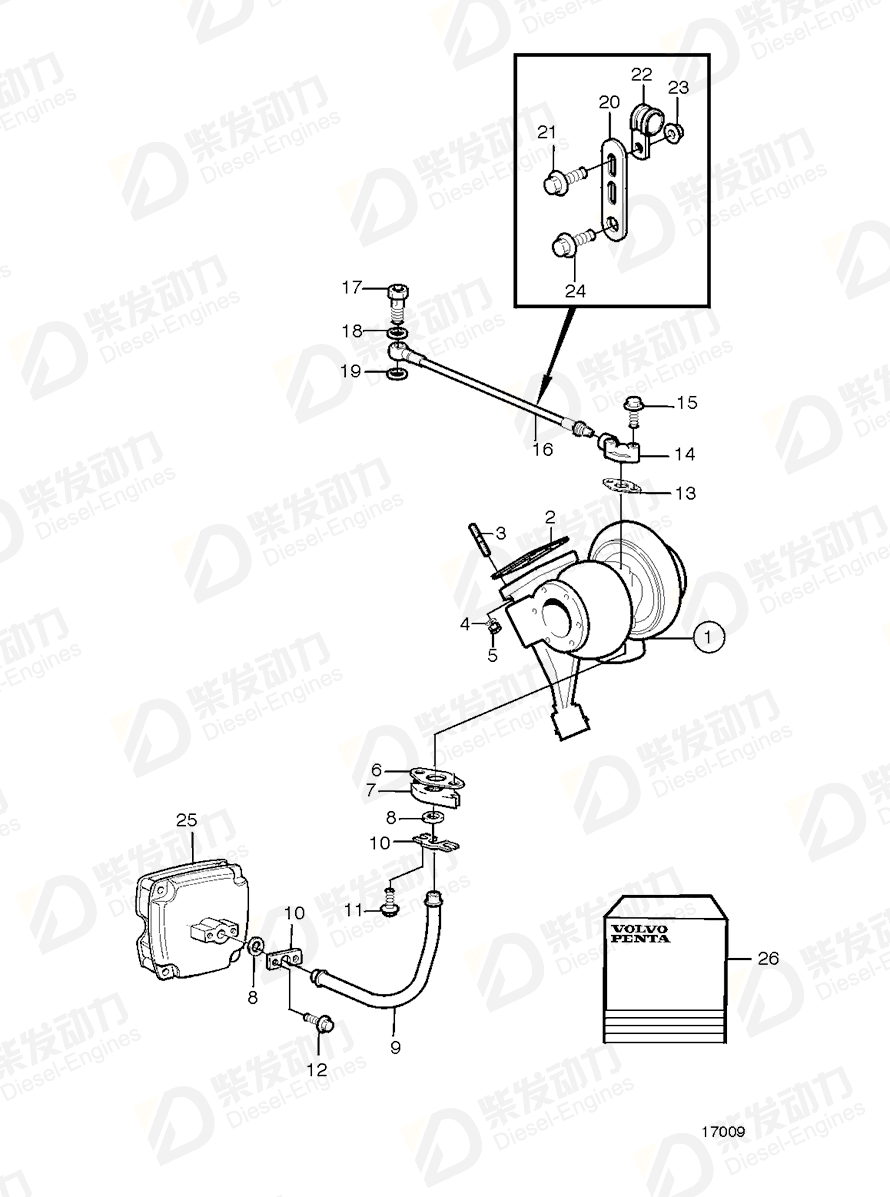

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802107 | 1 | (425677) |
| 2 | Gasket | 8194365 | 1 | |
| 3 | Stud | 8194545 | 4 | |
| 4 | Washer | 940097 | 4 | |
| 5 | Flange lock nut | 8194568 | 4 | |
| 6 | Plane gasket | 420643 | 1 | |
| 7 | Connector | 8148729 | 1 | |
| 8 | Rubber moulding | 471626 | 2 | |
| 9 | Oil return pipe | 425826 | 1 | Turbo-valve cover. |
| 10 | Flange | 425407 | 2 | |
| 11 | Flange screw | 946470 | 2 | |
| 12 | Flange screw | 942402 | 2 | |
| 13 | Plane gasket | 420641 | 1 | |
| 14 | Flange | 8192268 | 1 | |
| 15 | Flange screw | 946470 | 2 | |
| 16 | Pressure hose | 425955 | 1 | Turbo-cylinder block. |
| 17 | Hollow screw | 479464 | 1 | |
| 18 | Gasket | 11998 | 1 | |
| 19 | Gasket | 942703 | 1 | |
| 20 | Bracket | 965534 | 1 | |
| 20 | Bracket | 965535 | 1 | When double sheated fuel pipes not are mounted. |
| 20 | Bracket | 965540 | 1 | |
| 21 | Flange screw | 946544 | 2 | For THD102KB and THD102KD. |
| 22 | Clamp | 952626 | 2 | |
| 23 | Flange nut | 945407 | 2 | For THD102KB and THD102KD. |
| 24 | Flange screw | 942402 | 1 |
| Item | Part Name | Part No. |
| 5 | Flange lock nut 8194568 | 8194568 |
| Details | |
| Engine model | DH10A TAD1030G TAD1030GE, TAD1031GE TAD1031GE TAD1032GE TAD1230G, TAD1231GE, TAD1232GE TAD1230P TD1010G TD121GP-87 THD102KB THD102KD TWD1010G TWD1210P, TWD1211P, TWD1211G TWD1230ME |
| Application | Turbo, High Mounted SN-2120147401 Turbo, High Mounted SN2120147402- Turbo, High Mounted SNXXXXXXXXXX/147402-, SN-XXXXXXXXXX/238056 Turbo, High Mounted, SNXXXXXXXXXX/238057-: A Turbo, High Mounted, SNXXXXXXXXXX/238057-: B Turbocharger Turbocharger, High Mounted Turbocharger, Low mounted Turbocharger: A Turbocharger: B Turbocharger: C |
| Specification | |
| Descriptions | (191894) |
