Flange nut 1543499

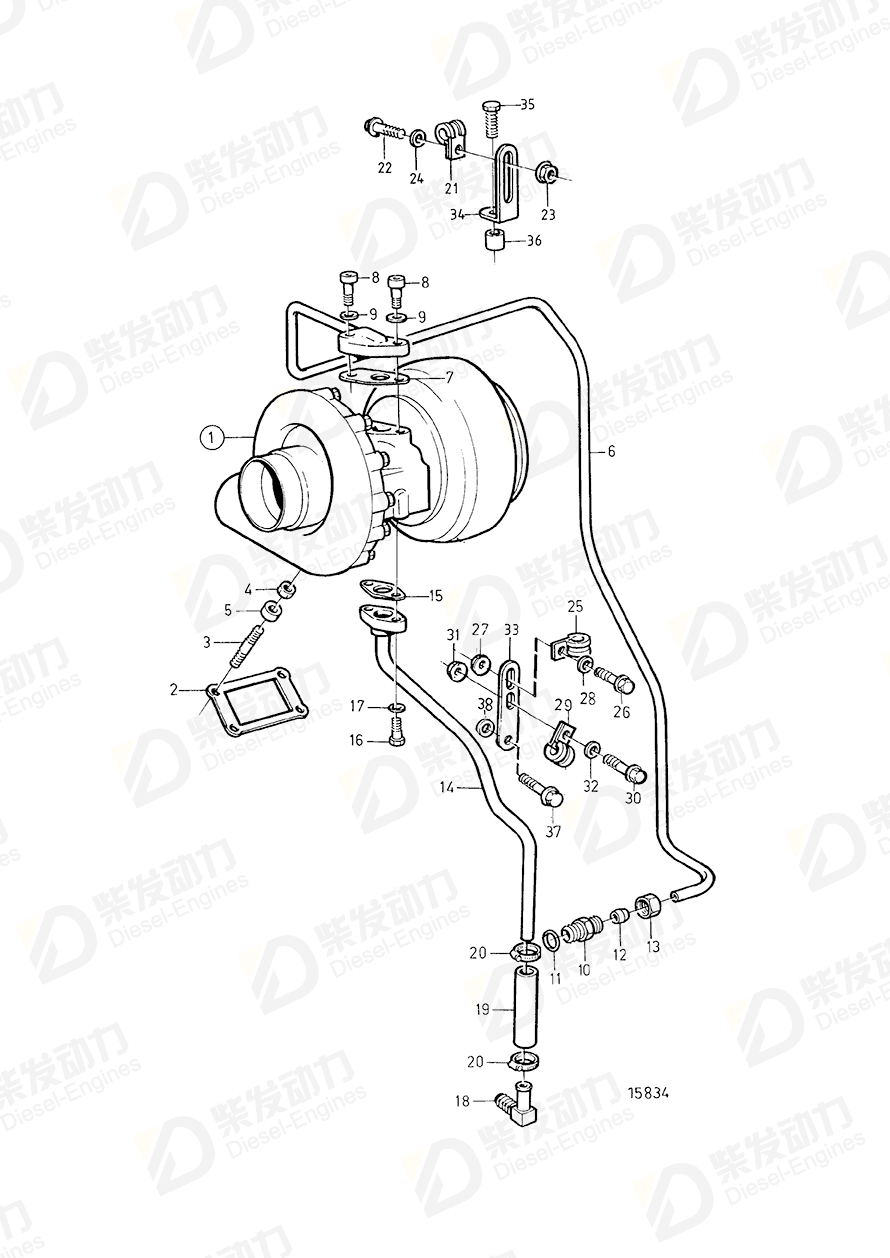

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802055 | 1 | (849948) |
| 1 | Turbocharger | 3802094 | 1 | TWD1630G, (866665) |
| 2 | Gasket | 864859 | 1 | |
| 3 | Stud | 977298 | 4 | |
| 4 | Flange nut | 1543499 | 4 | |
| 5 | Spacer sleeve | 470467 | 4 | |
| 6 | Oil pressure pipe | 849206 | 1 | Only together with radiation shield 3825607., Repl by 3826719 |
| 6 | Oil pressure pipe | 3826719 | 1 | |
| 7 | Gasket | 22206133 | 1 | |
| 8 | Hex. socket screw | 959238 | 1 | |
| 8 | Hex. socket screw | 959239 | 1 | L=30mm |
| 9 | Washer | 955895 | 2 | |
| 10 | Nipple | 941330 | 1 | |
| 11 | Gasket | 11998 | 1 | |
| 12 | Ferrule | 980782 | 1 | For DH10A and THD102KD. |
| 13 | Fitting nut | 941331 | 1 | |
| 14 | Oil return pipe | 849207 | 1 | |
| 15 | Gasket | 1543360 | 1 | |
| 16 | Hexagon screw | 970947 | 2 | M10X25 |
| 17 | Spring washer | 941908 | 2 | |
| 18 | Elbow nipple | 479959 | 1 | |
| 19 | Hose | 466328 | 1 | |
| 20 | Hose clamp | 943473 | 2 | |
| 21 | Clamp | 952626 | 1 | |
| 22 | Flange screw | 946544 | 1 | For THD102KB and THD102KD. |
| 23 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 24 | Washer | 955892 | 1 | |
| 25 | Clamp | 952626 | 1 | |
| 26 | Flange screw | 946544 | 1 | For THD102KB and THD102KD. |
| 27 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 28 | Washer | 955892 | 1 | |
| 29 | Clamp | 952631 | 1 | |
| 30 | Flange screw | 946544 | 1 | For THD102KB and THD102KD. |
| 31 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 32 | Washer | 955892 | 1 | |
| 33 | Bracket | 965540 | 1 | |
| 34 | Bracket | 965555 | 1 | 1x9x60 |
| 35 | Hexagon screw | 100223 | 1 | |
| 36 | Spacer washer | 946048 | 1 | |
| 38 | Washer | 961169 | 1 |
| Item | Part Name | Part No. |
| 4 | Flange nut 1543499 | 1543499 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE TAD1240GE TAD1241GE, TAD1242GE TAD1241VE, TAD1242VE TAD1250VE, TAD1251VE, TAD1252VE TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE TAD1630G, TAD1630GE TAD1630P TAD1630V TAD1631G, TAD1631GE TAD1640GE TAD1641GE, TAD1642GE TAD1641VE, TAD1642VE TAD1643VE TAD1650GE, TAD1651GE TAD1650VE TAD1650VE-B, TAD1651VE TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1670VE, TAD1671VE, TAD1672VE TAD540VE, TAD541VE, TAD542VE, TAD550VE, TAD551VE, TAD552VE TAD570VE, TAD571VE, TAD572VE TAD840VE, TAD841VE, TAD842VE, TAD843VE, TAD851VE, TAD852VE, TAD853VE TAD870VE, TAD871VE, TAD872VE, TAD873VE TAD950VE, TAD951VE, TAD952VE TD164KAE TID162AG, TID162AGP, TID162AP, TID162APB TWD1240VE TWD1620G TWD1620G, TWD1630G TWD1630G TWD1630P TWD1630V |
| Application | Exhaust Manifold and Turbocharger. Exhaust Manifold and Turbocharger. High Outlet. Exhaust Manifold and Turbocharger. Low Outlet. Injectors, Pressure Pipes and Leak-off Line Injectors, Pressure Pipes and Leak-off Line: A Injectors, Pressure Pipes and Leak-off Line: B Injectors, Pressure Pipes and Leak-off Line: SN 2160018925- Injectors, Pressure Pipes and Leak-off Line: SN 2160023749- Injectors, Pressure Pipes and Leak-off Line: SN-2160018924 Injectors, Pressure Pipes and Leak-off Line: SN-2160023748 Starter Motor Turbocharger Turbocharger SN-2013598365 Turbocharger SN-2016098146 Turbocharger SN2013598366- Turbocharger, High Mounted Turbocharger, Low Mounted Turbocharger. High Mounted. Exhaust forward. Turbocharger: A Turbocharger: B |
| Specification | |
| Descriptions | (471622) |
