Flange screw 1547419

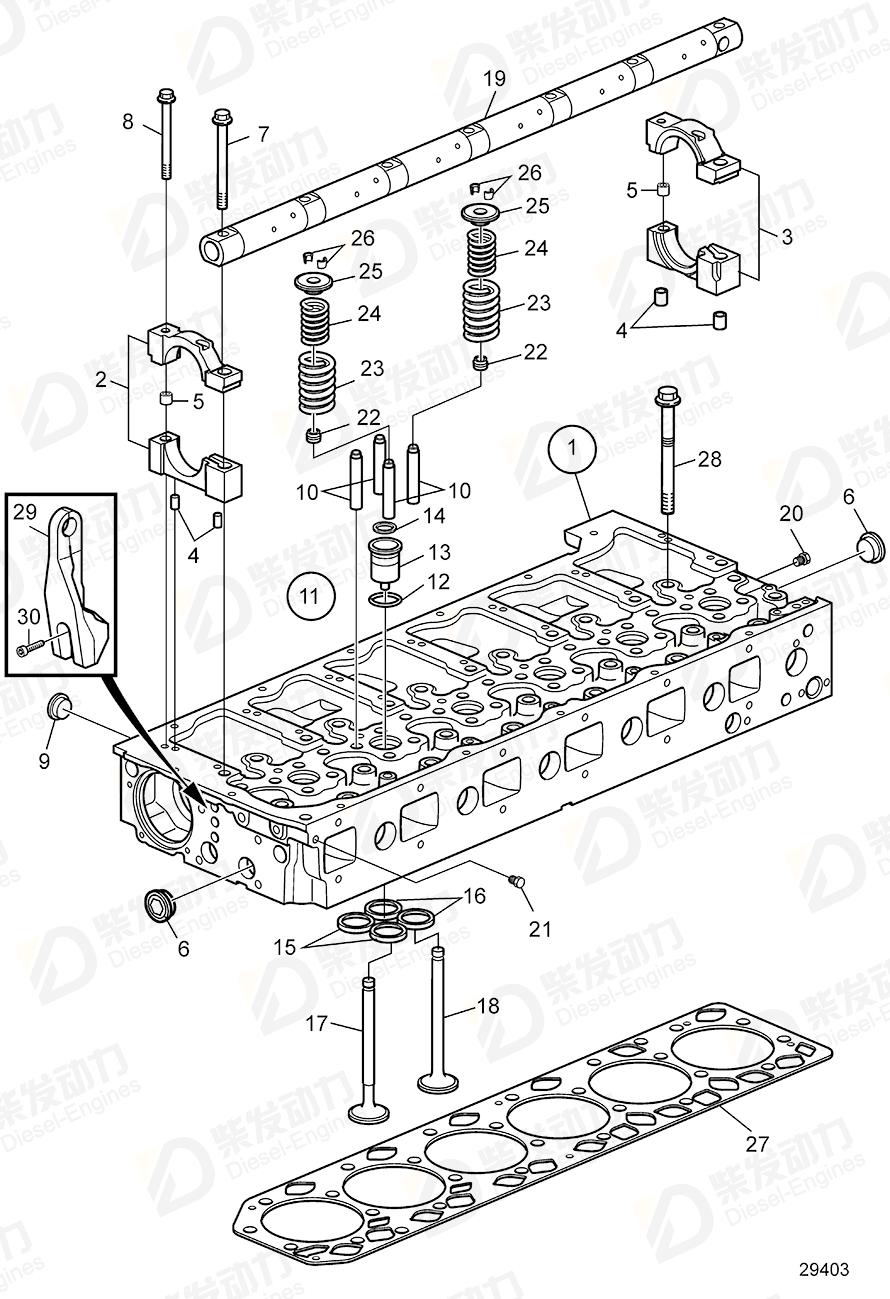

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head, exch | 3801389 | 1 | Replaced by 3801427 |
| 1 | Cylinder head | 3801427 | 1 | SN-7009179376 |
| 1 | Cylinder head, exch | 3801566 | 1 | SN7009179377- |
| 1 | Cylinder head, exch | 3803841 | 1 | Replaced by 3801439 |
| 1 | Cylinder head kit | 21595555 | 1 | SN-7009179376 |
| 1 | Cylinder head kit | 22234172 | 1 | SN7009179377- |
| 2 | Bearing housing | 3161079 | 6 | |
| 3 | Bearing housing | 3161082 | 1 | |
| 4 | Pin | 950542 | 1 | |
| 5 | Bearing housing | 3161082 | 1 | |
| 6 | Expansion plug | 8131706 | 5 | |
| 7 | Flange screw | 20412482 | 7 | M14x123mm |
| 8 | Flange screw | 975105 | 7 | M10x100mm |
| 9 | Cap plug | 8131707 | 11 | |
| 10 | Valve guide | 3183283 | 24 | |
| 11 | Injector sleeve | 21351717 | 6 | |
| 11 | Copper sleeve kit | 85104134 | 6 | (85104134) |
| 12 | O-ring | 20536487 | 1 | |
| 14 | Washer | 21261987 | 1 | |
| 15 | Valve seat, intake | 20459643 | 12 | |
| 16 | Valve seat, exhaust | 20459745 | 12 | Replaced by 20574175 |
| 16 | Valve seat, exhaust | 20574175 | 12 | |
| 17 | Inlet valve | 20450002 | 12 | 1-groove |
| 17 | Inlet valve | 20528113 | 12 | 3-groove |
| 18 | Exhaust valve | 3809943 | 12 | 1-groove. replaced by valve 3817672, 2 pcs valve cotter 20510747 and 1 pc valve spring washer 20510743 |
| 18 | Exhaust valve | 3817672 | 12 | 3-groove, Replaced by 3842972 |
| 18 | Exhaust valve | 3842972 | 12 | |
| 19 | Rocker arm shaft | 8148088 | 1 | SN-1009167423 |
| 19 | Rocker arm shaft | 20715792 | 1 | SN1009167424- |
| 20 | Plug | 968062 | 2 | |
| 21 | Plug | 968060 | 1 | |
| 22 | Valve stem seal | 859171 | 24 | Included in cylinder head exch |
| 23 | Valve spring | 21310068 | 24 | |
| 24 | Valve spring | 3183211 | 24 | |
| 25 | Valve spring washer | 20464946 | 24 | 1-groove |
| 25 | Valve spring washer | 20510743 | 24 | |
| 26 | Valve cotter | 1677875 | 48 | |
| 26 | Valve cotter | 20510747 | 48 | |
| 27 | Cylinder head gasket | 20495935 | 1 | |
| 28 | Flange screw | 1547419 | 26 | |
| 30 | Hex. socket screw | 966789 | 3 |
| Item | Part Name | Part No. |
| 28 | Flange screw 1547419 | 1547419 |
| Details | |
| Engine model | TAD1241VE, TAD1242VE TAD1250VE, TAD1251VE, TAD1252VE TAD941GE |
| Application | Cylinder Head |
Related Products
Tags: Flange screw, Volvo Penta, 1547419
