Flange screw 20460123

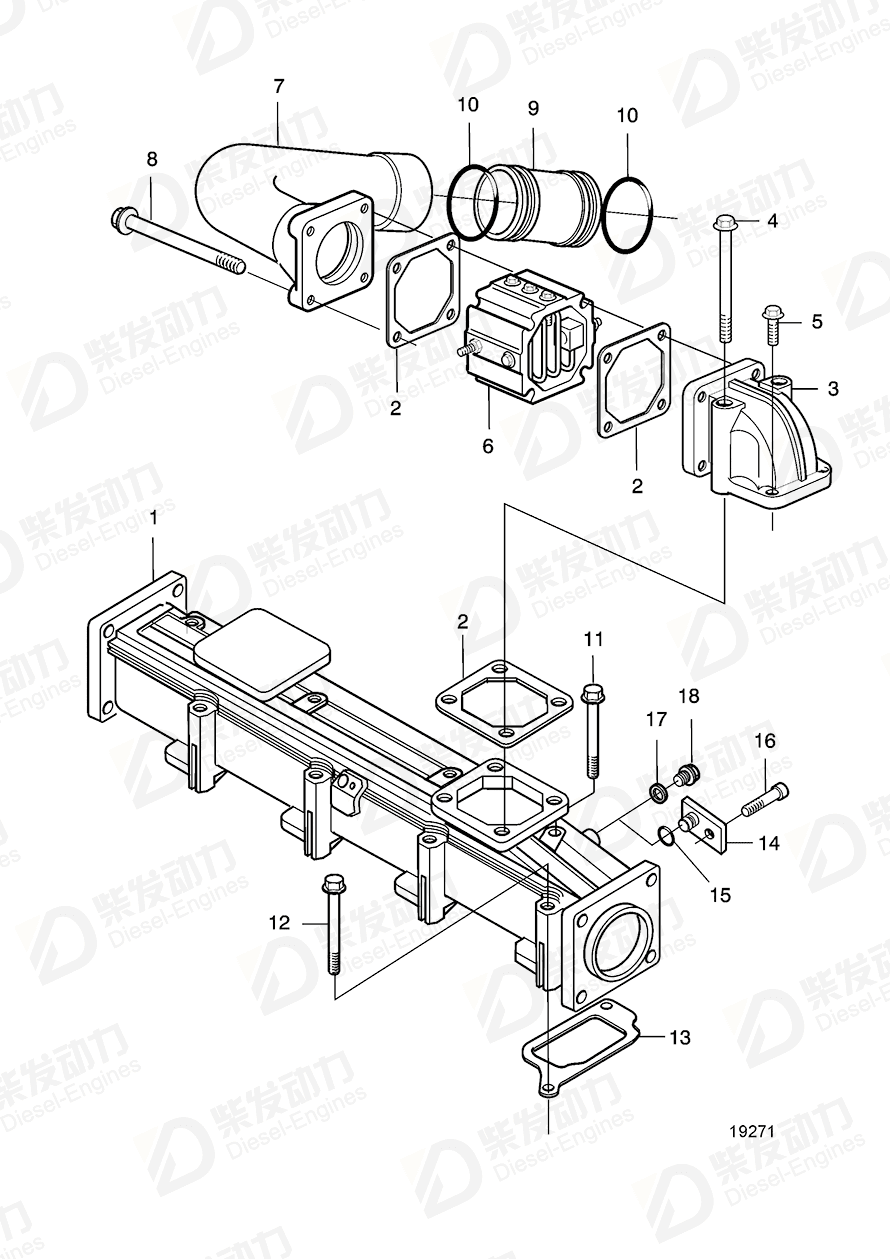

| No. | Part Name | Part Number | Qty | Description |
| 1 | Charge air pipe | 20511914 | 1 | |
| 1 | Charge air pipe | 21074874 | 1 | SN01099409-, Replaced by 21269344. |
| 1 | Charge air pipe | 21269344 | 1 | Replaced by 21359985. |
| 1 | Charge air pipe | 21359985 | 1 | SN00805729- |
| 2 | Gasket | 20531832 | 3 | |
| 3 | Elbow | 20459938 | 1 | |
| 3 | Elbow | 20512169 | 1 | |
| 4 | Flange screw | 20460124 | 2 | |
| 5 | Flange screw | 984736 | 2 | |
| 6 | Air pre-heater | 20511112 | 1 | 12V |
| 6 | Heater, 12V | 20532254 | 1 | |
| 7 | Elbow | 20572780 | 1 | |
| 8 | Flange screw | 20460123 | 4 | SN01099384- |
| 8 | Screw | 20502324 | 4 | SN-01099383 |
| 9 | Tube | 20405616 | 1 | |
| 10 | Sealing ring | 20405536 | 2 | |
| 11 | Flange screw | 20412601 | 4 | |
| 12 | Flange screw | 20459830 | 4 | |
| 13 | Gasket | 20496556 | 4 | |
| 13 | Gasket | 20555515 | 4 | |
| 14 | Plug | 20459910 | 1 | |
| 15 | Sealing ring | 20459909 | 1 | |
| 16 | Hex. socket screw | 20450694 | 1 | |
| 17 | Gasket | 969011 | 1 | |
| 18 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 18 | Plug | 20479599 | 1 |
| Item | Part Name | Part No. |
| 8 | Flange screw 20460123 | 20460123 |
| Details | |
| Engine model | TAD420VE TAD620VE TD420VE |
| Application | Inlet Manifold Inlet Manifold. High Mounted Turbo Inlet Manifold. High Mounted Turbo. Exhaust Outlet Front |
| Specification | |
| Descriptions | SN01099384- |
